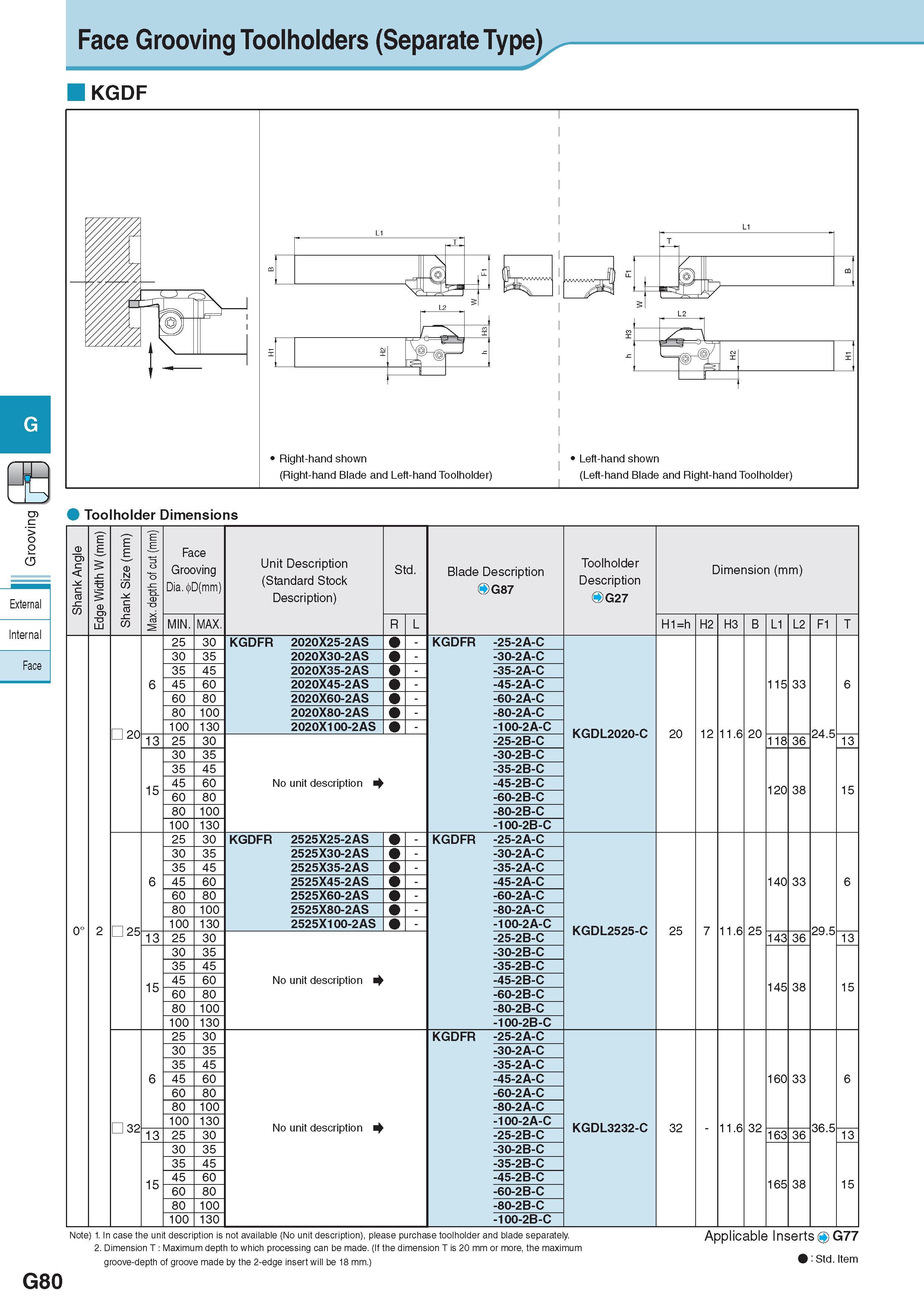

Face Grooving Toolholders (Separate Type) KGDF > o o <5 External Internal Face 20 .c S 25 32 Max. depth of cut (mm) Face Grooving Dia. D(mm) Unit Description Обозначение (Standard Stock Description) Std. Blade Description Обозначение OG87 Toolholder Description Обозначение OG27 Dimension (mm) Размеры в мм MIN. MAX. R L H1=h H2 H3 B L1 L2 F1 T 25 30 KGDFR 2020X25-2AS - KGDFR -25-2A-C 30 35 2020X30-2AS - -30-2A-C 35 45 2020X35-2AS - -35-2A-C 6 45 60 2020X45-2AS - -45-2A-C 115 33 6 60 80 2020X60-2AS - -60-2A-C 80 100 2020X80-2AS - -80-2A-C 100 130 2020X100-2AS - -100-2A-C KGDL2020-C 20 12 11.6 20 24.5 13 25 30 -25-2B-C 118 36 13 30 35 -30-2B-C 35 45 -35-2B-C 15 45 60 No unit description -45-2B-C 120 38 15 60 80 -60-2B-C 80 100 -80-2B-C 100 130 -100-2B-C 25 30 KGDFR 2525X25-2AS - KGDFR -25-2A-C 30 35 2525X30-2AS - -30-2A-C 35 45 2525X35-2AS - -35-2A-C 6 45 60 2525X45-2AS - -45-2A-C 140 33 6 60 80 2525X60-2AS - -60-2A-C 80 100 2525X80-2AS - -80-2A-C 100 130 2525X100-2AS - -100-2A-C KGDL2525-C 25 7 11.6 25 29.5 13 25 30 -25-2B-C 143 36 13 30 35 -30-2B-C 35 45 -35-2B-C 15 45 60 No unit description -45-2B-C 145 38 15 60 80 -60-2B-C 80 100 -80-2B-C 100 130 -100-2B-C 25 30 KGDFR -25-2A-C 30 35 -30-2A-C 35 45 -35-2A-C 6 45 60 -45-2A-C 160 33 6 60 80 -60-2A-C 80 100 -80-2A-C 100 130 No unit description -100-2A-C KGDL3232-C 32 11.6 32 36.5 13 25 30 -25-2B-C 163 36 13 30 35 -30-2B-C 35 45 -35-2B-C 15 45 60 -45-2B-C 165 38 15 60 80 -60-2B-C 80 100 -80-2B-C 100 130 -100-2B-C Note) 1. In case the unit description is not available (No unit description), please purchase toolholder and blade separately. 2. Dimension T : Maximum depth to which processing can be made. (If the dimension T is 20 mm or more, the maximum groove-depth of groove made by the 2-edge insert will be 18 mm.) Applicable Inserts O G77 : Std. Item Стандартная позиция G80 2
