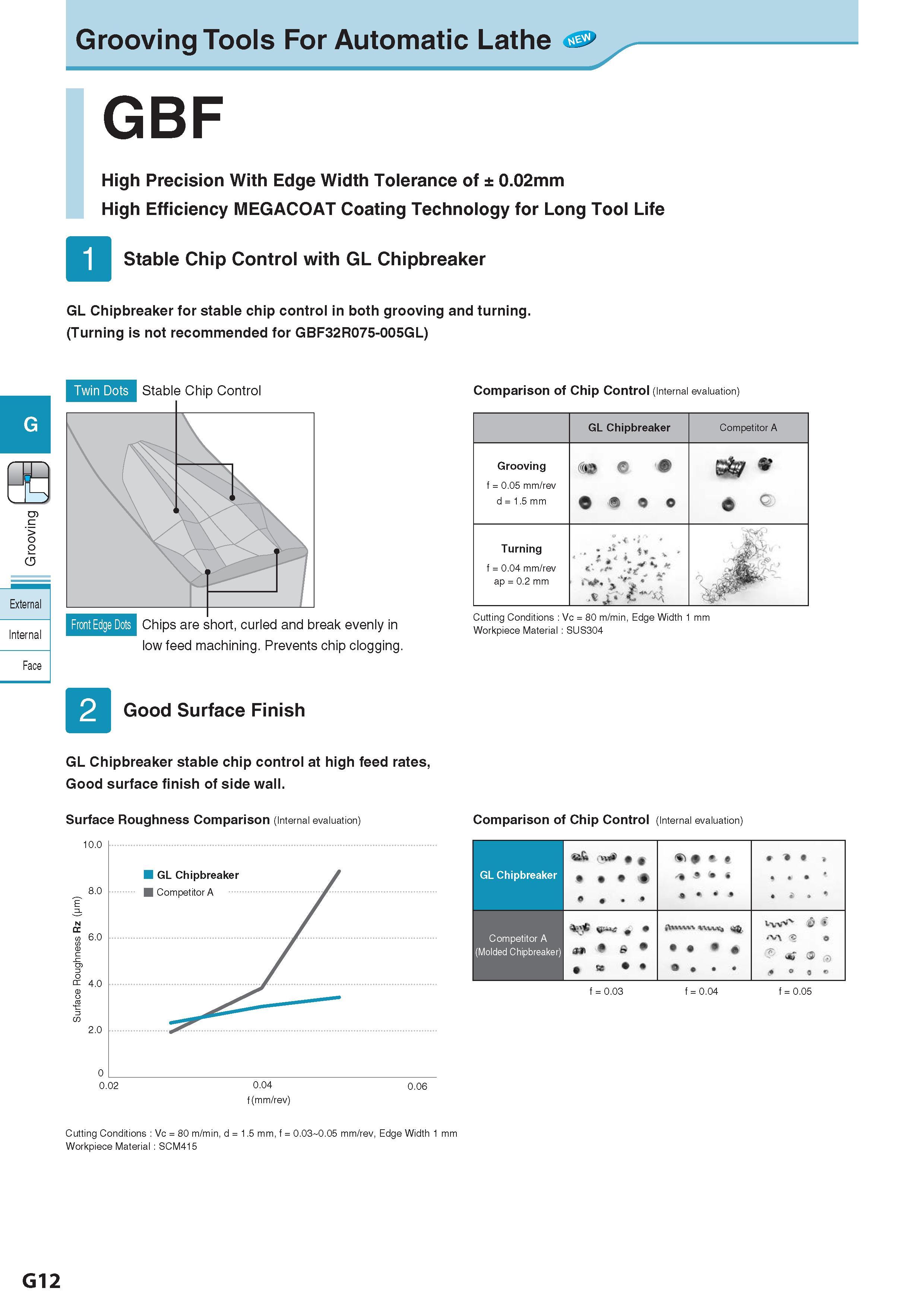

Grooving Tools For Automatic Lathe GBF High Precision With Edge Width Tolerance of ± 0.02mm High Efficiency MEGACOAT Coating Technology for Long Tool Life Stable Chip Control with GL Chipbreaker Стружколом сменной пластины GL Chipbreaker Стружколом сменной пластины for stable chip control in both grooving and turning. (Turning is not recommended for GBF32R075-005GL) Twin Dots Stable Chip Control Comparison of Chip Control (Internal evaluation) Good Surface Finish Grooving f = 0.05 mm/rev d = 1.5 mm Turning f = 0.04 mm/rev ap = 0.2 mm Cutting Conditions : Vc = 80 m/min, Edge Width 1 mm Workpiece Material Обрабатываемый материал : SUS304 GL Chipbreaker Стружколом сменной пластины stable chip control at high feed rates, Good surface finish of side wall. Surface Roughness Comparison (Internal evaluation) 10.0 ....................................................................... m N QC a= 4.0 2.0 Comparison of Chip Control (Internal evaluation) GL Chipbreaker Стружколом сменной пластины Competitor A (Molded Chipbreaker) f = 0.03 f = 0.04 f = 0.05 0 0.02 0.04 f(mm/rev) 0.06 Cutting Conditions : Vc = 80 m/min, d = 1.5 mm, f = 0.03 0.05 mm/rev, Edge Width 1 mm Workpiece Material Обрабатываемый материал : SCM415 G12
