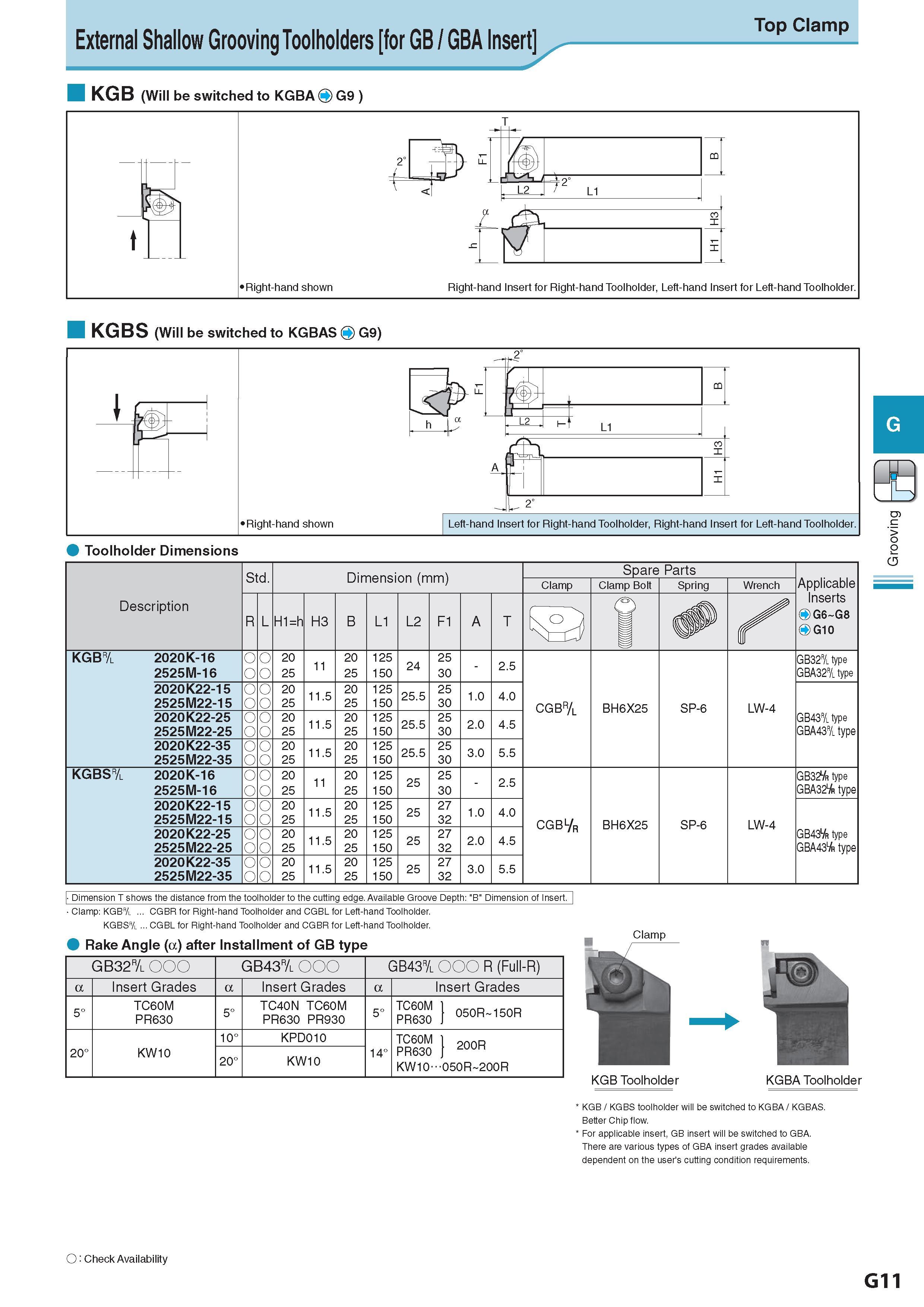

External Shallow Grooving Toolholders for GB / GBA Insert Top Clamp KGB (Will be switched to KGBA O G9 ) KGBS (Will be switched to KGBAS G9) rj Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Spare Parts Applicable Inserts OG6 G8 OG10 Clamp Clamp Bolt Spring Wrench R L H1=h H3 B L1 L2 F1 A T s KGB& 2020K-16 2525M-16 20 25 11 20 25 125 150 24 25 30 - 2.5 CGB& BH6X25 SP-6 LW-4 GB32& type GBA32& type 2020K22-15 2525M22-15 20 25 11.5 20 25 125 150 25.5 25 30 1.0 4.0 GB43& type GBA43& type 2020K22-25 2525M22-25 20 25 11.5 20 25 125 150 25.5 25 30 2.0 4.5 2020K22-35 2525M22-35 20 25 11.5 20 25 125 150 25.5 25 30 3.0 5.5 KGBS& 2020K-16 2525M-16 20 25 11 20 25 125 150 25 25 30 - 2.5 cgbl/r BH6X25 SP-6 LW-4 GB3 r type GBA32% type 2020K22-15 2525M22-15 20 25 11.5 20 25 125 150 25 27 32 1.0 4.0 GB43% type GBA43bfe type 2020K22-25 2525M22-25 20 25 11.5 20 25 125 150 25 27 32 2.0 4.5 2020K22-35 2525M22-35 20 25 11.5 20 25 125 150 25 27 32 3.0 5.5 - Dimension T shows the distance from the toolholder to the cutting edge. Available Groove Depth: "B" Dimension of Insert. Clamp: KGB& ... CGBR for Right-hand Toolholder and CGBL for Left-hand Toolholder. KGBS& ... CGBL for Right-hand Toolholder and CGBR for Left-hand Toolholder. Rake Angle (a) after Installment of GB type GB32& OOO GB43& OOO GB43r/l OOO R (Full-R) a Insert Grades a Insert Grades a Insert Grades 5° TC60M PR630 5° TC40N TC60M PR630 PR930 5° TC60M PR630 050R-150R 20° KW10 10° KPD010 14° TC60M PR630 KW10- 200R 050R-200R 20° KW10 damn KGB Toolholder KGBA Toolholder KGB / KGBS toolholder will be switched to KGBA / KGBAS. Better Chip flow. For applicable insert, GB insert will be switched to GBA. There are various types of GBA insert grades available dependent on the user's cutting condition requirements. O: Check Availability G11 Grooving
