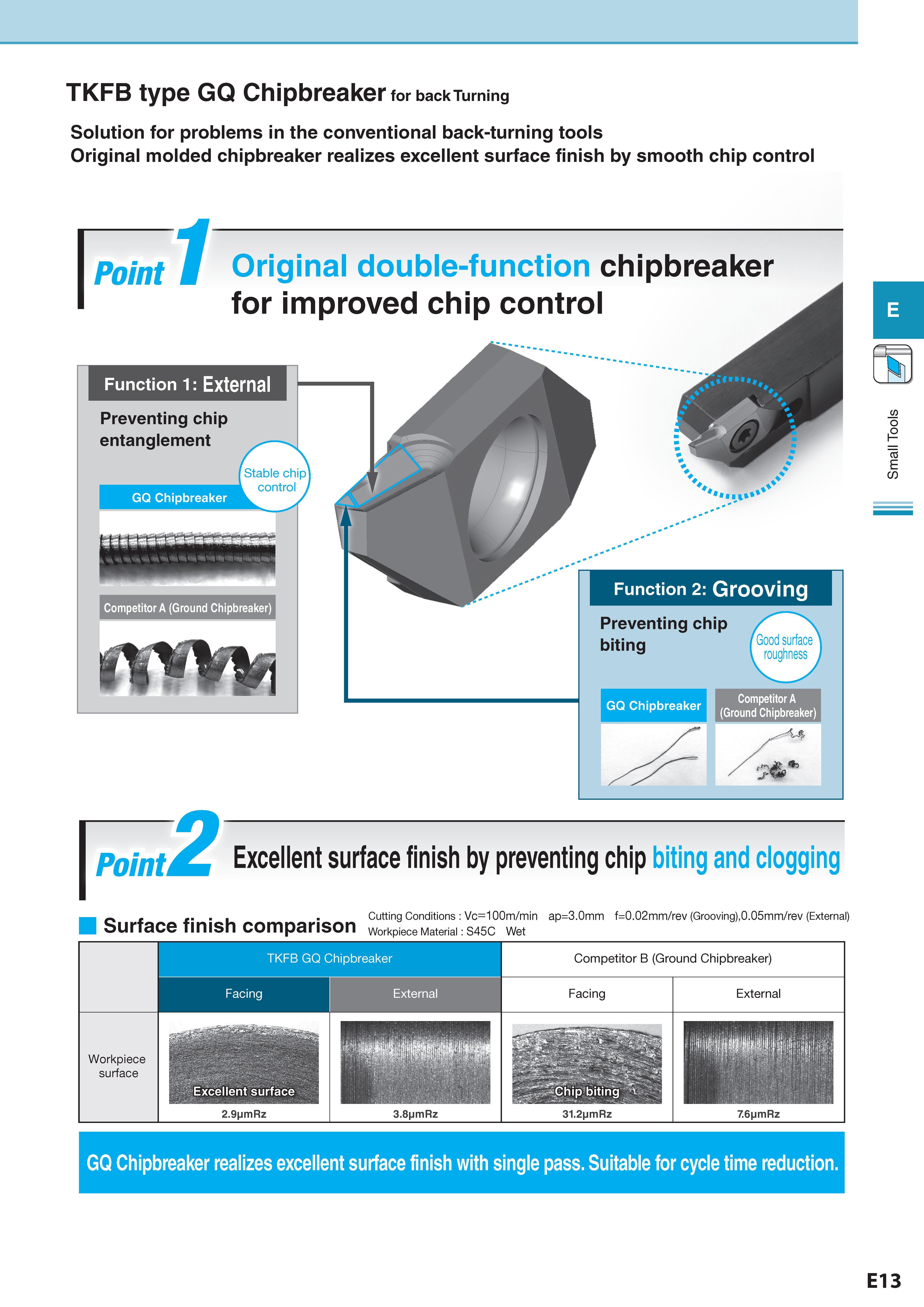

TKFB type GQ Chipbreaker Стружколом сменной пластины for back Turning Solution for problems in the conventional back-turning tools Original molded chipbreaker realizes excellent surface finish by smooth chip control Point Original double-function chipbreaker for improved chip control Function 1: External Preventing chip entanglement 2 Point Excellent surface finish by preventing chip biting and clogging . . Cutting Conditions : Vc=100m/min ap=3.0mm f=0.02mm/rev (Grooving),0.05mm/rev (External) Surface finish comparison Workpiece Material Обрабатываемый материал : S45C Wet TKFB GQ Chipbreaker Стружколом сменной пластины Competitor B (Ground Chipbreaker) Facing External Facing External Workpiece surface . . ; -Excellent surface l ' ' 1 1 1 am 1 1 2.9 jmRz 3.8 jmRz 31.2 jmRz 7.6pmRz GQ Chipbreaker Стружколом сменной пластины realizes excellent surface finish with single pass. Suitable for cycle time reduction. E13 Small Tools
