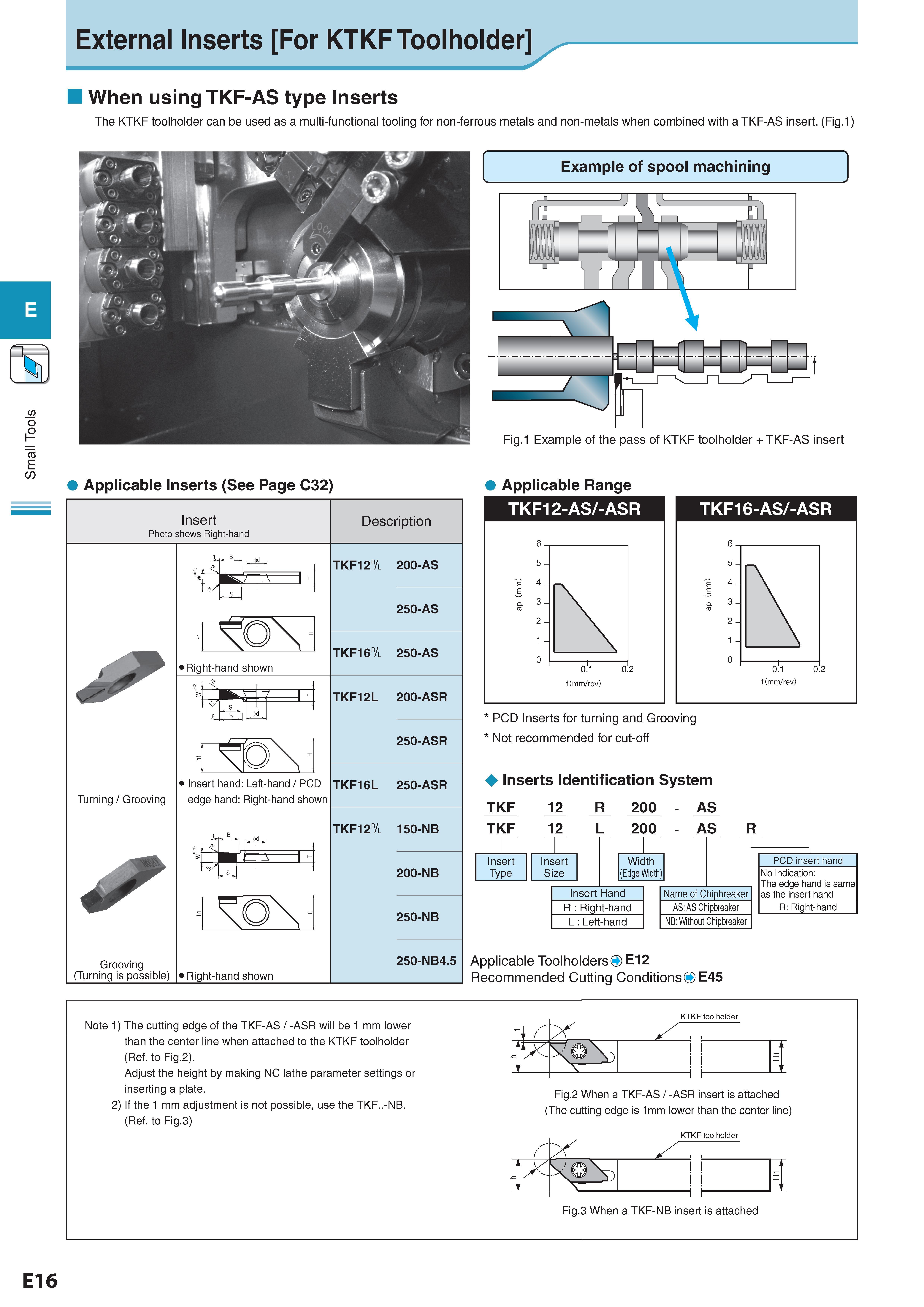

Small Tools External Inserts For KTKF Toolholder When using TKF-AS type Inserts The KTKF toolholder can be used as a multi-functional tooling for non-ferrous metals and non-metals when combined with a TKF-AS insert. (Fig.1) Example of spool machining Applicable Inserts (See Page C32) Fig.1 Example of the pass of KTKF toolholder + TKF-AS insert Applicable Range Insert Photo shows Right-hand Turning / Grooving ✓ Grooving (Turning is possible) > Показано правое исполнение инструмента Insert hand: Left-hand / PCD edge hand: Показано правое исполнение инструмента Right-hand shown Description Обозначение TKF12& 200-AS 250-AS TKF16& 250-AS TKF12L 200-ASR 250-ASR TKF16L 250-ASR TKF12& 150-NB 200-NB 250-NB 250-NB4.5 TKF12-AS/-ASR TKF16-AS/-ASR PCD Inserts for turning and Grooving Not recommended for cut-off Inserts Identification System TKF 12 R 200 - AS L TKF 12 200 AS R Applicable ToolholdersO E12 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO E45 Note 1) The cutting edge of the TKF-AS / -ASR will be 1 mm lower than the center line when attached to the KTKF toolholder (Ref. to Fig.2). Adjust the height by making NC lathe parameter settings or inserting a plate. 2) If the 1 mm adjustment is not possible, use the TKF..-NB. (Ref. to Fig.3) 1 X /, KTKF toolholder Fig.2 When a TKF-AS / -ASR insert is attached (The cutting edge is 1mm lower than the center line) KTKF toolholder Fig.3 When a TKF-NB insert is attached 0 0 E16
