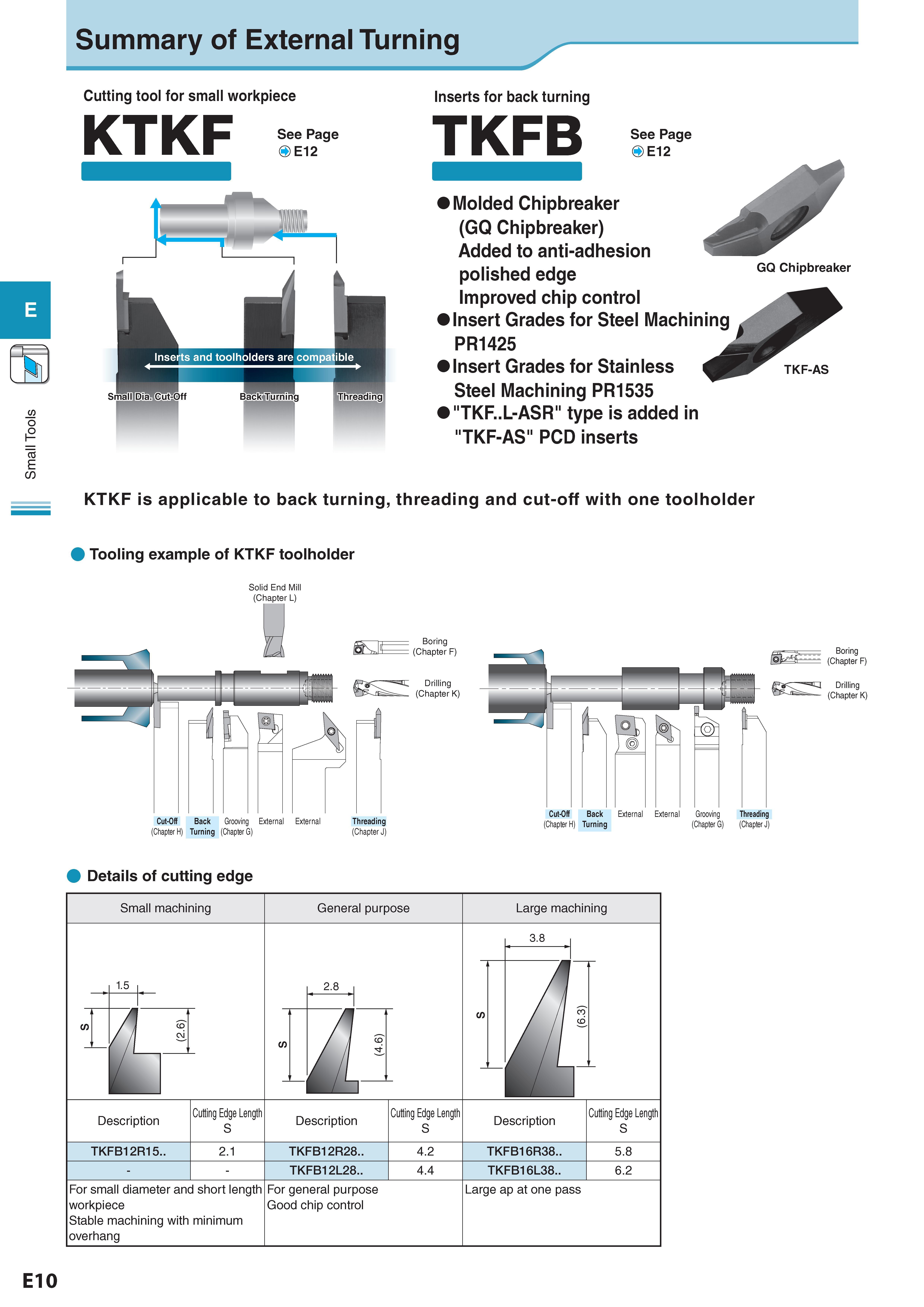

Small Tools Summary of External Turning Cutting tool for small workpiece KTKF See Page OE12 Inserts for back turning TKFB See Page E12 Molded Chipbreaker Стружколом сменной пластины (GQ Chipbreaker) Added to anti-adhesion polished edge Improved chip control Insert Grades for Steel Machining PR1425 Insert Grades for Stainless Steel Machining PR1535 "TKF..L-ASR" type is added in "TKF-AS" PCD inserts GQ Chipbreaker Стружколом сменной пластины TKF-AS KTKF is applicable to back turning, threading and cut-off with one toolholder Tooling example of KTKF toolholder Solid End Mill (Chapter L) Boring PTvJ'l . (Chapter F) Drilling (Chapter K) Cut-Off Back Grooving External Threading (Chapter H) Turning (Chapter G) (Chapter J) Hill I tMwr 7\ Cut-Off Back External Grooving Threading (Chapter H) Turning (Chapter G) (Chapter J) Boring (Chapter F) Drilling (Chapter K) Details of cutting edge Small machining General purpose Large machining 1.5 xf 2.8 M3 Description Обозначение Cutting Edge Length S Description Обозначение Cutting Edge Length S Description Обозначение Cutting Edge Length S TKFB12R15.. 2.1 TKFB12R28.. 4.2 TKFB16R38.. 5.8 TKFB12L28.. 4.4 TKFB16L38.. 6.2 For small diameter and short length workpiece Stable machining with minimum overhang For general purpose Good chip control Large ap at one pass E10
