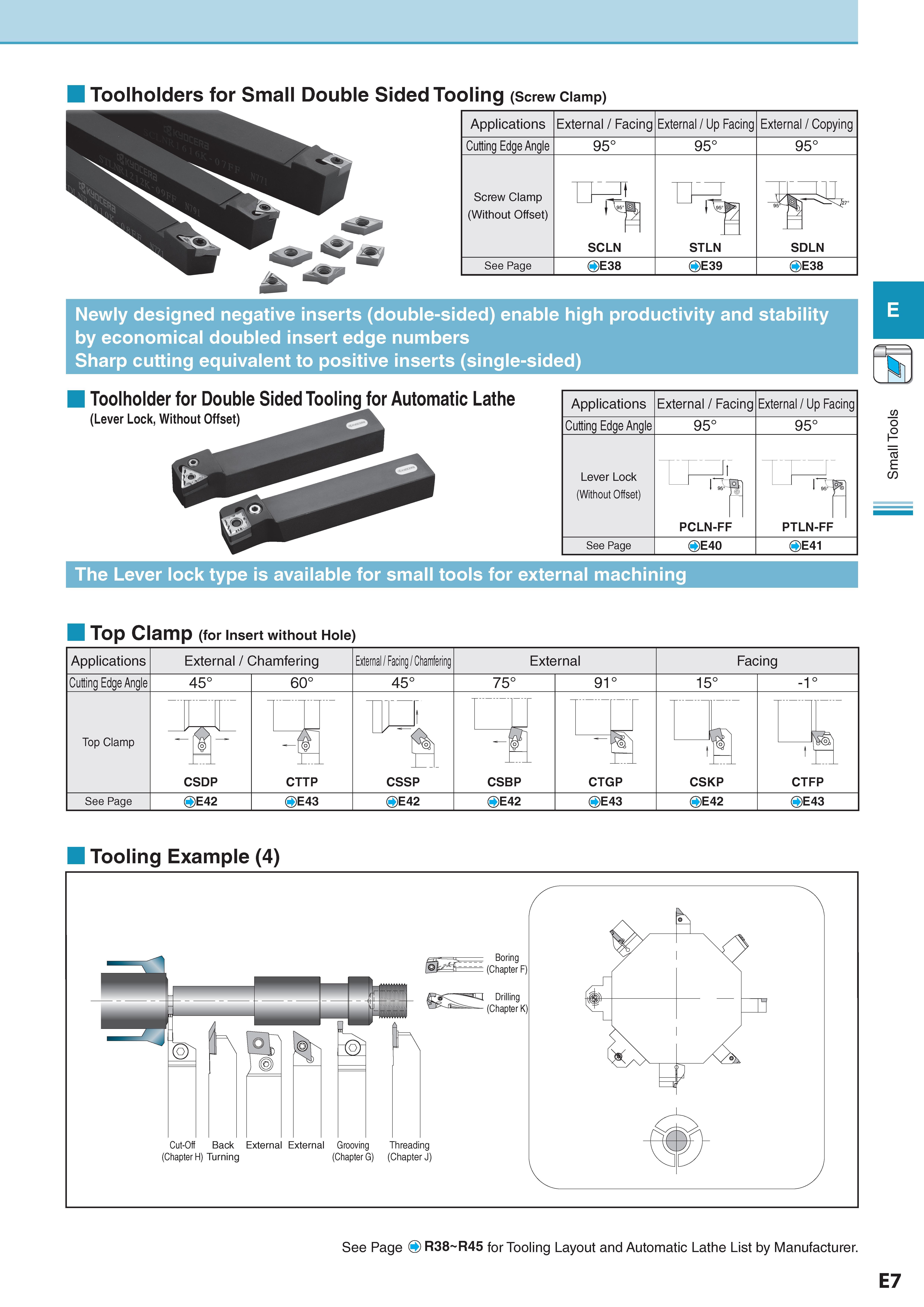

Toolholders for Small Double Sided Tooling (Screw Clamp) Applications External / Facing External / Up Facing External / Copying Cutting Edge Angle 95° 95° 9 Ol o Screw Clamp (Without Offset) I SCLN STLN SDLN See Page OE38 OE39 OE38 Newly designed negative inserts (double-sided) enable high productivity and stability by economical doubled insert edge numbers Sharp cutting equivalent to positive inserts (single-sided) Toolholder for Double Sided Tooling for Automatic Lathe (Lever Lock, Without Offset) Applications Cutting Edge Angle Lever Lock (Without Offset) See Page External / Facing 95° PCLN-FF OE40 External / Up Facing 95° PTLN-FF OE41 The Lever lock type is available for small tools for external machining ls O a £ CD 95 Tooling Example (4) See Page OR38 R45 for Tooling Layout and Automatic Lathe List by Manufacturer. E7
