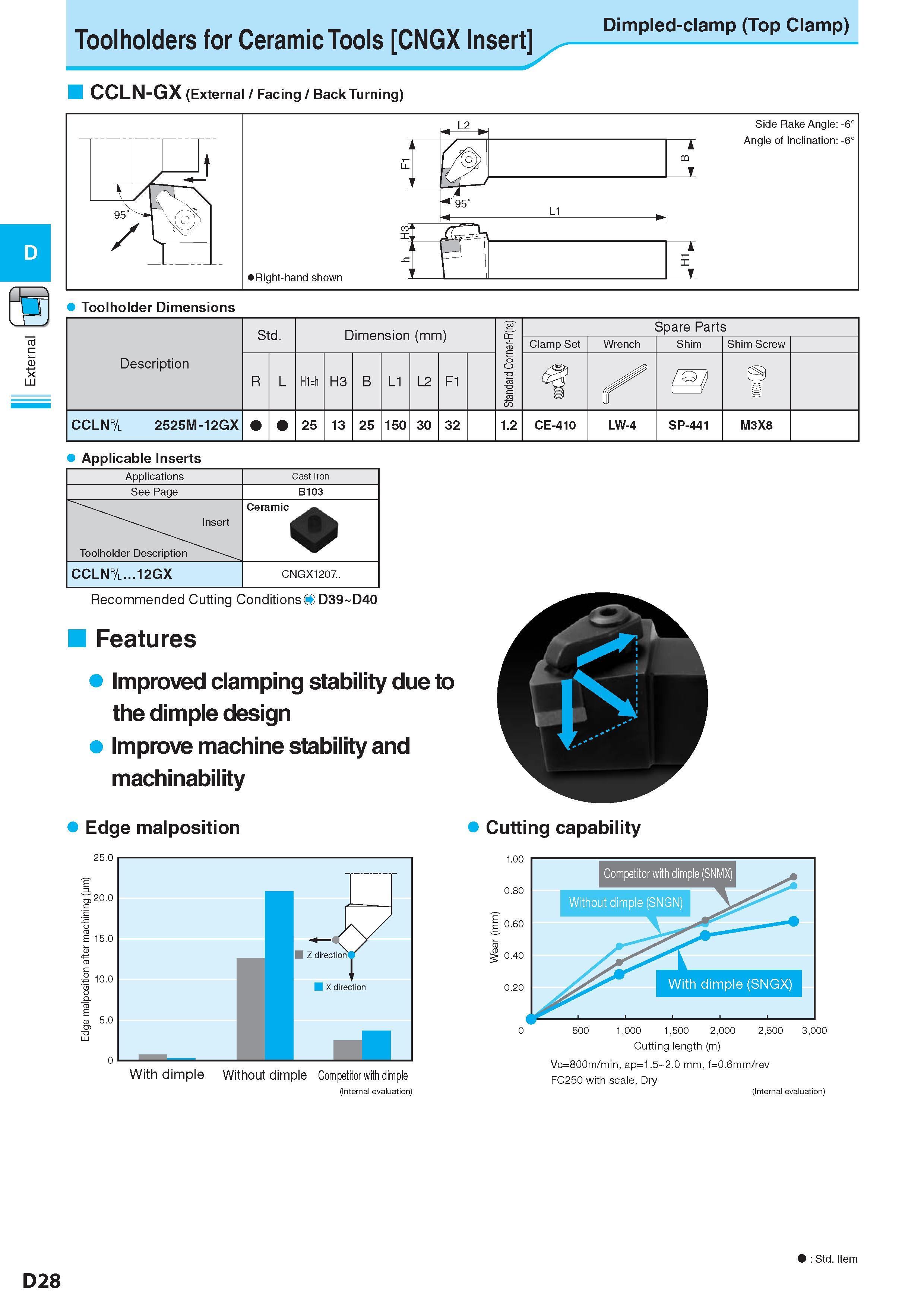

E External Toolholders for Ceramic Tools CNGX Insert Dimpled-clamp (Top Clamp) CCLN-GX (External / Facing / Back Turning) Applicable Inserts Applications Cast Iron See Page B103 Insert Toolholder Description Обозначение Ceramic CCLN&...12GX CNGX1207. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO D39 D40 Features Improved clamping stability due to the dimple design Improve machine stability and machinability Edge malposition 25.0 - Cutting capability 43 10.0 5.0 Z direction X direction With dimple Without dimple Competitor with dimple (Internal evaluation) Cutting length (m) Vc=800m/min, ap=1.5 2.0 mm, f=0.6mm/rev FC250 with scale, Dry (Internal evaluation) 0 D28 : Std. Item
