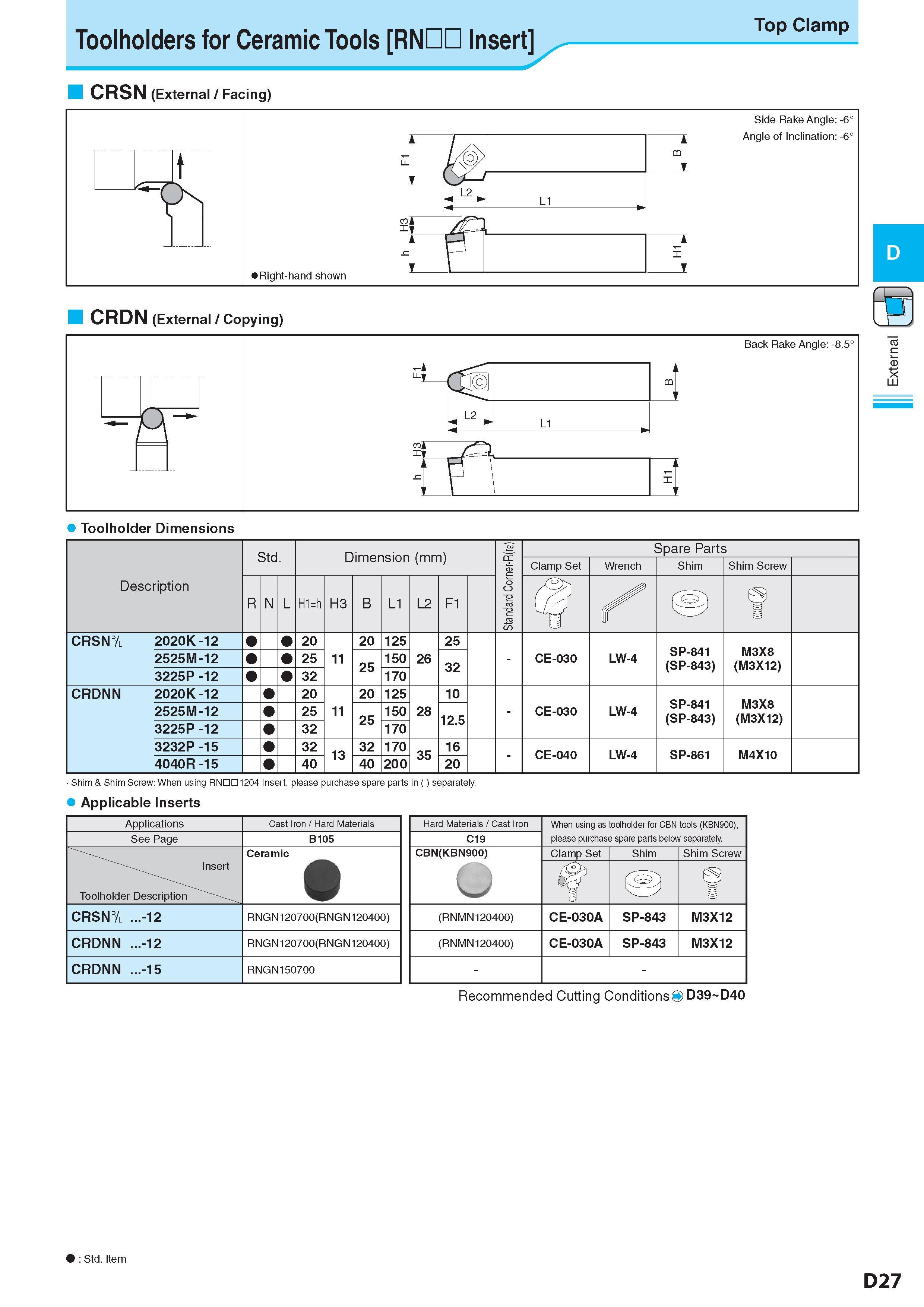

Toolholders for Ceramic Tools RNDD Insert Top Clamp CRSN (External / Facing) Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Standard Corner-R(re) Spare Parts Clamp Set Wrench Shim Shim Screw R N L H1=h H3 B Li L2 F1 s f CRSN& 2020K -12 20 11 20 125 26 25 - CE-030 LW-4 SP-841 (SP-843) M3X8 (M3X12) 2525M -12 25 25 150 32 3225P -12 32 170 CRDNN 2020K -12 20 11 20 125 28 10 - CE-030 LW-4 SP-841 (SP-843) M3X8 (M3X12) 2525M -12 25 25 150 12.5 3225P -12 32 170 3232P -15 32 13 32 170 35 16 - CE-040 LW-4 SP-861 M4X10 4040R -15 40 40 200 20 Shim & Shim Screw: When using RNmmi204 Insert, please purchase spare parts in separately. Applicable Inserts Applications Cast Iron / Hard Materials See Page B105 Insert Toolholder Description Обозначение Ceramic CRSN& ...-12 RNGN120700(RNGN 120400) CRDNN ...-12 RNGN120700(RNGN120400) CRDNN ...-15 RNGN150700 Hard Materials / Cast Iron When using as toolholder for CBN tools (KBN900), please purchase spare parts below separately. C19 CBN(KBN900) u Clamp Set Shim Shim Screw tf f (RNMN120400) CE-030A SP-843 M3X12 (RNMN120400) CE-030A SP-843 M3X12 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO D39 D40 : Std. Item Стандартная позиция D27
