37 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.B8

Каталог KYOCERA 2017 Инструмент режущий Стр. B8 0037 Lab2u

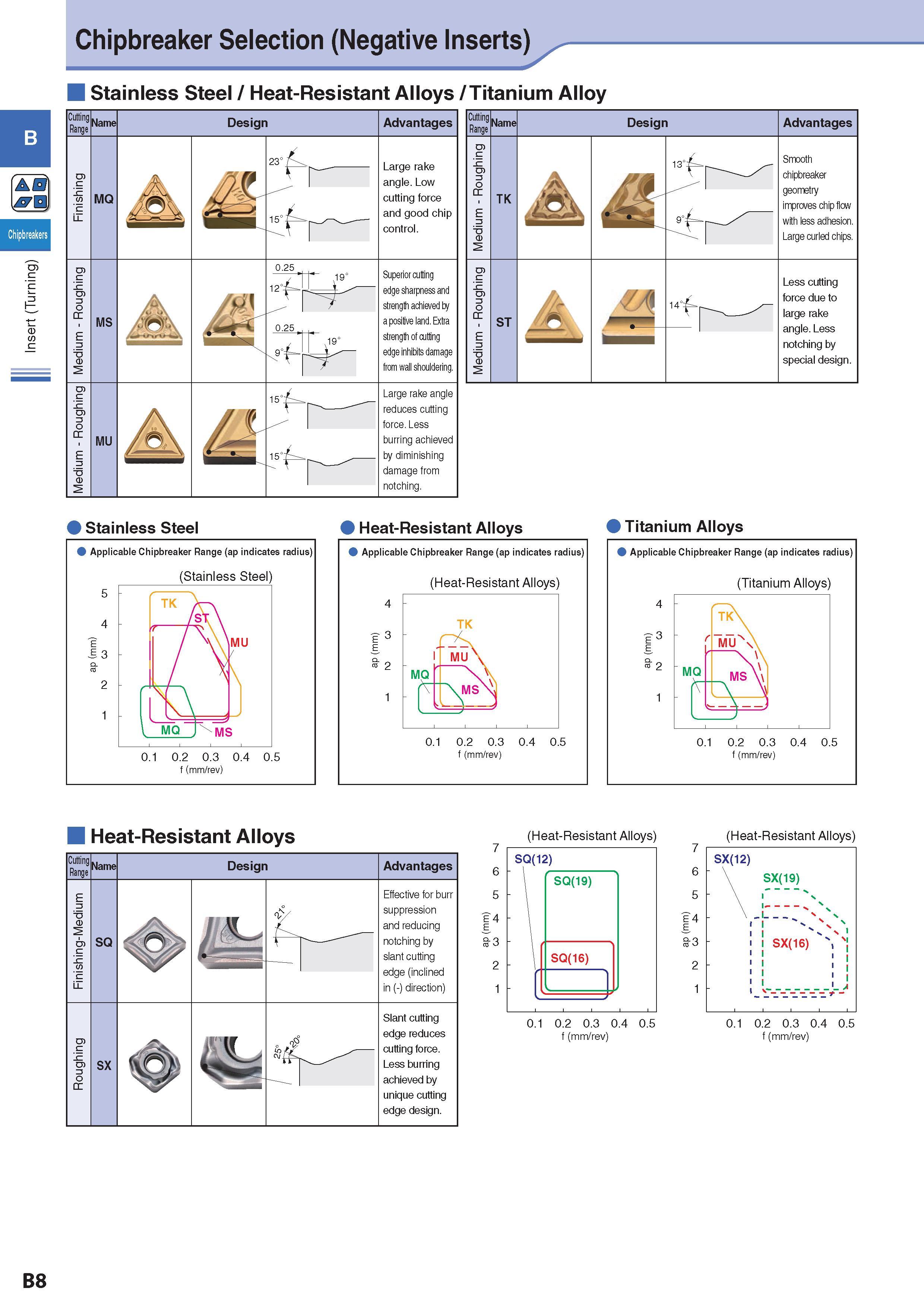

Insert (Turning) Chipbreaker Стружколом сменной пластины Selection (Negative Inserts) B a n n Stainless Steel / Heat-Resistant Alloys / Titanium Alloy Cutting Name MQ MS MU Design 23° 0.25 1 Advantages Large rake angle. Low cutting force and good chip control. Superior cutting edge sharpness and strength achieved by a positive land. Extra strength of cutting edge inhibits damage from wall shouldering. Large rake angle reduces cutting force. Less burring achieved by diminishing damage from notching. Cutting Name TK ST Advantages Smooth chipbreaker geometry improves chip flow with less adhesion. Large curled chips. Less cutting force due to large rake angle. Less notching by special design. Stainless Steel Heat-Resistant Alloys Titanium Alloys 15 Applicable Chipbreaker Стружколом сменной пластины Range (ap indicates radius) (Stainless Steel) f (mm/rev) Heat-Resistant Alloys (Heat-Resistant Alloys) Cutting Range Name Design Advantages Finishing-Medium SQ Effective for burr suppression and reducing notching by slant cutting edge (inclined in (-) direction) Roughing SX & o to cv Slant cutting edge reduces cutting force. Less burring achieved by unique cutting edge design. (Heat-Resistant Alloys) f (mm/rev) B8
