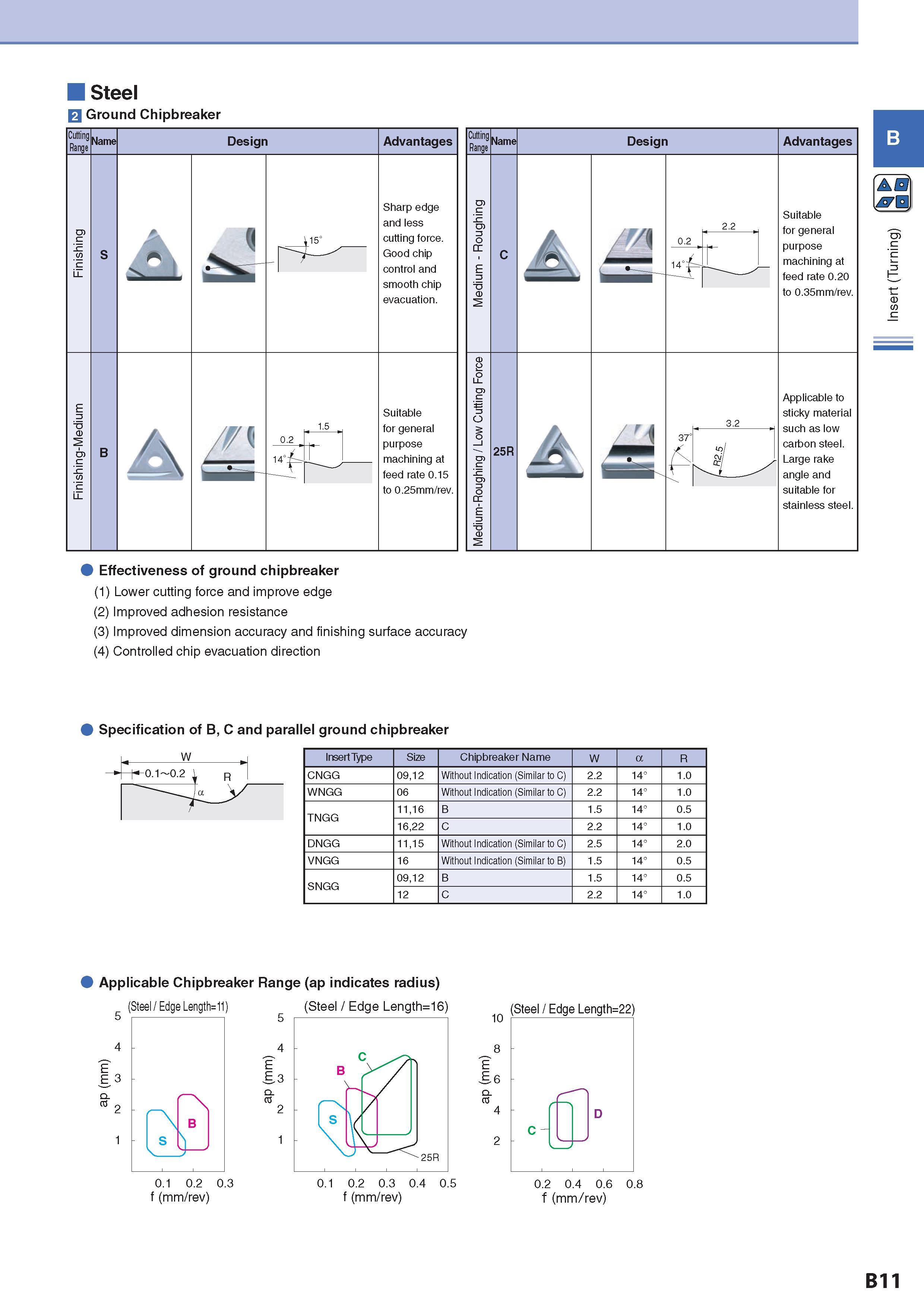

Steel 2 Ground Chipbreaker Стружколом сменной пластины Cutting Name Design 0.2 " 14°° " Advantages Sharp edge and less cutting force. Good chip control and smooth chip evacuation. Suitable for general purpose machining at feed rate 0.15 to 0.25mm/rev. Cutting Name 25R Design Effectiveness of ground chipbreaker (1) Lower cutting force and improve edge (2) Improved adhesion resistance (3) Improved dimension accuracy and finishing surface accuracy (4) Controlled chip evacuation direction Advantages Suitable for general purpose machining at feed rate 0.20 to 0.35mm/rev. Applicable to sticky material such as low carbon steel. Large rake angle and suitable for stainless steel. S C B Specification of B, C and parallel ground chipbreaker insert Type Size Chipbreaker Стружколом сменной пластины Name W a R CNGG 09,12 Without indication (Similar to C) 2.2 14° 1.0 WNGG 06 Without indication (Similar to C) 2.2 14° 1.0 TNGG 11,16 B 1.5 14° 0.5 16,22 C 2.2 14° 1.0 DNGG 11,15 Without indication (Similar to C) 2.5 14° 2.0 VNGG 16 Without indication (Similar to B) 1.5 14° 0.5 SNGG 09,12 B 1.5 14° 0.5 12 C 2.2 14° 1.0 Applicable Chipbreaker Стружколом сменной пластины Range (ap indicates radius) 5 4 E E 3 Q. 2 1 (Steel / Edge Length=11) A B S L 0.1 0.2 0.3 f (mm/rev) (Steel / Edge Length=16) f (mm/rev) 10 E JK 6 Q. ffl 4 2 (Steel / Edge Length=22) 0.2 0.4 0.6 0.8 f (mm/rev) D C B11 Insert (Turning)
