34 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.B5

Каталог KYOCERA 2017 Инструмент режущий Стр. B5 0034 Lab2u

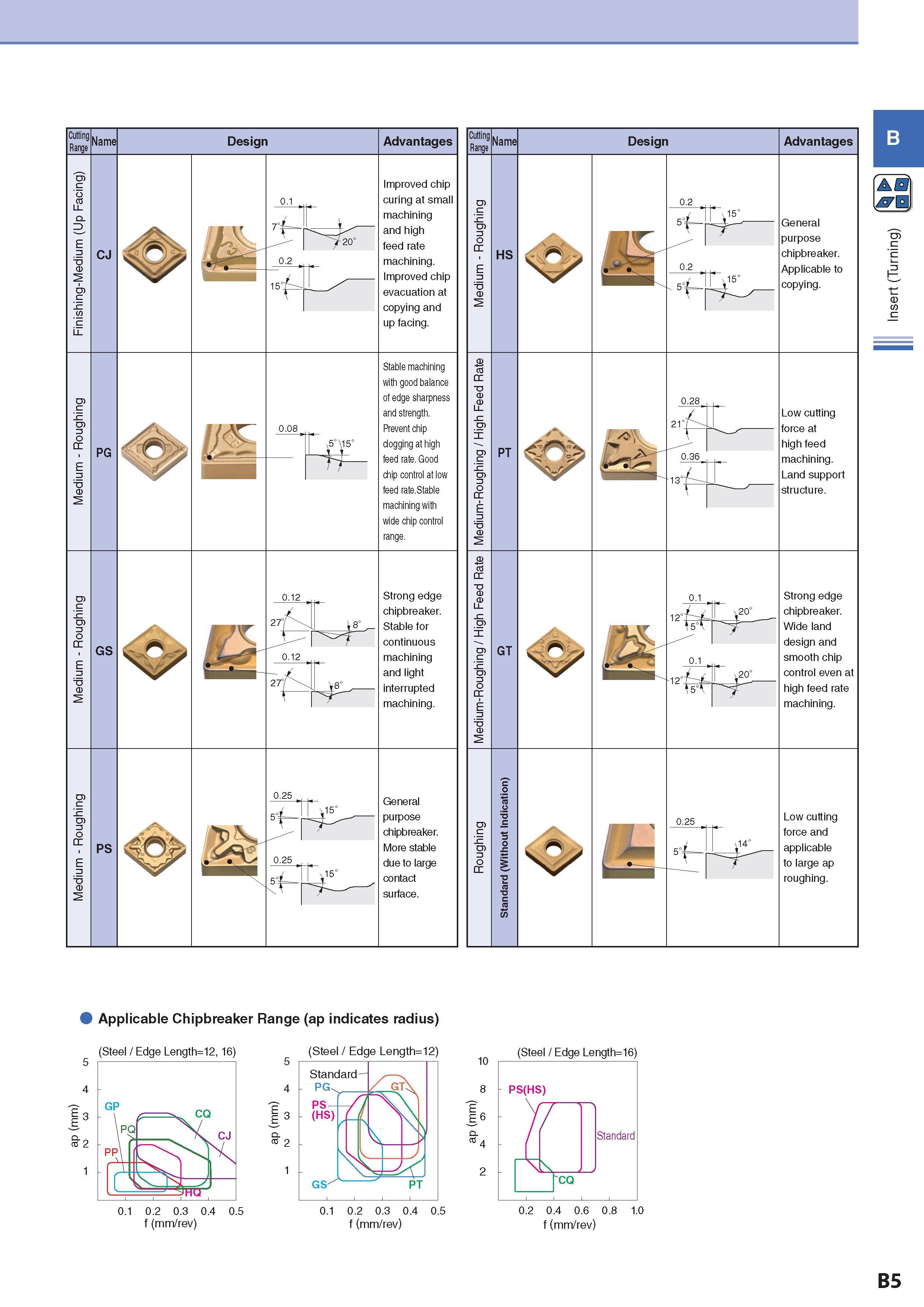

Cutting Range Name CJ PG GS PS Design Advantages Improved chip curing at small machining and high feed rate machining. Improved chip evacuation at copying and up facing. Stable machining with good balance of edge sharpness and strength. Prevent chip dogging at high feed rate. Good chip control at low feed rate.Stable machining with wide chip control range. Strong edge chipbreaker. Stable for continuous machining and light interrupted machining. General purpose chipbreaker. More stable due to large contact surface. Cutting Range Name HS PT GT Design <5/ n rm ' \ 20° Advantages General purpose chipbreaker. Applicable to copying. Low cutting force at high feed machining. Land support structure. Strong edge chipbreaker. Wide land design and smooth chip control even at high feed rate machining. Low cutting force and applicable to large ap roughing.
