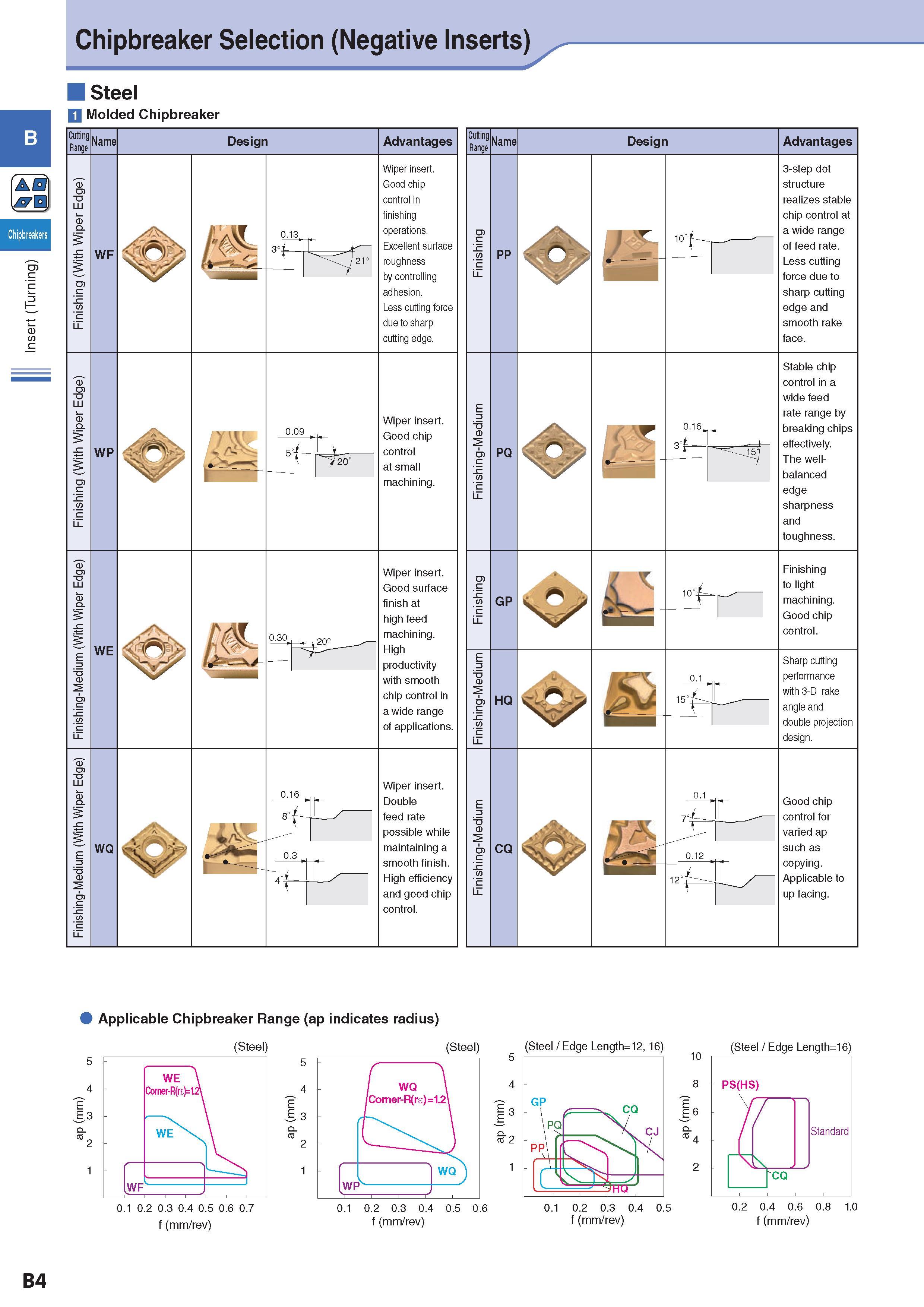

Insert (Turning) Chipbreaker Стружколом сменной пластины Selection (Negative Inserts) B a n n Steel j Molded Chipbreaker Стружколом сменной пластины Cutting Range Name WF WP WE WQ Design 009 51 8“: q Advantages Wiper insert. Good chip control in finishing operations. Excellent surface roughness by controlling adhesion. Less cutting force due to sharp cutting edge. Wiper insert. Good chip control at small machining. Wiper insert. Good surface finish at high feed machining. High productivity with smooth chip control in a wide range of applications. Wiper insert. Double feed rate possible while maintaining a smooth finish. High efficiency and good chip control. Cutting Name PP PQ GP HQ CQ Design f r Advantages 3-step dot structure realizes stable chip control at a wide range of feed rate. Less cutting force due to sharp cutting edge and smooth rake face. Stable chip control in a wide feed rate range by breaking chips effectively. The well-balanced edge sharpness and toughness. Finishing to light machining. Good chip control. Sharp cutting performance with 3-D rake angle and double projection design. Good chip control for varied ap such as copying. Applicable to up facing. (Steel / Edge Length=12, 16) 5 4 1= j= 3 CL 2 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 f (mm/rev) 10 8 I6 Q. 4 2 (Steel / Edge Length=16) f (mm/rev) PS(HS) Standard CQ 0.2 0.4 0.6 0.8 1.0 f (mm/rev) Applicable Chipbreaker Стружколом сменной пластины Range (ap indicates radius) (Steel) (Steel) 5 B4
