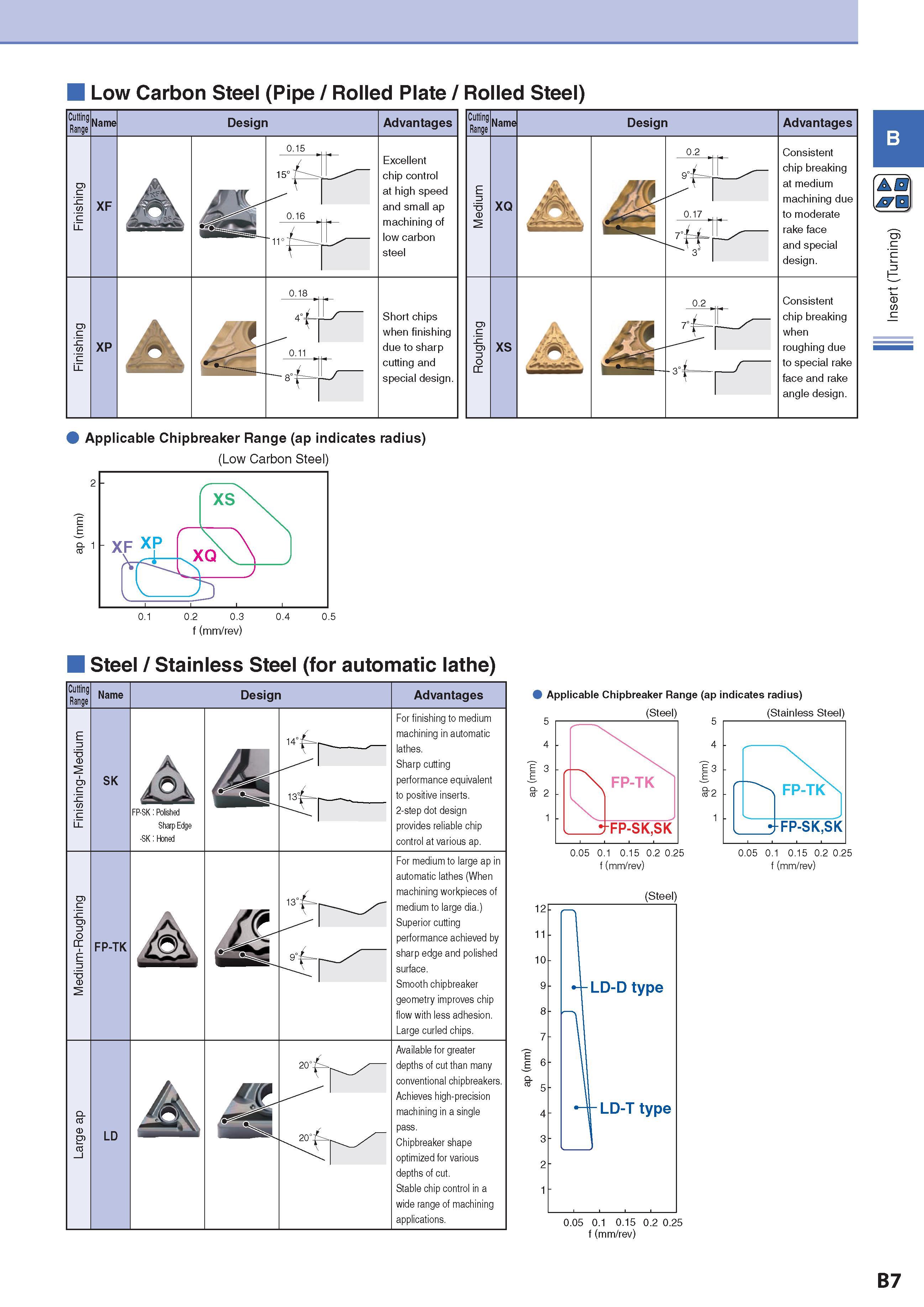

Low Carbon Steel (Pipe / Rolled Plate / Rolled Steel) Culling Range Name XF XP Design Advantages Excellent chip control at high speed and small ap machining of low carbon steel Short chips when finishing due to sharp cutting and special design. Applicable Chipbreaker Стружколом сменной пластины Range (ap indicates radius) (Low Carbon Steel) Culling Name XQ XS Design r Advantages Consistent chip breaking at medium machining due to moderate rake face and special design. Consistent chip breaking when roughing due to special rake face and rake angle design. c 'c f (mm/rev) Steel / Stainless Steel (for automatic lathe) Cutting Range Name SK FP-TK LD Design FP-SK -SK Polished Sharp Edge Honed Advantages For finishing to medium machining in automatic lathes. Sharp cutting performance equivalent to positive inserts. 2-step dot design provides reliable chip control at various ap. For medium to large ap in automatic lathes (When machining workpieces of medium to large dia.) Superior cutting performance achieved by sharp edge and polished surface. Smooth chipbreaker geometry improves chip flow with less adhesion. Large curled chips. Available for greater depths of cut than many conventional chipbreakers. Achieves high-precision machining in a single pass. Chipbreaker Стружколом сменной пластины shape optimized for various depths of cut. Stable chip control in a wide range of machining applications. Applicable Chipbreaker Стружколом сменной пластины Range (ap indicates radius) f (mm/rev) (Steel) f (mm/rev) B7
