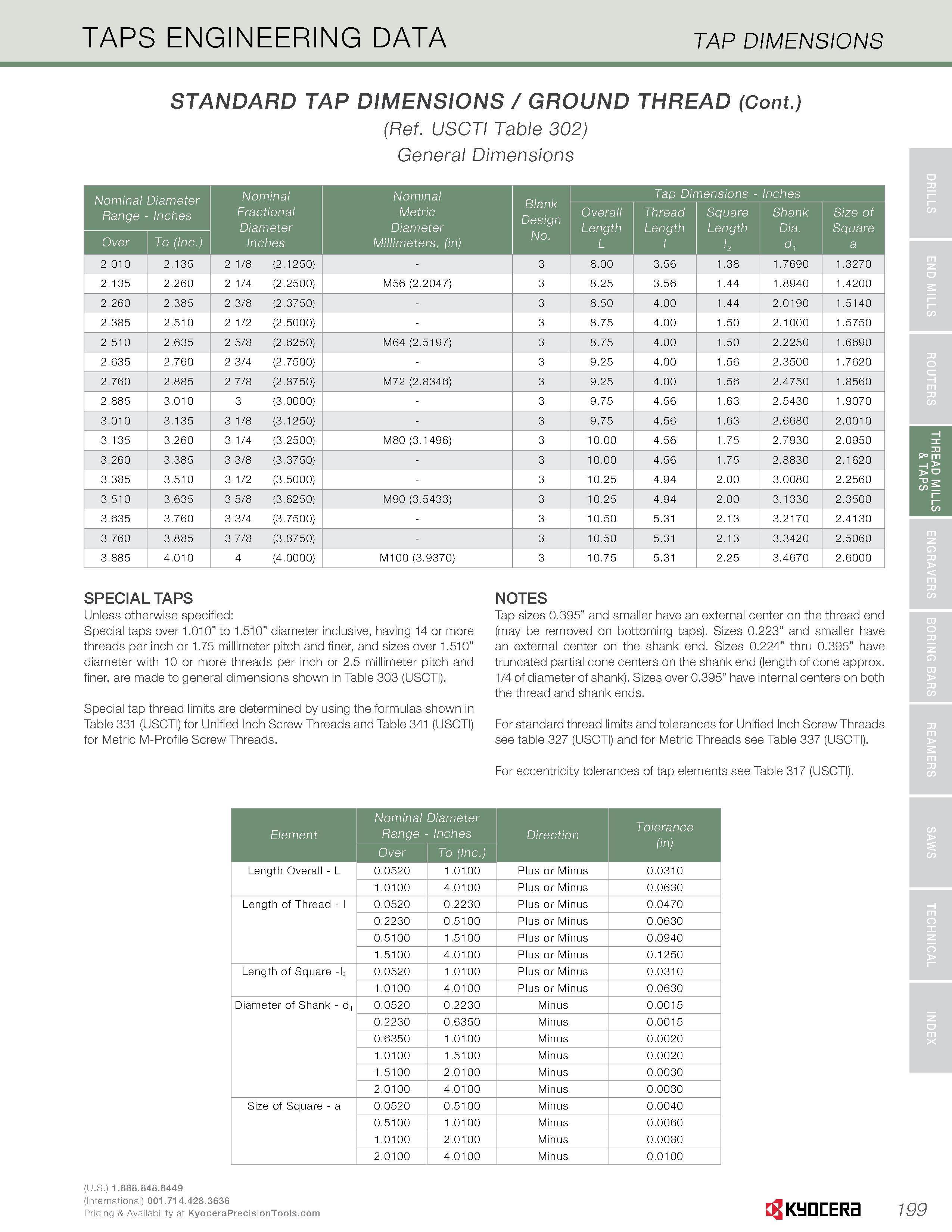

TAPS ENGINEERING DATA TAP DIMENSIONS STANDARD TAP DIMENSIONS / GROUND THREAD (Cont.) (Ref. USCTI Table 302) General Dimensions Nominal Nominal Tap Dimensions Inches Range - Inches Fractional Diameter Metric Diameter Blank Design Overall Length Thread Length Square Length Shank Size of Square Over To (Inc.) Inches Millimeters, (in) No. L l d1 a 2.010 2.135 2 1/8 (2.1250) 3 8.00 3.56 1.38 1.7690 1.3270 2.135 2.260 2 1/4 (2.2500) M56 (2.2047) 3 8.25 3.56 1.44 1.8940 1.4200 2.260 2.385 2 3/8 (2.3750) 3 8.50 4.00 1.44 2.0190 1.5140 2.385 2.510 2 1/2 (2.5000) 3 8.75 4.00 1.50 2.1000 1.5750 2.510 2.635 2 5/8 (2.6250) M64 (2.5197) 3 8.75 4.00 1.50 2.2250 1.6690 2.635 2.760 2 3/4 (2.7500) 3 9.25 4.00 1.56 2.3500 1.7620 2.760 2.885 2 7/8 (2.8750) M72 (2.8346) 3 9.25 4.00 1.56 2.4750 1.8560 2.885 3.010 3 (3.0000) - 3 9.75 4.56 1.63 2.5430 1.9070 3.010 3.135 3 1/8 (3.1250) - 3 9.75 4.56 1.63 2.6680 2.0010 3.135 3.260 3 1/4 (3.2500) M80 (3.1496) 3 10.00 4.56 1.75 2.7930 2.0950 3.260 3.385 3 3/8 (3.3750) - 3 10.00 4.56 1.75 2.8830 2.1620 3.385 3.510 3 1/2 (3.5000) - 3 10.25 4.94 2.00 3.0080 2.2560 3.510 3.635 3 5/8 (3.6250) M90 (3.5433) 3 10.25 4.94 2.00 3.1330 2.3500 3.635 3.760 3 3/4 (3.7500) - 3 10.50 5.31 2.13 3.2170 2.4130 3.760 3.885 3 7/8 (3.8750) - 3 10.50 5.31 2.13 3.3420 2.5060 3.885 4.010 4 (4.0000) M100 (3.9370) 3 10.75 5.31 2.25 3.4670 2.6000 SPECIAL TAPS Unless otherwise specified: Special taps over 1.010” to 1.510” diameter inclusive, having 14 or more threads per inch or 1.75 millimeter pitch and finer, and sizes over 1.510” diameter with 10 or more threads per inch or 2.5 millimeter pitch and finer, are made to general dimensions shown in Table 303 (USCTI). Special tap thread limits are determined by using the formulas shown in Table 331 (USCTI) for Unified Inch Screw Threads and Table 341 (USCTI) for Metric M-Profile Screw Threads. NOTES Tap sizes 0.395” and smaller have an external center on the thread end (may be removed on bottoming taps). Sizes 0.223” and smaller have an external center on the shank end. Sizes 0.224” thru 0.395” have truncated partial cone centers on the shank end (length of cone approx. 1/4 of diameter of shank). Sizes over 0.395” have internal centers on both the thread and shank ends. For standard thread limits and tolerances for Unified Inch Screw Threads see table 327 (USCTI) and for Metric Threads see Table 337 (USCTI). For eccentricity tolerances of tap elements see Table 317 (USCTI). Element Nominal Diameter Range - Inches Over To (Inc. Direction Tolerance (in) Length Overall - L 0.0520 1.0100 Plus or Minus 0.0310 1.0100 4.0100 Plus or Minus 0.0630 Length of Thread - I 0.0520 0.2230 Plus or Minus 0.0470 0.2230 0.5100 Plus or Minus 0.0630 0.5100 1.5100 Plus or Minus 0.0940 1.5100 4.0100 Plus or Minus 0.1250 Length of Square -l2 0.0520 1.0100 Plus or Minus 0.0310 1.0100 4.0100 Plus or Minus 0.0630 Diameter of Shank - d1 0.0520 0.2230 Minus 0.0015 0.2230 0.6350 Minus 0.0015 0.6350 1.0100 Minus 0.0020 1.0100 1.5100 Minus 0.0020 1.5100 2.0100 Minus 0.0030 2.0100 4.0100 Minus 0.0030 Size of Square - a 0.0520 0.5100 Minus 0.0040 0.5100 1.0100 Minus 0.0060 1.0100 2.0100 Minus 0.0080 2.0100 4.0100 Minus 0.0100 Kyocera 199
