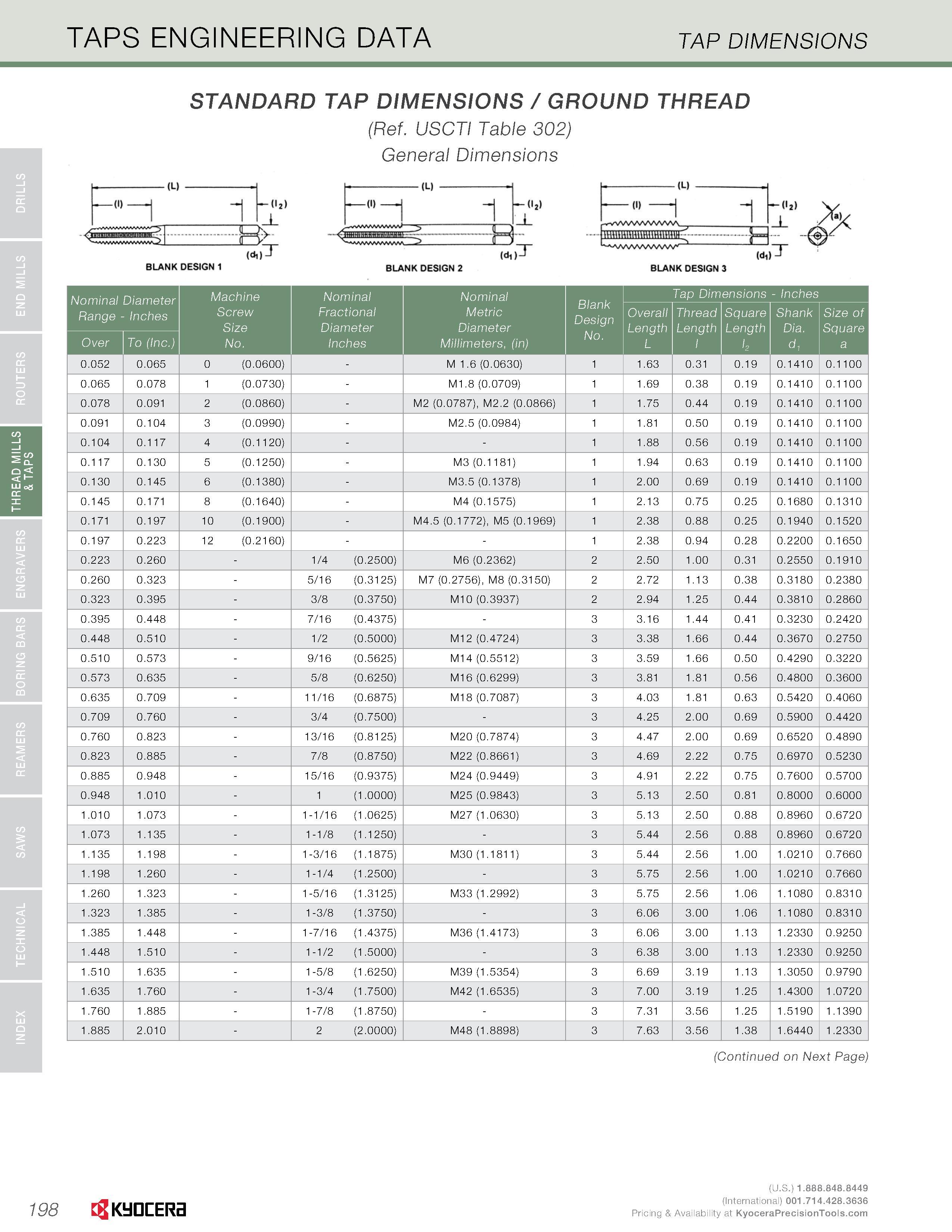

TAPS ENGINEERING DATA TAP DIMENSIONS STANDARD TAP DIMENSIONS / GROUND THREAD (Ref. USCTI Table 302) General Dimensions (L '-1 1 -o2) s l .. - (L) ('>) BLANK DESIGN 1 BLANK DESIGN 2 BL (< )j JEj da) L Wi) BLANK DESIGN 3 Nominal Diameter Machine Nominal Nominal Blank Tap Dimensions - Inches Range Inches Screw Fractional Metric Overall Thread Square Shank Size of Size Diameter Diameter No. Length Length Length Dia. Square Over To (Inc.) No. Inches Millimeters, (in) L l d1 a 0.052 0.065 0 (0.0600) - M 1.6 (0.0630) 1.63 0.31 0.19 0.1410 0.1100 0.065 0.078 1 (0.0730) - M1.8 (0.0709) 1.69 0.38 0.19 0.1410 0.1100 0.078 0.091 2 (0.0860) - M2 (0.0787), M2.2 (0.0866) 1.75 0.44 0.19 0.1410 0.1100 0.091 0.104 3 (0.0990) - M2.5 (0.0984) 1.81 0.50 0.19 0.1410 0.1100 0.104 0.117 4 (0.1120) - - 1.88 0.56 0.19 0.1410 0.1100 0.117 0.130 5 (0.1250) - M3 (0.1181) 1.94 0.63 0.19 0.1410 0.1100 0.130 0.145 6 (0.1380) - M3.5 (0.1378) 2.00 0.69 0.19 0.1410 0.1100 0.145 0.171 8 (0.1640) - M4 (0.1575) 2.13 0.75 0.25 0.1680 0.1310 0.171 0.197 10 (0.1900) - M4.5 (0.1772), M5 (0.1969) 2.38 0.88 0.25 0.1940 0.1520 0.197 0.223 12 (0.2160) - - 2.38 0.94 0.28 0.2200 0.1650 0.223 0.260 - 1/4 (0.2500) M6 (0.2362) 2 2.50 1.00 0.31 0.2550 0.1910 0.260 0.323 - 5/16 (0.3125) M7 (0.2756), M8 (0.3150) 2 2.72 1.13 0.38 0.3180 0.2380 0.323 0.395 - 3/8 (0.3750) M10 (0.3937) 2 2.94 1.25 0.44 0.3810 0.2860 0.395 0.448 - 7/16 (0.4375) - 3 3.16 1.44 0.41 0.3230 0.2420 0.448 0.510 - 1/2 (0.5000) M12 (0.4724) 3 3.38 1.66 0.44 0.3670 0.2750 0.510 0.573 - 9/16 (0.5625) M14 (0.5512) 3 3.59 1.66 0.50 0.4290 0.3220 0.573 0.635 - 5/8 (0.6250) M16 (0.6299) 3 3.81 1.81 0.56 0.4800 0.3600 0.635 0.709 - 11/16 (0.6875) M18 (0.7087) 3 4.03 1.81 0.63 0.5420 0.4060 0.709 0.760 - 3/4 (0.7500) - 3 4.25 2.00 0.69 0.5900 0.4420 0.760 0.823 - 13/16 (0.8125) M20 (0.7874) 3 4.47 2.00 0.69 0.6520 0.4890 0.823 0.885 - 7/8 (0.8750) M22 (0.8661) 3 4.69 2.22 0.75 0.6970 0.5230 0.885 0.948 - 15/16 (0.9375) M24 (0.9449) 3 4.91 2.22 0.75 0.7600 0.5700 0.948 1.010 - 1 (1.0000) M25 (0.9843) 3 5.13 2.50 0.81 0.8000 0.6000 1.010 1.073 - 1-1/16 (1.0625) M27 (1.0630) 3 5.13 2.50 0.88 0.8960 0.6720 1.073 1.135 - 1-1/8 (1.1250) - 3 5.44 2.56 0.88 0.8960 0.6720 1.135 1.198 - 1-3/16 (1.1875) M30 (1.1811) 3 5.44 2.56 1.00 1.0210 0.7660 1.198 1.260 - 1-1/4 (1.2500) - 3 5.75 2.56 1.00 1.0210 0.7660 1.260 1.323 - 1-5/16 (1.3125) M33 (1.2992) 3 5.75 2.56 1.06 1.1080 0.8310 1.323 1.385 - 1-3/8 (1.3750) - 3 6.06 3.00 1.06 1.1080 0.8310 1.385 1.448 - 1-7/16 (1.4375) M36 (1.4173) 3 6.06 3.00 1.13 1.2330 0.9250 1.448 1.510 - 1-1/2 (1.5000) - 3 6.38 3.00 1.13 1.2330 0.9250 1.510 1.635 - 1-5/8 (1.6250) M39 (1.5354) 3 6.69 3.19 1.13 1.3050 0.9790 1.635 1.760 - 1-3/4 (1.7500) M42 (1.6535) 3 7.00 3.19 1.25 1.4300 1.0720 1.760 1.885 - 1-7/8 (1.8750) - 3 7.31 3.56 1.25 1.5190 1.1390 1.885 2.010 - 2 (2.0000) M48 (1.8898) 3 7.63 3.56 1.38 1.6440 1.2330 (Continued on Next Page) (U.S.) 198 (International) 001.714.428.3636 I 98 Pricing & Availability at
