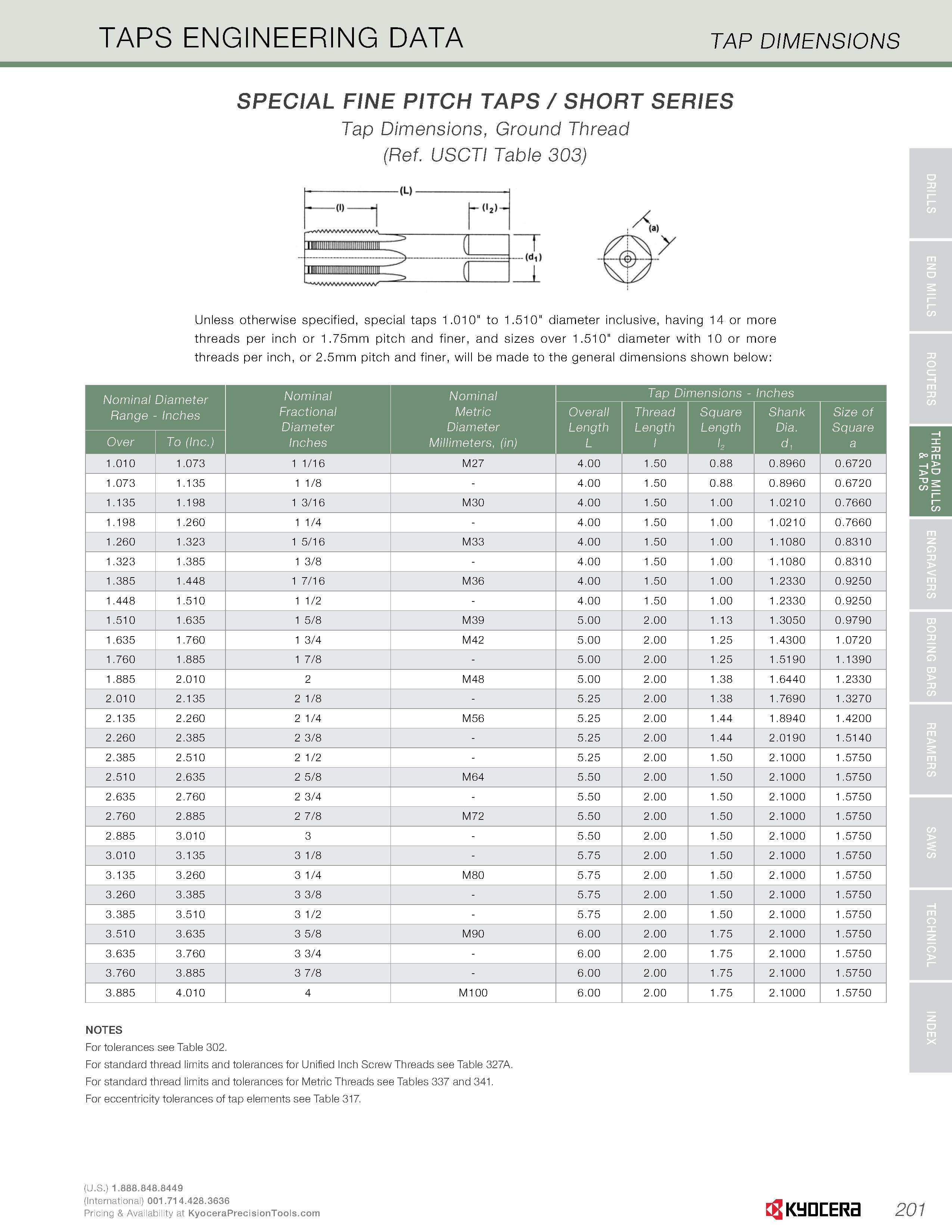

TAPS ENGINEERING DATA TAP DIMENSIONS SPECIAL FINE PITCH TAPS / SHORT SERIES Tap Dimensions, Ground Thread (Ref. USCTI Table 303) Unless otherwise specified, special taps 1.010" to 1.510" diameter inclusive, having 14 or more threads per inch or 1.75mm pitch and finer, and sizes over 1.510" diameter with 10 or more threads per inch, or 2.5mm pitch and finer, will be made to the general dimensions shown below: Nominal Diameter Nominal Nominal Tap Dimensions - Inches Range Inches Fractional Metric Overall Thread Square Shank Size of Diameter Diameter Length Length Length Dia. Square Over To (Inc. Inches Millimeters, (in) L l d1 a 1.010 1.073 1 1/16 M27 4.00 1.50 0.88 0.8960 0.6720 1.073 1.135 1 1/8 4.00 1.50 0.88 0.8960 0.6720 1.135 1.198 1 3/16 M30 4.00 1.50 1.00 1.0210 0.7660 1.198 1.260 1 1/4 4.00 1.50 1.00 1.0210 0.7660 1.260 1.323 1 5/16 M33 4.00 1.50 1.00 1.1080 0.8310 1.323 1.385 1 3/8 4.00 1.50 1.00 1.1080 0.8310 1.385 1.448 1 7/16 M36 4.00 1.50 1.00 1.2330 0.9250 1.448 1.510 1 1/2 4.00 1.50 1.00 1.2330 0.9250 1.510 1.635 1 5/8 M39 5.00 2.00 1.13 1.3050 0.9790 1.635 1.760 1 3/4 M42 5.00 2.00 1.25 1.4300 1.0720 1.760 1.885 1 7/8 - 5.00 2.00 1.25 1.5190 1.1390 1.885 2.010 2 M48 5.00 2.00 1.38 1.6440 1.2330 2.010 2.135 2 1/8 - 5.25 2.00 1.38 1.7690 1.3270 2.135 2.260 2 1/4 M56 5.25 2.00 1.44 1.8940 1.4200 2.260 2.385 2 3/8 - 5.25 2.00 1.44 2.0190 1.5140 2.385 2.510 2 1/2 - 5.25 2.00 1.50 2.1000 1.5750 2.510 2.635 2 5/8 M64 5.50 2.00 1.50 2.1000 1.5750 2.635 2.760 2 3/4 - 5.50 2.00 1.50 2.1000 1.5750 2.760 2.885 2 7/8 M72 5.50 2.00 1.50 2.1000 1.5750 2.885 3.010 3 - 5.50 2.00 1.50 2.1000 1.5750 3.010 3.135 3 1/8 - 5.75 2.00 1.50 2.1000 1.5750 3.135 3.260 3 1/4 M80 5.75 2.00 1.50 2.1000 1.5750 3.260 3.385 3 3/8 - 5.75 2.00 1.50 2.1000 1.5750 3.385 3.510 3 1/2 - 5.75 2.00 1.50 2.1000 1.5750 3.510 3.635 3 5/8 M90 6.00 2.00 1.75 2.1000 1.5750 3.635 3.760 3 3/4 - 6.00 2.00 1.75 2.1000 1.5750 3.760 3.885 3 7/8 - 6.00 2.00 1.75 2.1000 1.5750 3.885 4.010 4 M100 6.00 2.00 1.75 2.1000 1.5750 NOTES For tolerances see Table 302. For standard thread limits and tolerances for Unified Inch Screw Threads see Table 327A. For standard thread limits and tolerances for Metric Threads see Tables 337 and 341. For eccentricity tolerances of tap elements see Table 317 (U.S.) (International) 001.714.428.3636 201 Pricing & Availability at 2Ul
