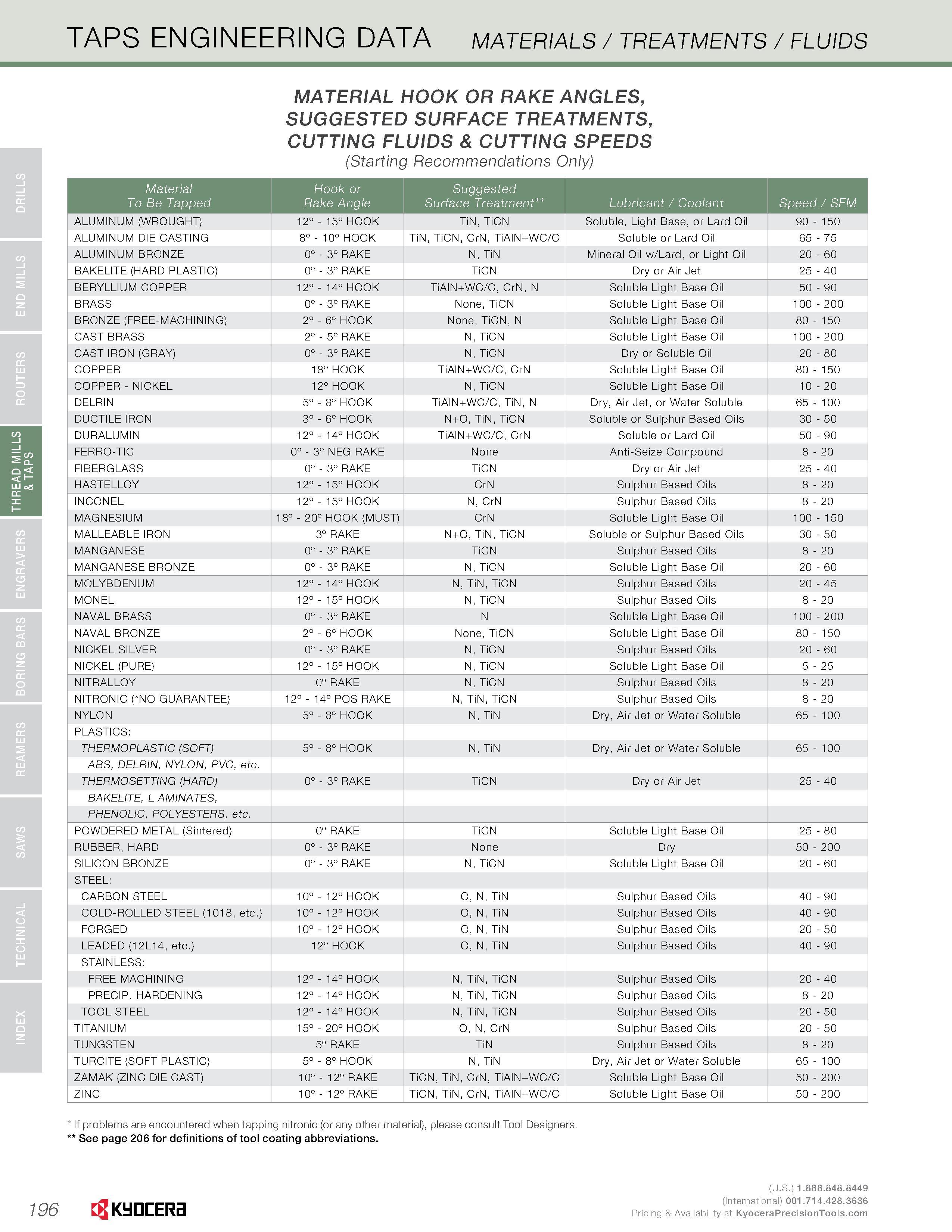

TAPS ENGINEERING DATA materials / treatments / fluids MATERIAL HOOK OR RAKE ANGLES, SUGGESTED SURFACE TREATMENTS, CUTTING FLUIDS & CUTTING SPEEDS (Starting Recommendations Only) Material To Be Tapped Hook or Rake Angle Suggested Surface Treatment Lubricant / Coolant Speed / SFM ALUMINUM (WROUGHT) 12° - 15° HOOK TiN, TiCN Soluble, Light Base, or Lard Oil 90 - 150 ALUMINUM DIE CASTING 8° - 10° HOOK TiN, TiCN, CrN, TiAlN+WC/C Soluble or Lard Oil 65 - 75 ALUMINUM BRONZE 0° - 3° RAKE N, TiN Mineral Oil w/Lard, or Light Oil 20 - 60 BAKELITE (HARD PLASTIC) 0° - 3° RAKE TiCN Dry or Air Jet 25 - 40 BERYLLIUM COPPER 12° - 14° HOOK TiAlN+WC/C, CrN, N Soluble Light Base Oil 50 - 90 BRASS 0° - 3° RAKE None, TiCN Soluble Light Base Oil 100 - 200 BRONZE (FREE-MACHINING) 2° - 6° HOOK None, TiCN, N Soluble Light Base Oil 80 - 150 CAST BRASS 2° - 5° RAKE N, TiCN Soluble Light Base Oil 100 - 200 CAST IRON (GRAY) 0° - 3° RAKE N, TiCN Dry or Soluble Oil 20 - 80 COPPER 18° HOOK TiAlN+WC/C, CrN Soluble Light Base Oil 80 - 150 COPPER - NICKEL 12° HOOK N, TiCN Soluble Light Base Oil 10 - 20 DELRIN 5° - 8° HOOK TiAlN+WC/C, TiN, N Dry, Air Jet, or Water Soluble 65 - 100 DUCTILE IRON 3° - 6° HOOK N+O, TiN, TiCN Soluble or Sulphur Based Oils 30 - 50 DURALUMIN 12° - 14° HOOK TiAlN+WC/C, CrN Soluble or Lard Oil 50 - 90 FERRO-TIC 0° - 3° NEG RAKE None Anti-Seize Compound 8 - 20 FIBERGLASS 0° - 3° RAKE TiCN Dry or Air Jet 25 - 40 HASTELLOY 12° - 15° HOOK CrN Sulphur Based Oils 8 - 20 INCONEL 12° - 15° HOOK N, CrN Sulphur Based Oils 8 - 20 MAGNESIUM 18° - 20° HOOK (MUST) CrN Soluble Light Base Oil 100 - 150 MALLEABLE IRON 3° RAKE N+O, TiN, TiCN Soluble or Sulphur Based Oils 30 - 50 MANGANESE 0° - 3° RAKE TiCN Sulphur Based Oils 8 - 20 MANGANESE BRONZE 0° - 3° RAKE N, TiCN Soluble Light Base Oil 20 - 60 MOLYBDENUM 12° - 14° HOOK N, TiN, TiCN Sulphur Based Oils 20 - 45 MONEL 12° - 15° HOOK N, TiCN Sulphur Based Oils 8 - 20 NAVAL BRASS 0° - 3° RAKE N Soluble Light Base Oil 100 - 200 NAVAL BRONZE 2° - 6° HOOK None, TiCN Soluble Light Base Oil 80 - 150 NICKEL SILVER 0° - 3° RAKE N, TiCN Sulphur Based Oils 20 - 60 NICKEL (PURE) 12° - 15° HOOK N, TiCN Soluble Light Base Oil 5 - 25 NITRALLOY 0° RAKE N, TiCN Sulphur Based Oils 8 - 20 NITRONIC ( NO GUARANTEE) 12° - 14° POS RAKE N, TiN, TiCN Sulphur Based Oils 8 - 20 NYLON 5° - 8° HOOK N, TiN Dry, Air Jet or Water Soluble 65 - 100 PLASTICS: THERMOPLASTIC (SOFT) 5° - 8° HOOK N, TiN Dry, Air Jet or Water Soluble 65 - 100 ABS, DELRIN, NYLON, PVC, etc. THERMOSETTING (HARD) 0° - 3° RAKE TiCN Dry or Air Jet 25 - 40 BAKELITE, L AMINATES, PHENOLIC, POLYESTERS, etc. POWDERED METAL (Sintered) 0° RAKE TiCN Soluble Light Base Oil 25 - 80 RUBBER, HARD 0° - 3° RAKE None Dry 50 - 200 SILICON BRONZE 0° - 3° RAKE N, TiCN Soluble Light Base Oil 20 - 60 STEEL: CARBON STEEL 10° - 12° HOOK O, N, TiN Sulphur Based Oils 40 - 90 COLD-ROLLED STEEL (1018, etc.) 10° - 12° HOOK O, N, TiN Sulphur Based Oils 40 - 90 FORGED 10° - 12° HOOK O, N, TiN Sulphur Based Oils 20 - 50 LEADED (12L14, etc.) 12° HOOK O, N, TiN Sulphur Based Oils 40 - 90 STAINLESS: FREE MACHINING 12° - 14° HOOK N, TiN, TiCN Sulphur Based Oils 20 - 40 PRECIP. HARDENING 12° - 14° HOOK N, TiN, TiCN Sulphur Based Oils 8 - 20 TOOL STEEL 12° - 14° HOOK N, TiN, TiCN Sulphur Based Oils 20 - 50 TITANIUM 15° - 20° HOOK O, N, CrN Sulphur Based Oils 20 - 50 TUNGSTEN 5° RAKE TiN Sulphur Based Oils 8 - 20 TURCITE (SOFT PLASTIC) 5° - 8° HOOK N, TiN Dry, Air Jet or Water Soluble 65 - 100 ZAMAK (ZINC DIE CAST) 10° - 12° RAKE TiCN, TiN, CrN, TiAlN+WC/C Soluble Light Base Oil 50 - 200 ZINC 10° - 12° RAKE TiCN, TiN, CrN, TiAlN+WC/C Soluble Light Base Oil 50 - 200 If problems are encountered when tapping nitronic (or any other material), please consult Tool Designers. See page 206 for definitions of tool coating abbreviations. 196 Kyocera
