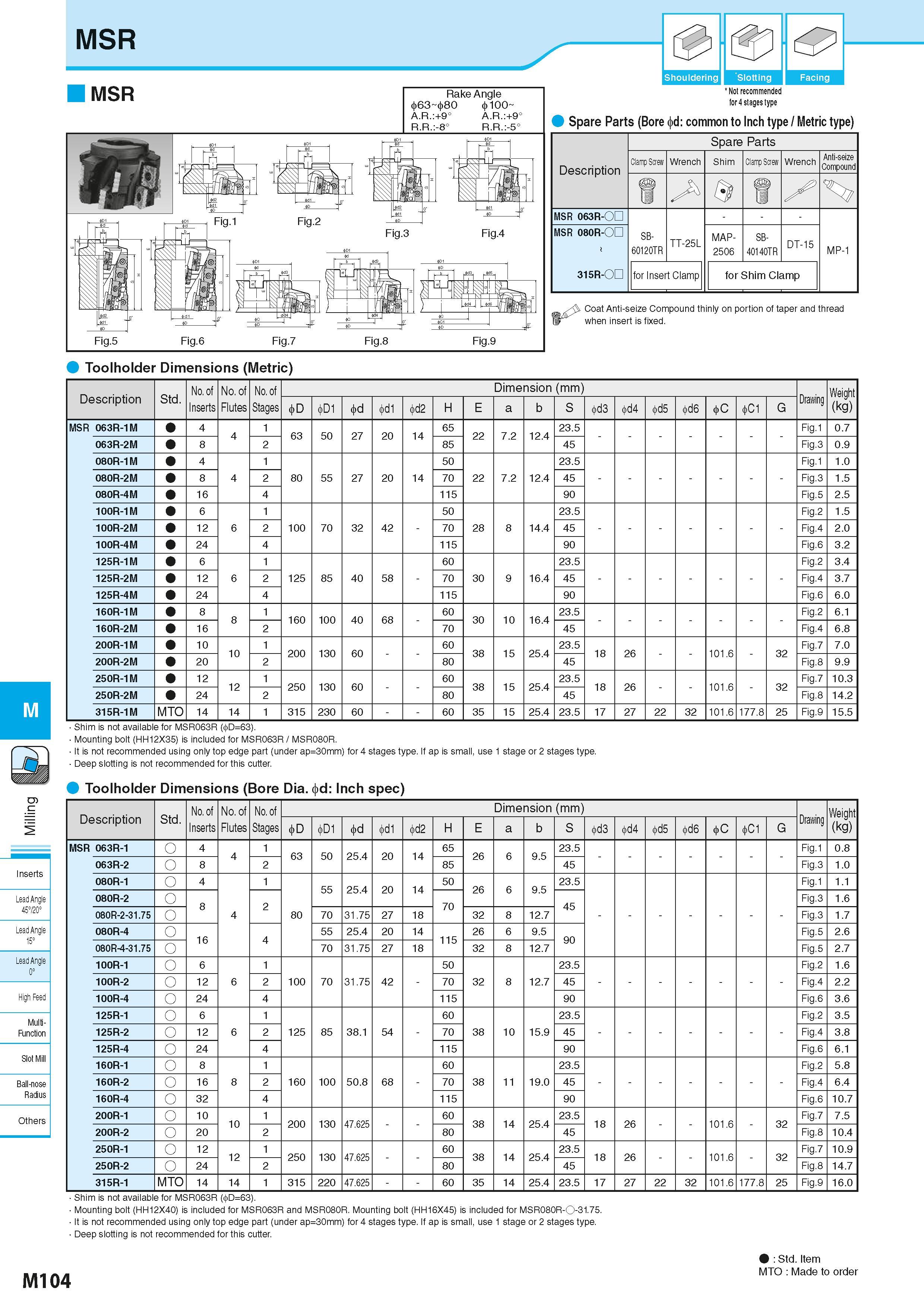

790 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M104

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M104 0790 Lab2u

M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius MSR MSR 0 & Shouldering Slotting Facing Rake Angle 63- 80 100- A.R.:+9° A.R.:+9° R.R.:-8° R.R.:-5° Not recommended for 4 stages type Spare Parts (Bore d: common to Inch type / Metric type) Spare Parts Description Clamp Screw Wrench Shim Clamp Screw Wrench Anti-seize Compound u J -a MSR 063R-O MSR 080R-O i SB- 60120TR TT-25L MAP- 2506 SB- 40140TR DT-15 MP-1 315R-O for Insert Clamp for Shim Clamp Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Toolholder Dimensions (Metric) Description Обозначение инструмента для заказа Std. No. of Inserts No. of Flutes No. of Stages Dimension (mm) Размеры инструмента указаны в мм Drawing Weight (kg) D +D1 d1 d2 H E a b S d3 d4 d5 d6 C C1 G MSR 063R-1M 4 4 63 50 27 20 14 65 22 7.2 12.4 23.5 Fig.1 0.7 063R-2M 8 2 85 45 Fig.3 0.9 080R-1M 4 4 80 55 27 20 14 50 22 7.2 12.4 23.5 Fig.1 1.0 080R-2M 8 2 70 45 Fig.3 1.5 080R-4M 16 4 115 90 Fig.5 2.5 100R-1M 6 6 100 70 32 42 50 28 8 14.4 23.5 Fig.2 1.5 100R-2M 12 2 70 45 Fig.4 2.0 100R-4M 24 4 115 90 Fig.6 3.2 125R-1M 6 6 125 85 40 58 60 30 9 16.4 23.5 Fig.2 3.4 125R-2M 12 2 70 45 Fig.4 3.7 125R-4M 24 4 115 90 Fig.6 6.0 160R-1M 8 8 160 100 40 68 60 30 10 16.4 23.5 Fig.2 6.1 160R-2M 16 2 70 45 Fig.4 6.8 200R-1M 10 10 200 130 60 60 38 15 25.4 23.5 18 26 101.6 32 Fig.7 7.0 200R-2M 20 2 80 45 Fig.8 9.9 250R-1M 12 12 250 130 60 60 38 15 25.4 23.5 18 26 101.6 32 Fig.7 10.3 250R-2M 24 2 80 45 Fig.8 14.2 315R-1M MTO 14 14 315 230 60 60 35 15 25.4 23.5 17 27 22 32 101.6 177.8 25 Fig.9 15.5 Shim is not available for MSR063R (4>D=63). Mounting bolt (HH12X35) is included for MSR063R / MSR080R. It is not recommended using only top edge part (under ap=30mm) for 4 stages type. If ap is small, use 1 stage or 2 stages type. Deep slotting is not recommended for this cutter. Toolholder Dimensions (Bore Dia. d: Inch spec) Std. No. of No. of No. of Dimension (mm) Размеры инструмента указаны в мм Drawing Weight (kg) Description Inserts Flutes Stages D +D1 d d1 d2 H E a b S d3 d4 d5 d6 C C1 G MSR 063R-1 O 4 4 63 50 25.4 20 14 65 26 6 9.5 23.5 Fig.1 0.8 063R-2 O 8 2 85 45 Fig.3 1.0 080R-1 O 4 55 25.4 20 14 50 26 6 9.5 23.5 Fig.1 1.1 080R-2 O 8 2 70 45 Fig.3 1.6 080R-2-31.75 O 4 80 70 31.75 27 18 32 8 12.7 Fig.3 1.7 080R-4 O 16 4 55 25.4 20 14 115 26 6 9.5 90 Fig.5 2.6 080R-4-31.75 O 70 31.75 27 18 32 8 12.7 Fig.5 2.7 100R-1 O 6 50 23.5 Fig.2 1.6 100R-2 O 12 6 2 100 70 31.75 42 70 32 8 12.7 45 Fig.4 2.2 100R-4 O 24 4 115 90 Fig.6 3.6 125R-1 O 6 60 23.5 Fig.2 3.5 125R-2 O 12 6 2 125 85 38.1 54 70 38 10 15.9 45 Fig.4 3.8 125R-4 O 24 4 115 90 Fig.6 6.1 160R-1 O 8 60 23.5 Fig.2 5.8 160R-2 O 16 8 2 160 100 50.8 68 70 38 11 19.0 45 Fig.4 6.4 160R-4 O 32 4 115 90 Fig.6 10.7 200R-1 O 10 10 200 130 47.625 60 38 14 25.4 23.5 18 26 101.6 32 Fig.7 7.5 200R-2 O 20 2 80 45 Fig.8 10.4 250R-1 O 12 12 250 130 47.625 60 38 14 25.4 23.5 18 26 101.6 32 Fig.7 10.9 250R-2 O 24 2 80 45 Fig.8 14.7 315R-1 MTO 14 14 315 220 47.625 60 35 14 25.4 23.5 17 27 22 32 101.6 177.8 25 Fig.9 16.0 Shim is not available for MSR063R (4>D=63). Mounting bolt (HH12X40) is included for MSR063R and MSR080R. Mounting bolt (HH16X45) is included for MSR080R-0-31.75. It is not recommended using only top edge part (under ap=30mm) for 4 stages type. If ap is small, use 1 stage or 2 stages type. Deep slotting is not recommended for this cutter. M104 Std. Item MTO Made to order
