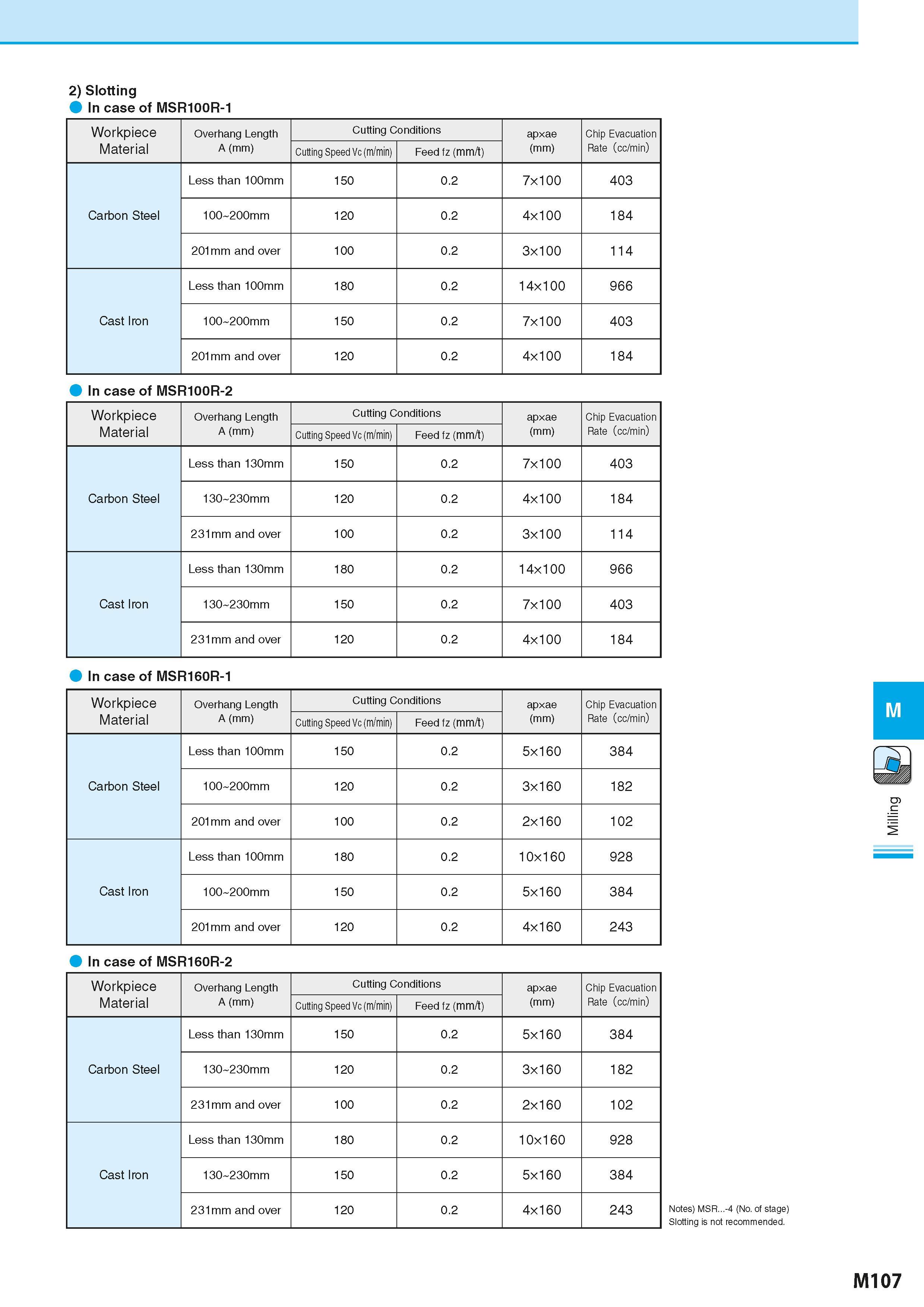

2) Slotting In case of MSR100R-1 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 100mm 150 0.2 7x100 403 Carbon Steel 100 200mm 120 0.2 4x100 184 201mm and over 100 0.2 3x100 114 Less than 100mm 180 0.2 14x100 966 Cast Iron 100 200mm 150 0.2 7x100 403 201mm and over 120 0.2 4x100 184 In case of MSR100R-2 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 130mm 150 0.2 7x100 403 Carbon Steel 130 230mm 120 0.2 4x100 184 231mm and over 100 0.2 3x100 114 Less than 130mm 180 0.2 14x100 966 Cast Iron 130 230mm 150 0.2 7x100 403 231mm and over 120 0.2 4x100 184 In case of MSR160R-1 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 100mm 150 0.2 5x160 384 Carbon Steel 100 200mm 120 0.2 3x160 182 201mm and over 100 0.2 2x160 102 Less than 100mm 180 0.2 10x160 928 Cast Iron 100 200mm 150 0.2 5x160 384 201mm and over 120 0.2 4x160 243 In case of MSR160R-2 Workpiece Overhang Length Cutting Conditions apxae Chip Evacuation Material A (mm) Cutting Speed Vc (m/min) Feed fz (mm/t) (mm) Rate (cc/min) Less than 130mm 150 0.2 5x160 384 Carbon Steel 130 230mm 120 0.2 3x160 182 231mm and over 100 0.2 2x160 102 Less than 130mm 180 0.2 10x160 928 Cast Iron 130 230mm 150 0.2 5x160 384 231mm and over 120 0.2 4x160 243 Notes) MSR...-4 (No. of stage) Slotting is not recommended. M107
