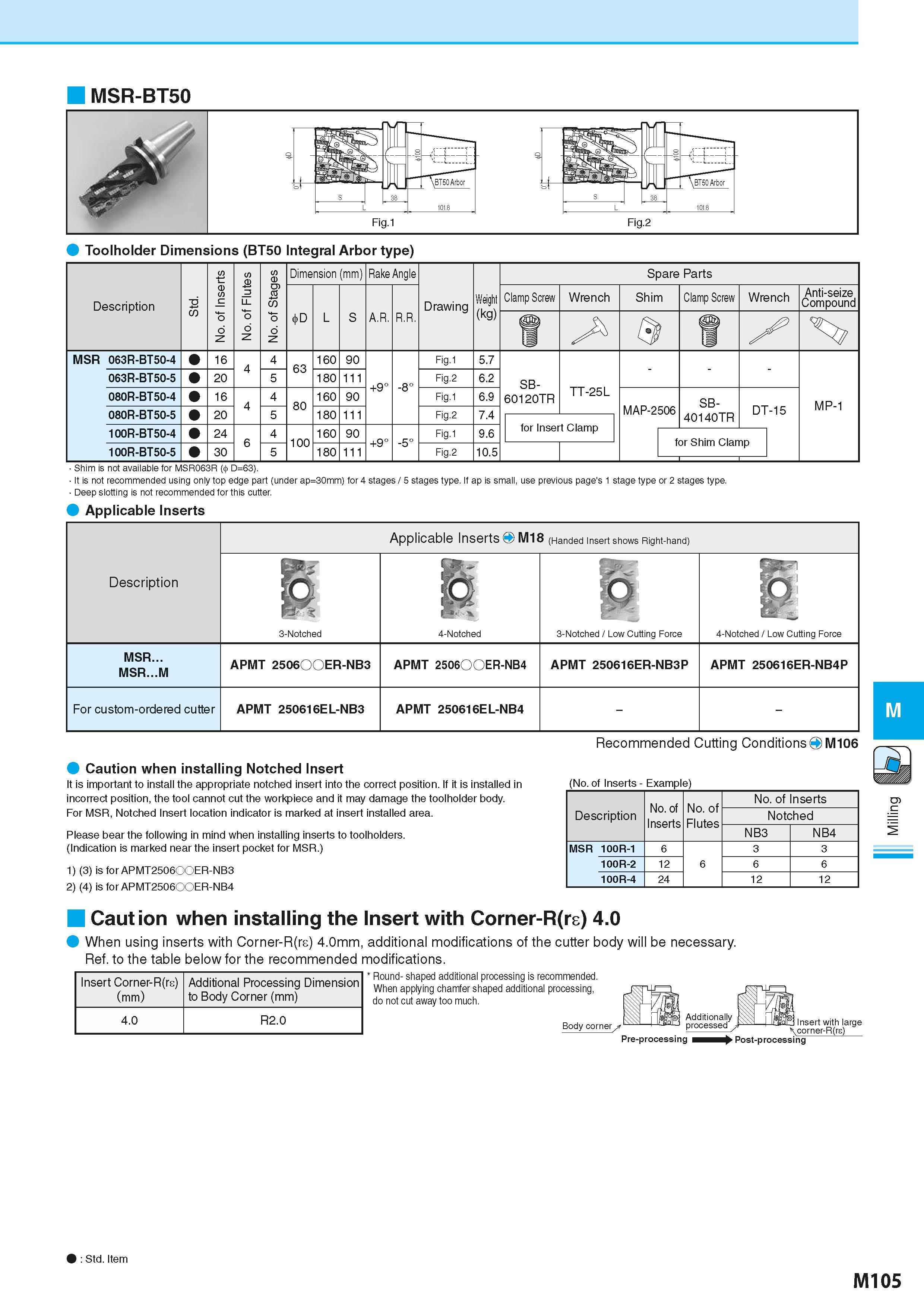

MSR-BT50 Toolholder Dimensions (BT50 Integral Arbor type) Description TD er (A C of o N No. of Flutes No. of Stages Dimension (mm) Размеры инструмента указаны в мм Rake Angle Drawing Weight (kg) Spare Parts D L S A.R. R.R. Clamp Screw Wrench Shim Clamp Screw Wrench Anti-seize Compound u & u MSR 063R-BT50-4 16 4 4 63 160 90 +9° -8° Fig.1 5.7 SB- 60120TR TT-25L - MP-1 063R-BT50-5 20 5 180 111 Fig.2 6.2 080R-BT50-4 16 4 4 80 160 90 Fig.1 6.9 MAP-2506 SB- 40140TR DT-15 080R-BT50-5 20 5 180 111 Fig.2 7.4 100R-BT50-4 24 6 4 100 160 90 +9° -5° Fig.1 9.6 for Insert Clamp 100R-BT50-5 30 5 180 111 Fig.2 10.5 Shim is not available for MSR063R D=63). It is not recommended using only top edge part (under ap=30mm) for 4 stages / 5 stages type. If ap is small, use previous page's 1 stage type or 2 stages type. Deep slotting is not recommended for this cutter Applicable Inserts Description Applicable Inserts O M18 (Handed Insert shows Right-hand) 3-Notched 4-Notched 3-Notched / Low Cutting Force 4-Notched / Low Cutting Force MSR... MSR...M APMT 2506OOER-NB3 APMT 2506OOER-NB4 APMT 250616ER-NB3P APMT 250616ER-NB4P For custom-ordered cutter APMT 250616EL-NB3 APMT 250616EL-NB4 Caution when installing Notched Insert It is important to install the appropriate notched insert into the correct position. If it is installed in incorrect position, the tool cannot cut the workpiece and it may damage the toolholder body. For MSR, Notched Insert location indicator is marked at insert installed area. Please bear the following in mind when installing inserts to toolholders. (Indication is marked near the insert pocket for MSR.) 1) (3) is for APMT2506OOER-NB3 2) (4) is for APMT2506OOER-NB4 Recommended Cutting ConditionsO M106 (No. of Inserts - Example) Description No. of Inserts No. of Flutes No. of Inserts Notched NB3 NB4 MSR 100R-1 6 6 3 3 100R-2 12 6 6 100R-4 24 12 12 Caution when installing the Insert with Corner-R(rs) 4.0 When using inserts with Comer-R(re) 4.0mm, additional modifications of the cutter body will be necessary. Ref. to the table below for the recommended modifications. Insert Corner-R(rs) (mm) Additional Processing Dimension to Body Corner (mm) 4.0 R2.0 r Round- shaped additional processing is recommended. When applying chamfer shaped additional processing. do not cut away too much. Additionally processed Pre-processing i Insert with large \corner-R(rs) Post-processing M Std. Item M105
