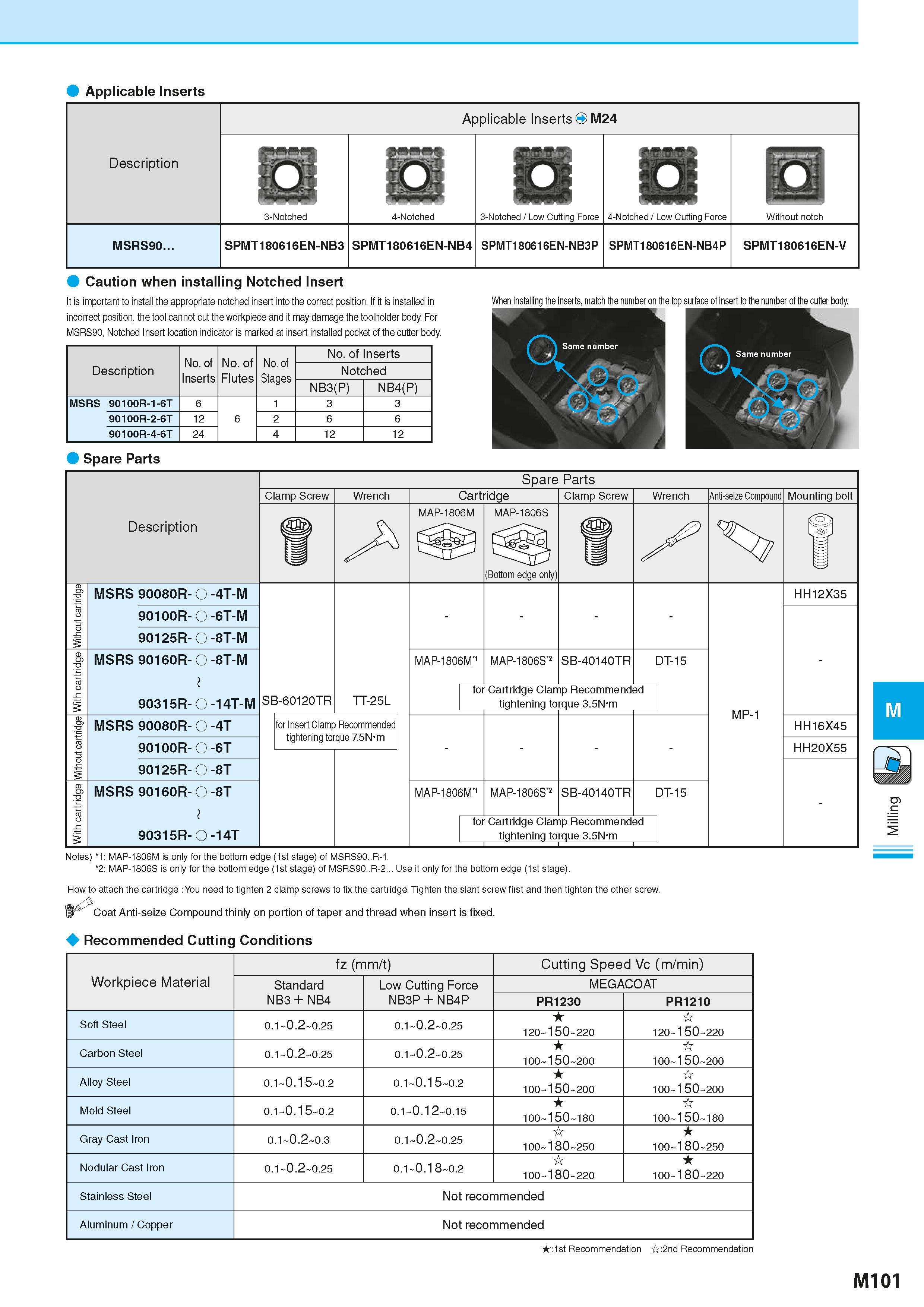

Applicable Inserts Description Applicable Inserts O M24 3-Notched / Low Cutting Force 4-Notched / Low Cutting Force Without notch MSRS90... SPMT180616EN-NB3 SPMT180616EN-NB4 SPMT180616EN-NB3P SPMT180616EN-NB4P SPMT180616EN-V Caution when installing Notched Insert It is important to install the appropriate notched insert into the correct position. If it is installed in incorrect position, the tool cannot cut the workpiece and it may damage the toolholder body. For MSRS90, Notched Insert location indicator is marked at insert installed pocket of the cutter body Description No. of Inserts No. of Flutes No. of Stages No. of Inserts Notched NB3(P) NB4(P) MSRS 90100R-1-6T 6 6 1 3 3 90100R-2-6T 12 2 6 6 90100R-4-6T 24 4 12 12 When installing the inserts, match the number on the top surface of insert to the number of the cutter body Spare Parts 2: MAP-1806S is only for the bottom edge (1st stage) of MSRS90..R-2... Use it only for the bottom edge (1st stage). How to attach the cartridge You need to tighten 2 clamp screws to fix the cartridge. Tighten the slant screw first and then tighten the other screw. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions M Workpiece Material fz (mm/t) Cutting Speed Vc (m/min) Standard NB3+ NB4 Low Cutting Force NB3P+NB4P MEGACOAT PR1230 PR1210 Soft Steel 0.1 0.2 0.25 0.1 0.2 0.25 120 150 220 120 150 220 Carbon Steel 0.1 0.2 0.25 0.1 0.2 0.25 100 150 200 100 150 200 Alloy Steel 0.1 0.15 0.2 0.1 0.15 0.2 100 150 200 100 150 200 Mold Steel 0.1 0.15 0.2 0.1 0.12 0.15 100 150 180 100 150 180 Gray Cast Iron 0.1 0.2 0.3 0.1 0.2 0.25 100 180 250 100 180 250 Nodular Cast Iron 0.1 0.2 0.25 0.1 0.18 0.2 100 180 220 100 180 220 Stainless Steel Not recommended Aluminum / Copper Not recommended :1st Recommendation :2nd Recommendation M101
