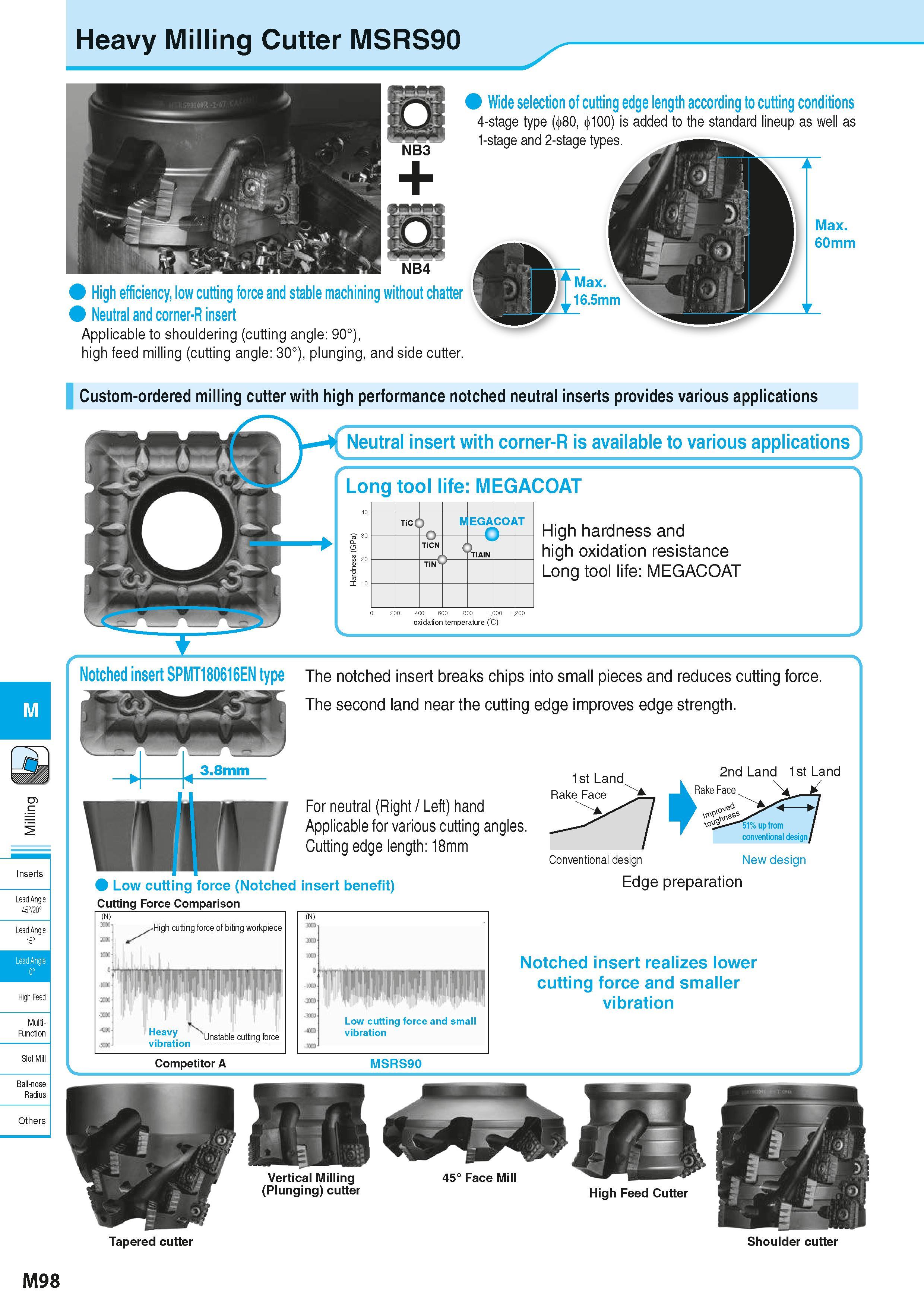

Lead Angle 45720° Lead Angle 15° High Feec Multi- Function Ball-nose Radius Heavy Milling Cutter MSRS90 Wide selection of cutting edge length according to cutting conditions 4-stage type ( 80, 100) is added to the standard lineup as well as 1-stage and 2-stage types. High efficiency, low cutting force and stable machining without chatter Neutral and corner-R insert Applicable to shouldering (cutting angle: 90°), high feed milling (cutting angle: 30°), plunging, and side cutter. Max. 16.5mm Max. 60mm Custom-ordered milling cutter with high performance notched neutral inserts provides various applications r Neutral insert with corner-R is available to various applications Long tool life: MEGACOAT TiC M EG. COA T TiCN C TiAIN 9 TiN High hardness and high oxidation resistance Long tool life: MEGACOAT 0 200 400 600 800 1,000 1,200 oxidation temperature ( ) Notched insert SPMT180616EN type The notched insert breaks chips into small pieces and reduces cutting force. The second land near the cutting edge improves edge strength. For neutral (Right / Left) hand Applicable for various cutting angles. Cutting edge length: 18mm 1st Land Rake Face 2nd Land 1st Land Rake Face < / Low cutting force (Notched insert benefit) Cutting Force Comparison High cutting force of biting workpiece Conventional design New design Edge preparation wnwifTT Notched insert realizes lower cutting force and smaller vibration Competitor A MSRS90 Tapered cutter Shoulder cutter 40 3C 20 Slot Mi M98
