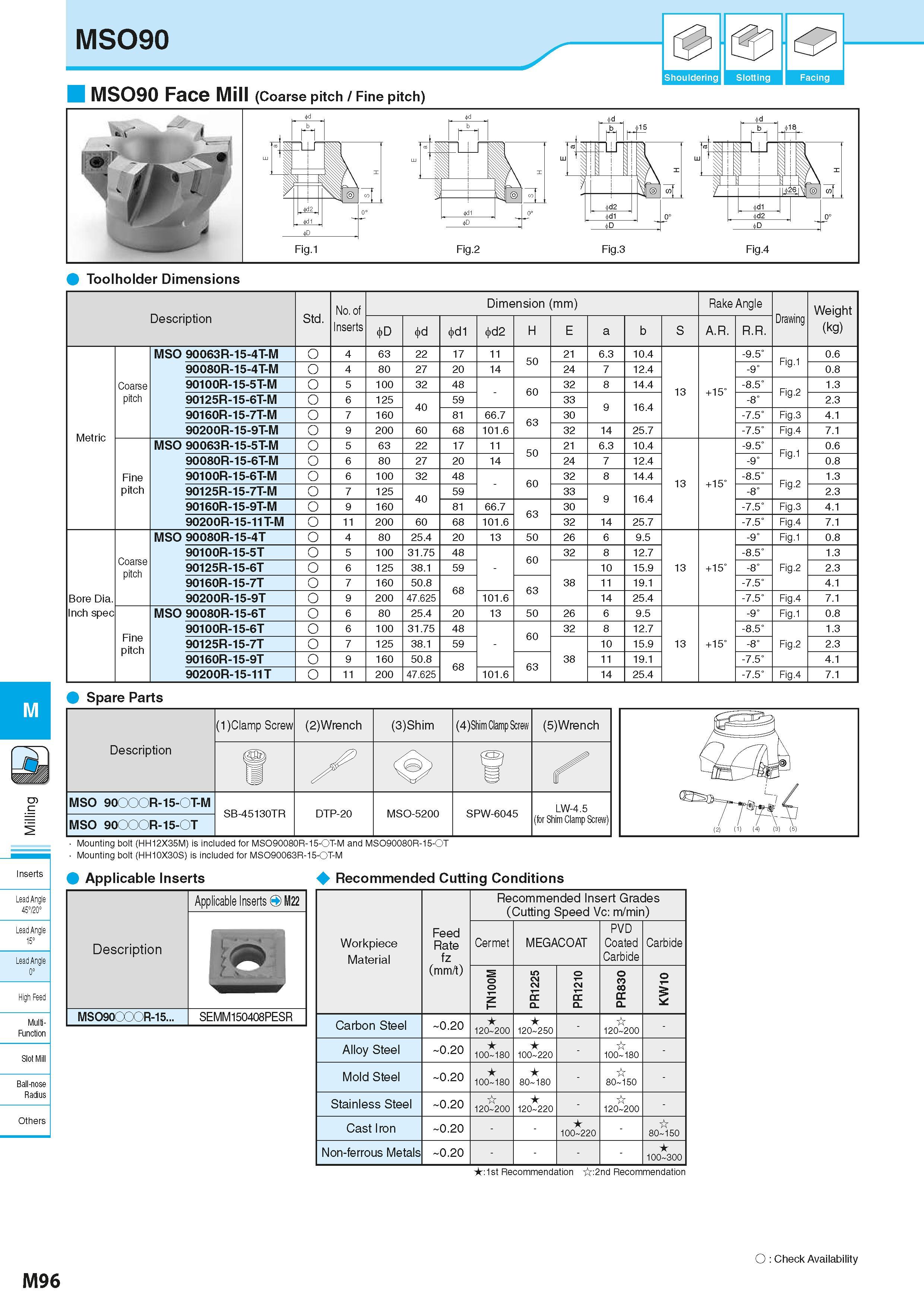

782 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M96

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M96 0782 Lab2u

M S Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius MSO90 MSO90 Face Mill (Coarse pitch / Fine pitch) & 5 & Shouldering Slotting Facing Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Dimension (mm) Размеры инструмента указаны в мм Rake Angle Drawing Weight (kg) Inserts D d1 d2 H E a b S A.R. R.R. MSO 90063R-15-4T-M O 4 63 22 17 11 50 21 6.3 10.4 -9.5° Fig.1 0.6 90080R-15-4T-M O 4 80 27 20 14 24 7 12.4 -9° 0.8 Coarse 90100R-15-5T-M O 5 100 32 48 60 32 8 14.4 13 +15° -8.5° Fig.2 1.3 pitch 90125R-15-6T-M O 6 125 40 59 33 9 16.4 -8° 2.3 90160R-15-7T-M O 7 160 81 66.7 63 30 -7.5° Fig.3 4.1 Metric 90200R-15-9T-M O 9 200 60 68 101.6 32 14 25.7 -7.5° Fig.4 7.1 MSO 90063R-15-5T-M O 5 63 22 17 11 50 21 6.3 10.4 -9.5° Fig.1 0.6 90080R-15-6T-M O 6 80 27 20 14 24 7 12.4 -9° 0.8 Fine 90100R-15-6T-M O 6 100 32 48 60 32 8 14.4 13 +15° -8.5° Fig.2 1.3 pitch 90125R-15-7T-M O 7 125 40 59 33 9 16.4 -8° 2.3 90160R-15-9T-M O 9 160 81 66.7 63 30 -7.5° Fig.3 4.1 90200R-15-11T-M O 11 200 60 68 101.6 32 14 25.7 -7.5° Fig.4 7.1 MSO 90080R-15-4T O 4 80 25.4 20 13 50 26 6 9.5 -9° Fig.1 0.8 Coarse pitch 90100R-15-5T O 5 100 31.75 48 60 32 8 12.7 -8.5° 1.3 90125R-15-6T O 6 125 38.1 59 10 15.9 13 +15° -8° Fig.2 2.3 90160R-15-7T O 7 160 50.8 68 63 38 11 19.1 -7.5° 4.1 Bore Dia. 90200R-15-9T O 9 200 47.625 101.6 14 25.4 -7.5° Fig.4 7.1 Inch spec MSO 90080R-15-6T O 6 80 25.4 20 13 50 26 6 9.5 -9° Fig.1 0.8 Fine pitch 90100R-15-6T O 6 100 31.75 48 60 32 8 12.7 -8.5° 1.3 90125R-15-7T O 7 125 38.1 59 10 15.9 13 +15° -8° Fig.2 2.3 90160R-15-9T O 9 160 50.8 68 63 38 11 19.1 -7.5° 4.1 90200R-15-11T O 11 200 47.625 101.6 14 25.4 -7.5° Fig.4 7.1 Spare Parts (1)Clamp Screw (2)Wrench (3)Shim (4)Shim Clamp Screw (5)Wrench Description u c ,) MSO 90OOOR-15-OT-M SB-45130TR DTP-20 MS0-5200 SPW-6045 LW-4.5 MSO 90OOOR-15-OT (lor Shim Clamp Screw) Mounting bolt (HH12X35M) is included for MSO90080R-15-OT-M and MSO90080R-15-OT Mounting bolt (HH10X30S) is included for MSO90063R-15-OT-M Applicable Inserts Recommended Cutting Conditions Description MSO90OOOR-15... Applicable Inserts O M22 SEMM150408PESR Workpiece Material Feed Rate fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) Cermet MEGACOAT PVD Coated Carbide Carbide TN100M PR1225 PR1210 PR830 KW10 Carbon Steel 0.20 120 200 120 250 120 200 Alloy Steel 0.20 100 180 100 220 0 18 3 10 Mold Steel 0.20 100 180 80 180 80 150 Stainless Steel 0.20 120 200 120 220 120 200 Cast Iron 0.20 100 220 80 150 Non-ferrous Metals 0.20 100 300 :1st Recommendation :2nd Recommendation M96 O Check Availability
