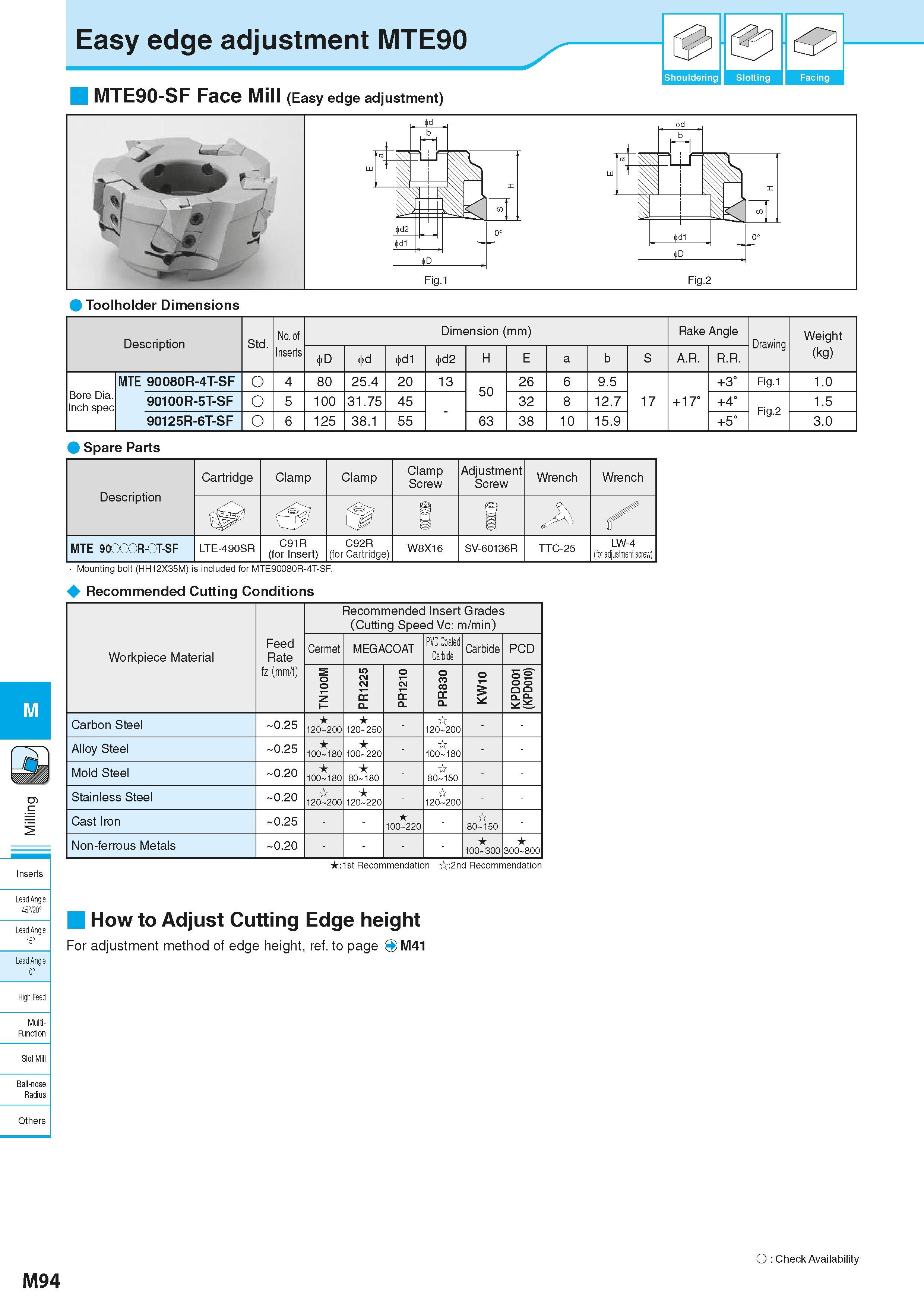

Easy edge adjustment MTE90 MTE90-SF Face Mill (Easy edge adjustment) 5 & Shouldering Slotting Facing Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Drawing Weight (kg) D d1 d2 H E a b S A.R. R.R. Bore Dia. Inch spec MTE 90080R-4T-SF O 4 80 25.4 20 13 50 26 6 9.5 17 +17° +3° Fig.1 1.0 90100R-5T-SF O 5 100 31.75 45 - 32 8 12.7 +4° Fig.2 1.5 90125R-6T-SF O 6 125 38.1 55 63 38 10 15.9 +5° 3.0 Spare Parts Description Cartridge Clamp Clamp Clamp Screw Adjustment Screw Wrench Wrench 0 ti i MTE 90OOOR-OT-SF LTE-490SR C91R (for Insert) C92R (for Cartridge) W8X16 SV-60136R TTC-25 LW-4 (lor adjustment screw) Mounting bolt (HH12X35M) is included for MTE90080R-4T-SF. Recommended Cutting Conditions M Inserts Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius Others Workpiece Material Feed Rate fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) Cermet MEGACOAT PVD Coated Carbide Carbide PCD TN100M PR1225 PR1210 PR830 KW10 KPD001 (KPD010) Carbon Steel 0.25 120 200 120 250 120 200 Alloy Steel 0.25 100 180 100 220 100 180 Mold Steel 0.20 100 180 80 180 0 5 0 8 Stainless Steel 0.20 120 200 120 220 120 200 Cast Iron 0.25 100 220 80 150 Non-ferrous Metals 0.20 100 300 300 800 :1st Recommendation :2nd Recommendation How to Adjust Cutting Edge height For adjustment method of edge height, ref. to page OM41 M94 O Check Availability
