631 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.L17

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. L17 0631 Lab2u

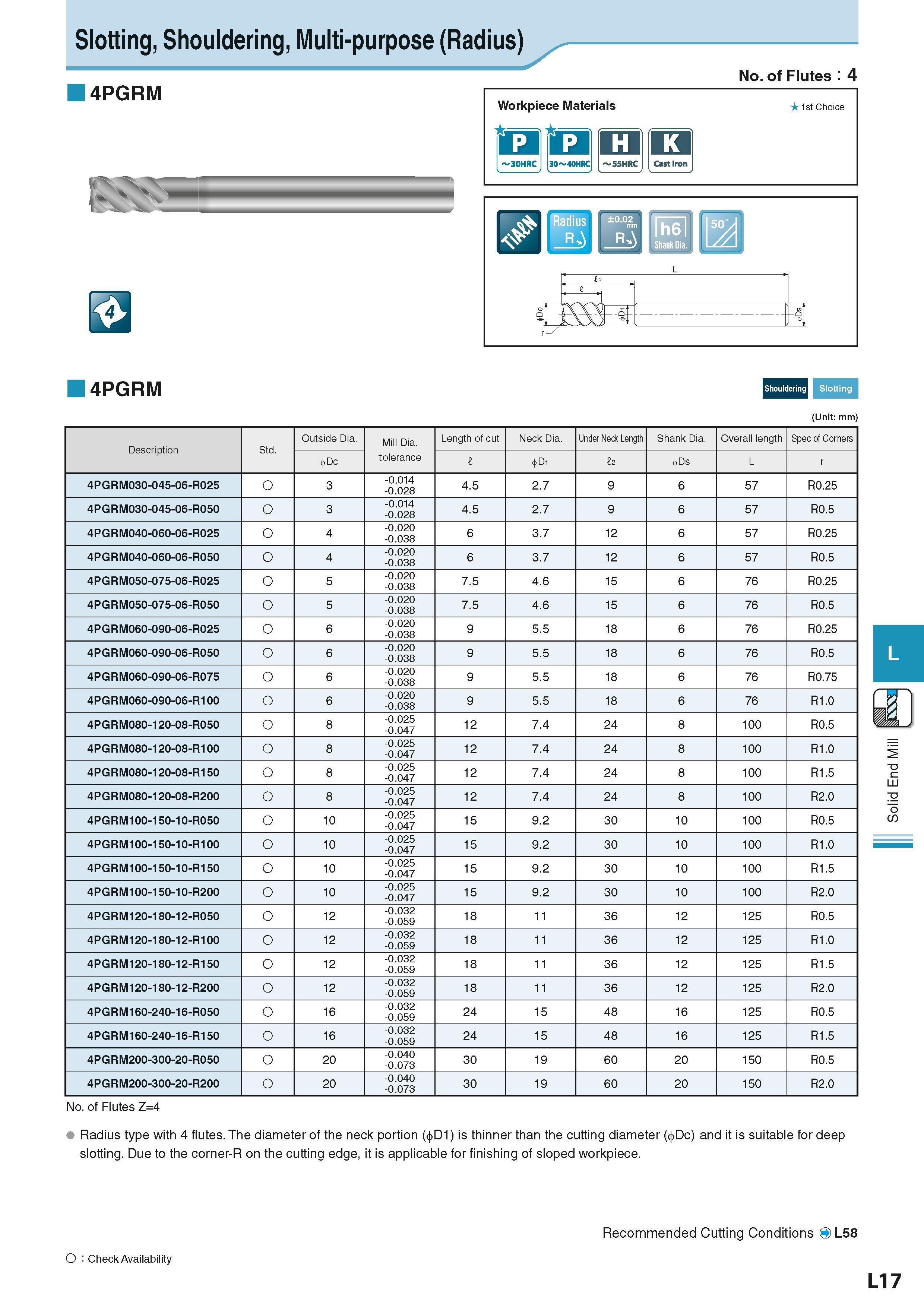

Slotting, Shouldering, Multi-purpose (Radius) 4PGRM Workpiece Materials Группы обрабатываемых материалов по ISO train r H 1 h: 55HRCJ No. of Flutes 4 1st Choice 1 Radius l R 4PGRM Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length Spec of Corners Dc I D1 12 Ds L r 4PGRM030-045-06-R025 O 3 -0.014 -0.028 4.5 2.7 9 6 57 R0.25 4PGRM030-045-06-R050 O 3 -0.014 -0.028 4.5 2.7 9 6 57 R0.5 4PGRM040-060-06-R025 O 4 -0.020 -0.038 6 3.7 12 6 57 R0.25 4PGRM040-060-06-R050 O 4 -0.020 -0.038 6 3.7 12 6 57 R0.5 4PGRM050-075-06-R025 O 5 -0.020 -0.038 7.5 4.6 15 6 76 R0.25 4PGRM050-075-06-R050 O 5 -0.020 -0.038 7.5 4.6 15 6 76 R0.5 4PGRM060-090-06-R025 O 6 -0.020 -0.038 9 5.5 18 6 76 R0.25 4PGRM060-090-06-R050 O 6 -0.020 -0.038 9 5.5 18 6 76 R0.5 4PGRM060-090-06-R075 O 6 -0.020 -0.038 9 5.5 18 6 76 R0.75 4PGRM060-090-06-R100 O 6 -0.020 -0.038 9 5.5 18 6 76 R1.0 4PGRM080-120-08-R050 O 8 -0.025 -0.047 12 7.4 24 8 100 R0.5 4PGRM080-120-08-R100 O 8 -0.025 -0.047 12 7.4 24 8 100 R1.0 4PGRM080-120-08-R150 O 8 -0.025 -0.047 12 7.4 24 8 100 R1.5 4PGRM080-120-08-R200 O 8 -0.025 -0.047 12 7.4 24 8 100 R2.0 4PGRM100-150-10-R050 O 10 -0.025 -0.047 15 9.2 30 10 100 R0.5 4PGRM100-150-10-R100 O 10 -0.025 -0.047 15 9.2 30 10 100 R1.0 4PGRM100-150-10-R150 O 10 -0.025 -0.047 15 9.2 30 10 100 R1.5 4PGRM100-150-10-R200 O 10 -0.025 -0.047 15 9.2 30 10 100 R2.0 4PGRM120-180-12-R050 O 12 -0.032 -0.059 18 11 36 12 125 R0.5 4PGRM120-180-12-R100 O 12 -0.032 -0.059 18 11 36 12 125 R1.0 4PGRM120-180-12-R150 O 12 -0.032 -0.059 18 11 36 12 125 R1.5 4PGRM120-180-12-R200 O 12 -0.032 -0.059 18 11 36 12 125 R2.0 4PGRM160-240-16-R050 O 16 -0.032 -0.059 24 15 48 16 125 R0.5 4PGRM160-240-16-R150 O 16 -0.032 -0.059 24 15 48 16 125 R1.5 4PGRM200-300-20-R050 O 20 -0.040 -0.073 30 19 60 20 150 R0.5 4PGRM200-300-20-R200 O 20 -0.040 -0.073 30 19 60 20 150 R2.0 No. of Flutes Z=4 Radius type with 4 slotting. Due to the flutes. The diameter of the neck portion (4>D1) is thinner than the cutting diameter (4>Dc) and it is suitable for deep corner-R on the cutting edge, it is applicable for finishing of sloped workpiece. Recommended Cutting Conditions OL58 O Check Availability L L17 Solid End Mill
