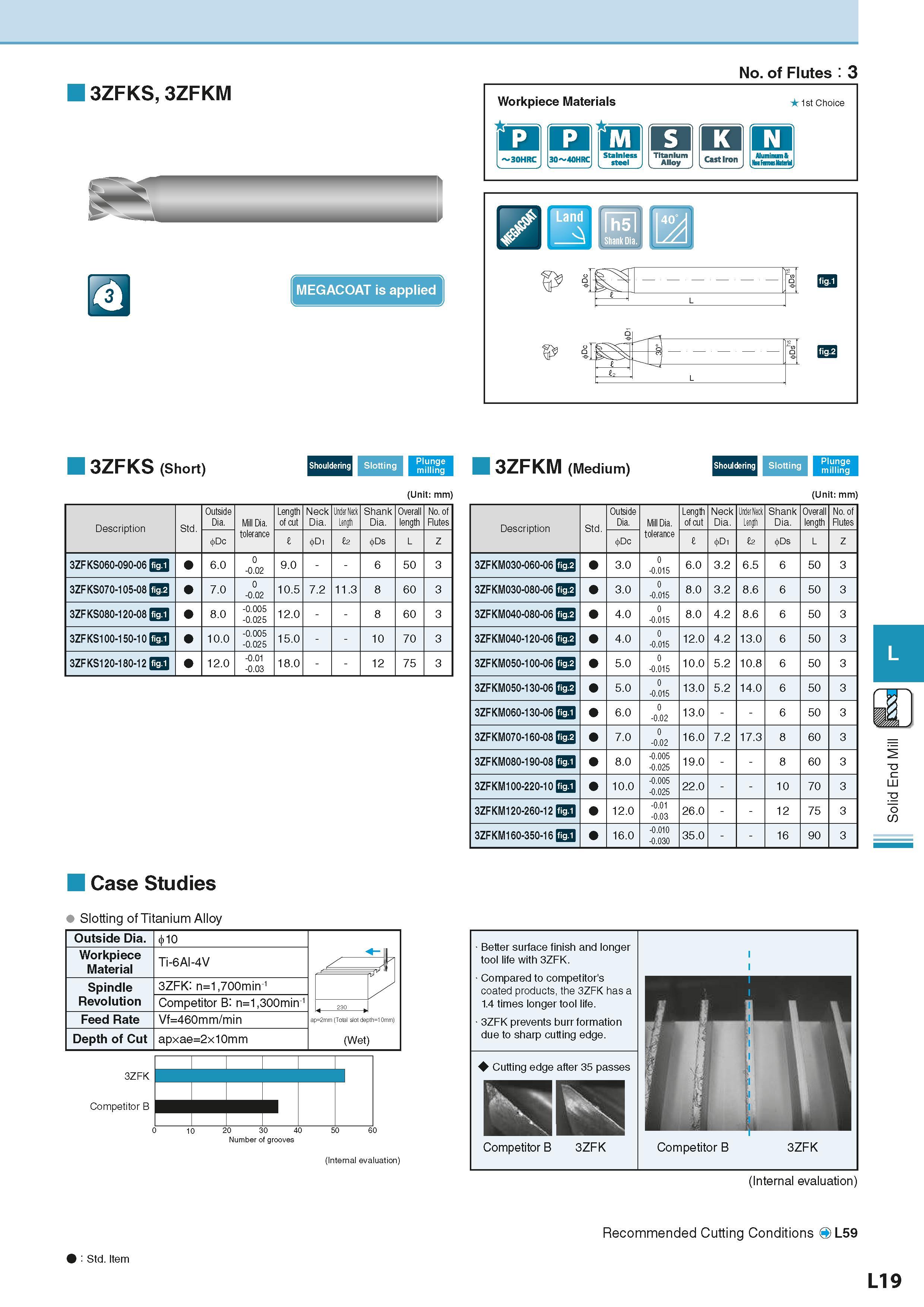

3ZFKS, 3ZFKM MEGACOAT is applied No. of Flutes 3 Workpiece Materials Группы обрабатываемых материалов по ISO ftaiaifef 1st Choice Stainless Titanium steel J Alloy Q La5 I fh5l I Shank Dia. fig.2 3ZFKS (Short) Shoulderi"g S otting mZ£ (Unit: mm) 3ZFKM (Medium) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Ne:k Length Shank Dia. Overall length No. of Flutes 4>Dc I D1 £2 4>Ds L Z 3ZFKS060-090-06 fig.1 6.0 0 -0.02 9.0 6 50 3 3ZFKS070-105-08 fig.2 7.0 0 -0.02 10.5 7.2 11.3 8 60 3 3ZFKS080-120-08 fig.1 8.0 -0.005 -0.025 12.0 8 60 3 3ZFKS100-150-10 fig.1 10.0 -0.005 -0.025 15.0 10 70 3 3ZFKS120-180-12 fig.1 12.0 -0.01 -0.03 18.0 12 75 3 (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes 4>Dc I D1 £2 4>Ds L Z 3ZFKM030-060-06 fig.2 3.0 0 -0.015 6.0 3.2 6.5 6 50 3 3ZFKM030-080-06 fig.2 3.0 0 -0.015 8.0 3.2 8.6 6 50 3 3ZFKM040-080-06 fig.2 4.0 0 -0.015 8.0 4.2 8.6 6 50 3 3ZFKM040-120-06 fig.2 4.0 0 -0.015 12.0 4.2 13.0 6 50 3 3ZFKM050-100-06 fig.2 5.0 0 -0.015 10.0 5.2 10.8 6 50 3 3ZFKM050-130-06 fig.2 5.0 0 -0.015 13.0 5.2 14.0 6 50 3 3ZFKM060-130-06 fig.1 6.0 0 -0.02 13.0 6 50 3 3ZFKM070-160-08 fig.2 7.0 0 -0.02 16.0 7.2 17.3 8 60 3 3ZFKM080-190-08 fig.1 8.0 -0.005 -0.025 19.0 8 60 3 3ZFKM100-220-10 fig.1 10.0 -0.005 -0.025 22.0 10 70 3 3ZFKM120-260-12 fig.1 12.0 -0.01 -0.03 26.0 12 75 3 3ZFKM160-350-16 fig.1 16.0 -0.010 -0.030 35.0 16 90 3 Case Studies Slotting of Titanium Alloy Outside Dia. Workpiece Material Spindle Revolution Feed Rate Depth of Cut < 10 Ti-6Al-4V 3ZFK: n=1,700min-1 Competitor B: n=1,300min-1 Vf=460mm/min apxae=2x10mm ap=2mm (Total slot depth=10mm) (Wet) 3ZFK Competitor B 0 20 30 40 Number of grooves (Internal evaluation) Better surface finish and longer tool life with 3ZFK. Compared to competitor's coated products, the 3ZFK has a 1.4 times longer tool life. 3ZFK prevents burr formation due to sharp cutting edge. Cutting edge after 35 passes Competitor B 3ZFK Competitor B 3ZFK (Internal evaluation) Recommended Cutting Conditions OL59 Std. Item 50 60 10 L19 Solid End Mill
