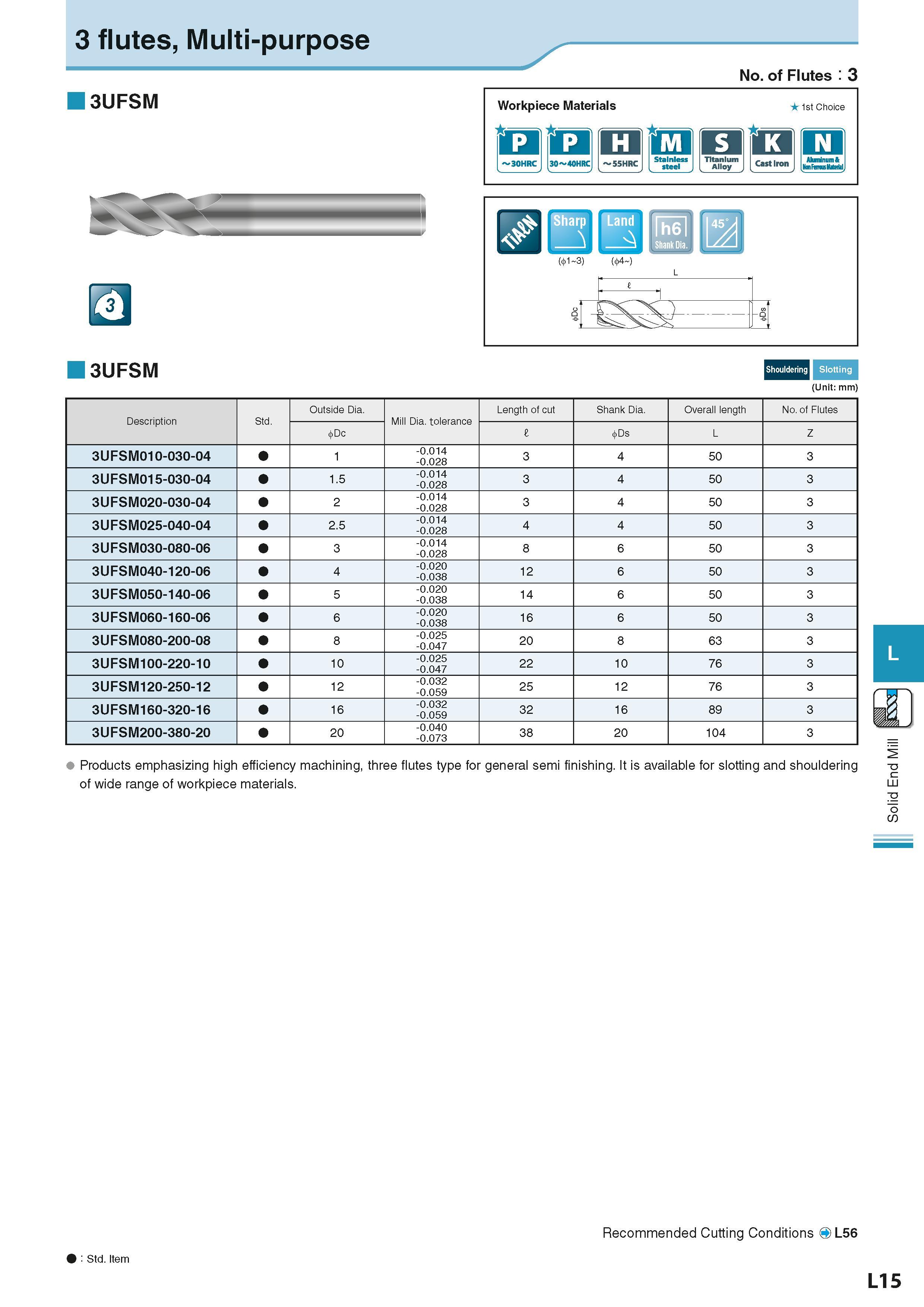

3 flutes, Multi-purpose No. of Flutes 3 3UFSM 3UFSM Workpiece Materials Группы обрабатываемых материалов по ISO fata 1st Choice Stainless steel Titanium Alloy (< >1 3) (0 ) . . -Q Shouldering Slotting (Unit: mm) L Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3UFSM010-030-04 1 -0.014 -0.028 3 4 50 3 3UFSM015-030-04 1.5 -0.014 -0.028 3 4 50 3 3UFSM020-030-04 2 -0.014 -0.028 3 4 50 3 3UFSM025-040-04 2.5 -0.014 -0.028 4 4 50 3 3UFSM030-080-06 3 -0.014 -0.028 8 6 50 3 3UFSM040-120-06 4 -0.020 -0.038 12 6 50 3 3UFSM050-140-06 5 -0.020 -0.038 14 6 50 3 3UFSM060-160-06 6 -0.020 -0.038 16 6 50 3 3UFSM080-200-08 8 -0.025 -0.047 20 8 63 3 3UFSM100-220-10 10 -0.025 -0.047 22 10 76 3 3UFSM120-250-12 12 -0.032 -0.059 25 12 76 3 3UFSM160-320-16 16 -0.032 -0.059 32 16 89 3 3UFSM200-380-20 20 -0.040 -0.073 38 20 104 3 Products emphasizing high of wide range of workpiece efficiency machining, three flutes type for general semi finishing. It is available for slotting and shouldering materials. 0 Std. Item Recommended Cutting Conditions OL56 L15 Solid End Mill
