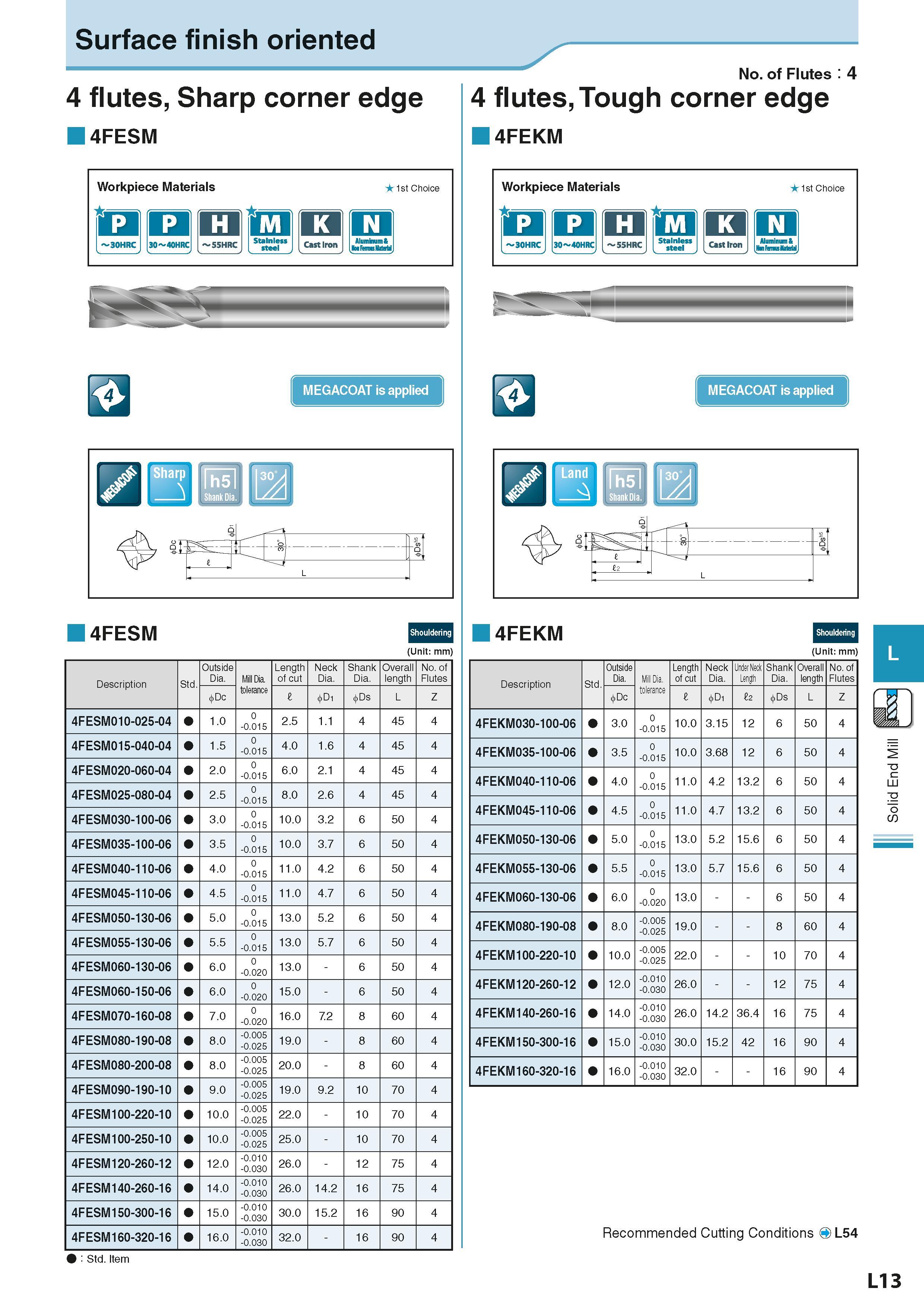

Surface finish oriented 4 flutes, Sharp corner edge 4FESM Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice a D Eli PI hen (O 1 30HRC 30 40HRC 55HRC Stainless I . Cast Iron j Alumnumft HMFenwMdaU MEGACOAT is applied 4FESM (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Shank Dia. Overall length No. of Flutes Dc I D1 4>Ds L Z 4FESM010-025-04 1.0 0 -0.015 2.5 1.1 4 45 4 4FESM015-040-04 1.5 0 -0.015 4.0 1.6 4 45 4 4FESM020-060-04 2.0 0 -0.015 6.0 2.1 4 45 4 4FESM025-080-04 2.5 0 -0.015 8.0 2.6 4 45 4 4FESM030-100-06 3.0 0 -0.015 10.0 3.2 6 50 4 4FESM035-100-06 3.5 0 -0.015 10.0 3.7 6 50 4 4FESM040-110-06 4.0 0 -0.015 11.0 4.2 6 50 4 4FESM045-110-06 4.5 0 -0.015 11.0 4.7 6 50 4 4FESM050-130-06 5.0 0 -0.015 13.0 5.2 6 50 4 4FESM055-130-06 5.5 0 -0.015 13.0 5.7 6 50 4 4FESM060-130-06 6.0 0 -0.020 13.0 - 6 50 4 4FESM060-150-06 6.0 0 -0.020 15.0 - 6 50 4 4FESM070-160-08 7.0 0 -0.020 16.0 7.2 8 60 4 4FESM080-190-08 8.0 -0.005 -0.025 19.0 - 8 60 4 4FESM080-200-08 8.0 -0.005 -0.025 20.0 - 8 60 4 4FESM090-190-10 9.0 -0.005 -0.025 19.0 9.2 10 70 4 4FESM100-220-10 10.0 -0.005 -0.025 22.0 - 10 70 4 4FESM100-250-10 10.0 -0.005 -0.025 25.0 - 10 70 4 4FESM120-260-12 12.0 -0.010 -0.030 26.0 - 12 75 4 4FESM140-260-16 14.0 -0.010 -0.030 26.0 14.2 16 75 4 4FESM150-300-16 15.0 -0.010 -0.030 30.0 15.2 16 90 4 4FESM160-320-16 16.0 -0.010 -0.030 32.0 - 16 90 4 No. of Flutes 4 4 flutes, Tough corner edge 4FEKM Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice Stainless steel MEGACOAT is applied 4FEKM (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I D1 12 4>Ds L Z 4FEKM030-100-06 3.0 0 -0.015 10.0 3.15 12 6 50 4 4FEKM035-100-06 3.5 0 -0.015 10.0 3.68 12 6 50 4 4FEKM040-110-06 4.0 0 -0.015 11.0 4.2 13.2 6 50 4 4FEKM045-110-06 4.5 0 -0.015 11.0 4.7 13.2 6 50 4 4FEKM050-130-06 5.0 0 -0.015 13.0 5.2 15.6 6 50 4 4FEKM055-130-06 5.5 0 -0.015 13.0 5.7 15.6 6 50 4 4FEKM060-130-06 6.0 0 -0.020 13.0 6 50 4 4FEKM080-190-08 8.0 -0.005 -0.025 19.0 8 60 4 4FEKM100-220-10 10.0 -0.005 -0.025 22.0 10 70 4 4FEKM120-260-12 12.0 -0.010 -0.030 26.0 12 75 4 4FEKM140-260-16 14.0 -0.010 -0.030 26.0 14.2 36.4 16 75 4 4FEKM150-300-16 15.0 -0.010 -0.030 30.0 15.2 42 16 90 4 4FEKM160-320-16 16.0 -0.010 -0.030 32.0 16 90 4 Recommended Cutting Conditions OL54 9 Std. Item L13 Solid End Mill
