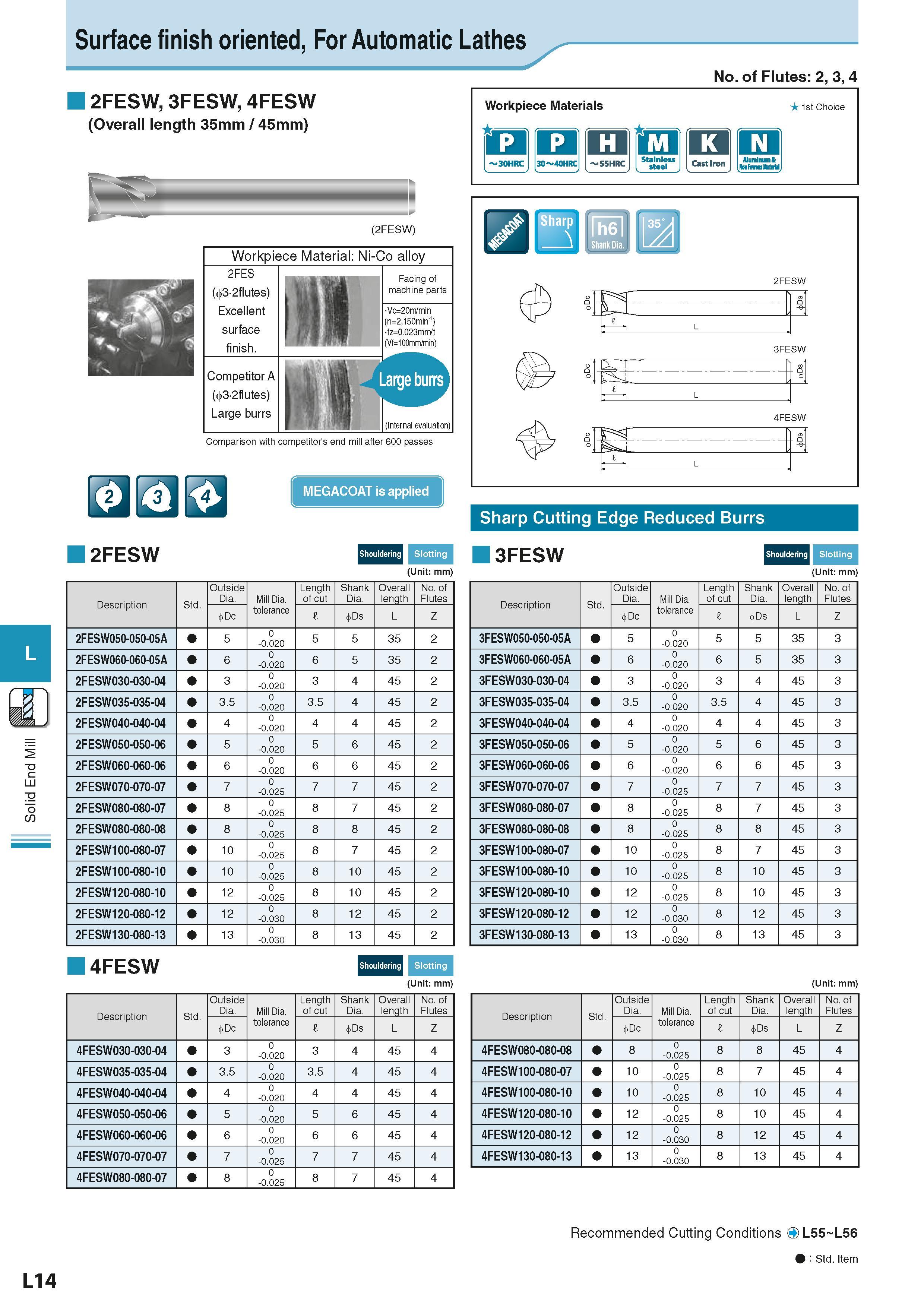

Solid End Mill Surface finish oriented, For Automatic Lathes 2FESW, 3FESW, 4FESW (Overall length 35mm / 45mm) (2FESW) Workpiece Material: Ni-Co alloy 2FES ( 3-2flutes) Excellent surface finish. Competitor A ( 3-2flutes) Large burrs Comparison with competitor's end mill after 600 passes MEGACOAT is applied No. of Flutes: 2, 3, 4 Workpiece Materials Группы обрабатываемых материалов по ISO 1st Choice o D Cl wm K 1 1 30HRC 30 40HRC 55HRC Stainless I steel Cast Iron J Alumimni& MHFemBltatotal Sh"pl h6l J I Shank Dia. Sharp Cutting Edge Reduced Burrs 2FESW Shouldering Slotting (Unit: mm) 3FESW Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 2FESW050-050-05A 5 0 -0.020 5 5 35 2 2FESW060-060-05A 6 0 -0.020 6 5 35 2 2FESW030-030-04 3 0 -0.020 3 4 45 2 2FESW035-035-04 3.5 0 -0.020 3.5 4 45 2 2FESW040-040-04 4 0 -0.020 4 4 45 2 2FESW050-050-06 5 0 -0.020 5 6 45 2 2FESW060-060-06 6 0 -0.020 6 6 45 2 2FESW070-070-07 7 0 -0.025 7 7 45 2 2FESW080-080-07 8 0 -0.025 8 7 45 2 2FESW080-080-08 8 0 -0.025 8 8 45 2 2FESW100-080-07 10 0 -0.025 8 7 45 2 2FESW100-080-10 10 0 -0.025 8 10 45 2 2FESW120-080-10 12 0 -0.025 8 10 45 2 2FESW120-080-12 12 0 -0.030 8 12 45 2 2FESW130-080-13 13 0 -0.030 8 13 45 2 4FESW Shouldering Slotting (Unit: mm) Shouldering Slotting (Unit: mm) Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3FESW050-050-05A 5 0 -0.020 5 5 35 3 3FESW060-060-05A 6 0 -0.020 6 5 35 3 3FESW030-030-04 3 0 -0.020 3 4 45 3 3FESW035-035-04 3.5 0 -0.020 3.5 4 45 3 3FESW040-040-04 4 0 -0.020 4 4 45 3 3FESW050-050-06 5 0 -0.020 5 6 45 3 3FESW060-060-06 6 0 -0.020 6 6 45 3 3FESW070-070-07 7 0 -0.025 7 7 45 3 3FESW080-080-07 8 0 -0.025 8 7 45 3 3FESW080-080-08 8 0 -0.025 8 8 45 3 3FESW100-080-07 10 0 -0.025 8 7 45 3 3FESW100-080-10 10 0 -0.025 8 10 45 3 3FESW120-080-10 12 0 -0.025 8 10 45 3 3FESW120-080-12 12 0 -0.030 8 12 45 3 3FESW130-080-13 13 0 -0.030 8 13 45 3 (Unit: mm) 2FESW L 3FESW L 4FESW L Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 4FESW030-030-04 3 0 -0.020 3 4 45 4 4FESW035-035-04 3.5 0 -0.020 3.5 4 45 4 4FESW040-040-04 4 0 -0.020 4 4 45 4 4FESW050-050-06 5 0 -0.020 5 6 45 4 4FESW060-060-06 6 0 -0.020 6 6 45 4 4FESW070-070-07 7 0 -0.025 7 7 45 4 4FESW080-080-07 8 0 -0.025 8 7 45 4 Description Обозначение инструмента для заказа Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 4FESW080-080-08 8 0 -0.025 8 8 45 4 4FESW100-080-07 10 0 -0.025 8 7 45 4 4FESW100-080-10 10 0 -0.025 8 10 45 4 4FESW120-080-10 12 0 -0.025 8 10 45 4 4FESW120-080-12 12 0 -0.030 8 12 45 4 4FESW130-080-13 13 0 -0.030 8 13 45 4 Recommended Cutting Conditions OL55 L56 9 Std. Item L14
