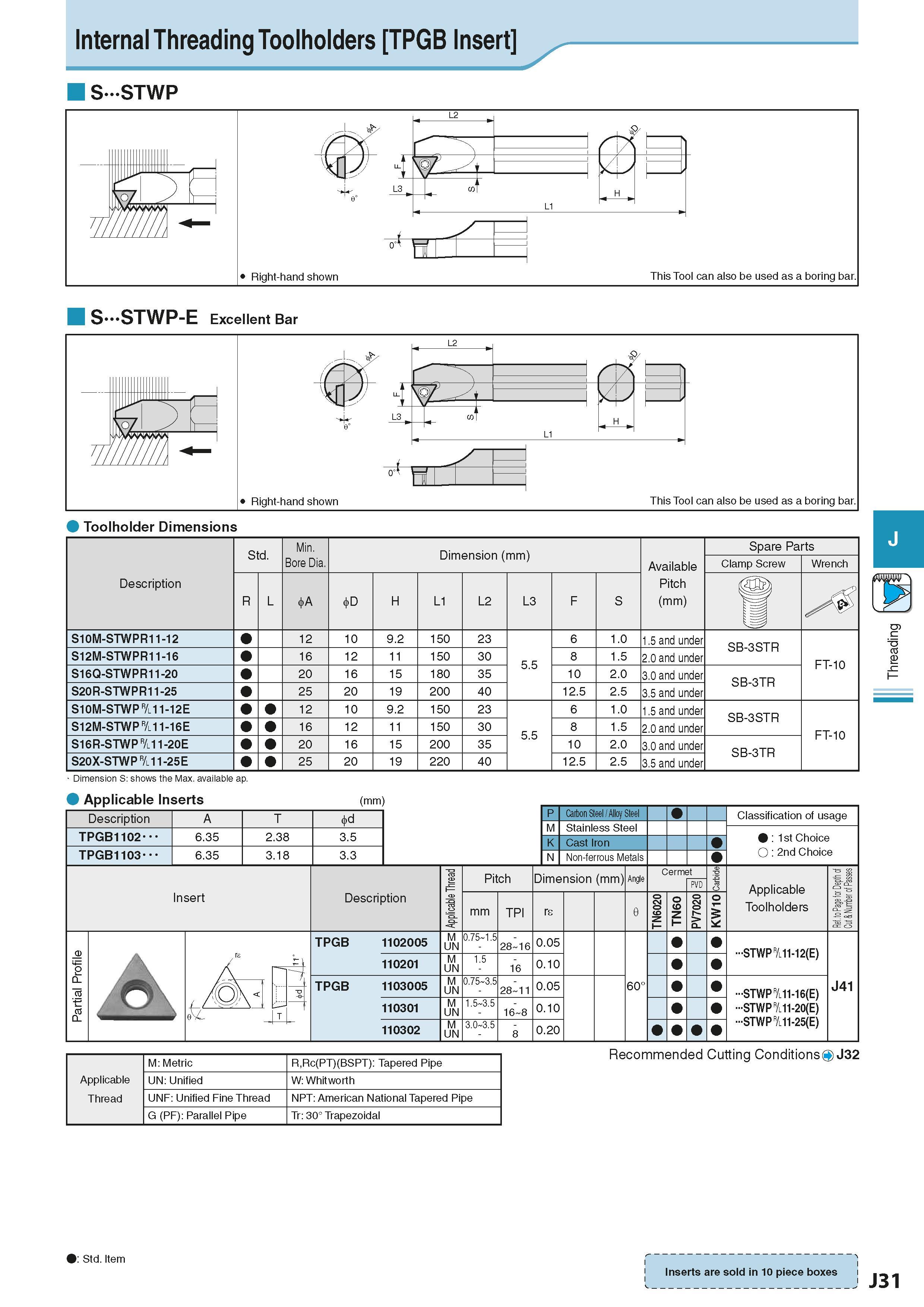

Internal Threading Toolholders TPGB Insert S STWP S STWP-E Excellent Bar Right-hand shown ThisToolcan alsobe used as aboring bar. Toolholder Dimensions Description Обозначение инструмента для заказа Std. Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Available Pitch (mm) Spare Parts Clamp Screw Wrench R L A D H L1 L2 L3 F S u S10M-STWPR11-12 12 10 9.2 150 23 5.5 6 1.0 1.5 and under SB-3STR FT-10 S12M-STWPR11-16 16 12 11 150 30 8 1.5 2.0 and under S16Q-STWPR11-20 20 16 15 180 35 10 2.0 3.0 and under SB-3TR S20R-STWPR11-25 25 20 19 200 40 12.5 2.5 3.5 and under S10M-STWP&11-12E 12 10 9.2 150 23 5.5 6 1.0 1.5 and under SB-3STR FT-10 S12M-STWP&11-16E 16 12 11 150 30 8 1.5 2.0 and under S16R-STWP&11-20E 20 16 15 200 35 10 2.0 3.0 and under SB-3TR S20X-STWP&11-25E 25 20 19 220 40 12.5 2.5 3.5 and under Dimension S: shows the Max. available ap. Applicable Inserts (mm) Description A T d TPGB1102 - 6.35 2.38 3.5 TPGB1103 - 6.35 3.18 3.3 Stainless Steel Cast Iron Non-ferrous Metals Classification of usage 1st Choice 0: 2nd Choice Insert Description Pitch TPI Dimension (mm) Размеры инструмента указаны в мм Angle Applicable Toolholders TPGB 1102005 0.75 1.5 28 16 0.05 110201 1.5 16 0.10 TPGB 1103005 0.75 3.5 28 11 0.05 60 110301 1.5 3.5 16 8 0.10 110302 3.0 3.5 0.20 STWP&11-12(E) STWP&11-16(E) STWP&11-20(E) STWP&11-25(E) J41 M: Metric R,Rc(PT)(BSPT): Tapered Pipe Applicable UN: Unified W: Whitworth Thread UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Tr: 30° Trapezoidal Recommended Cutting ConditionsO J32 Std. Item Inserts are sold in 10 piece boxes J31 PVD 0 mm Threading
