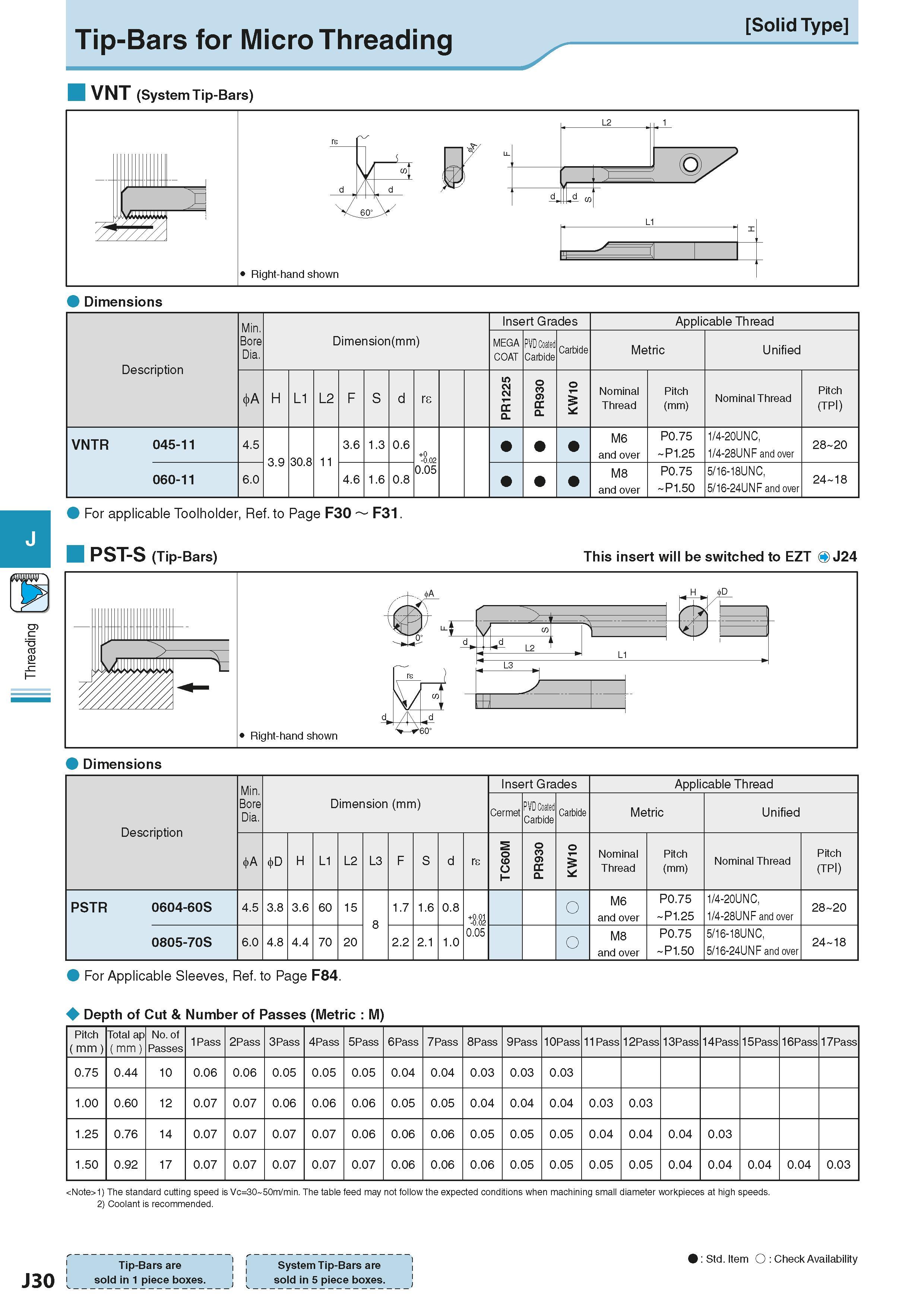

Tip-Bars for Micro Threading Solld Type VNT (System Tip-Bars) Dimensions Description Min. Bore Dia. Dimension(mm) Insert Grades Applicable Thread MEGA COAT PVD Coated Carbide Carbide Metric Unified < A H L1 L2 F S d re U) IT CL PR930 KW10 Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) VNTR 045-11 4.5 3.9 30.8 11 3.6 1.3 0.6 +0 -0.02 0.05 M6 and over P0.75 P1.25 1/4-20UNC, 1/4-28UNF and over 28 20 060-11 6.0 4.6 1.6 0.8 M8 and over P0.75 P1.50 5/16-18UNC, 5/16-24UNF and over 24 18 For applicable Toolholder, Ref. to Page F30 F31. PST-S (Tip-Bars) This insert will be switched to EZT O J24 Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Insert Grades Applicable Thread Cermet PVD Coated Carbide Carbide Metric Unified A D H L1 L2 L3 F S d re TC60M PR930 KW10 Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) PSTR 0604-60S 4.5 3.8 3.6 60 15 8 1.7 1.6 0.8 +0.01 -0.02 0.05 O M6 and over P0.75 P1.25 1/4-20UNC, 1/4-28UNF and over 28 20 0805-70S 6.0 4.8 4.4 70 20 2.2 2.1 1.0 o M8 and over P0.75 P1.50 5/16-18UNC, 5/16-24UNF and over 24 18 For Applicable Sleeves, Ref. to Page F84. Depth of Cut & Number of Passes (Metric M Pitch (mm) Total ap (mm) No. of Passes 1Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11 Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 0.75 0.44 10 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 0.03 1.00 0.60 12 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.04 0.04 0.04 0.03 0.03 1.25 0.76 14 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 1.50 0.92 17 0.07 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.04 0.03 1) The standard cutting speed is Vc=30 50m/min. The table feed may not follow the expected conditions when machining small diameter workpieces at high speeds. 2) Coolant is recommended. T t- r. i T o -r- n 1 Std. Item O Check Availability Tip-Bars are i System Tip-Bars are i 3 J30 i sold in 1 piece boxes. J sold in 5 piece boxes.
