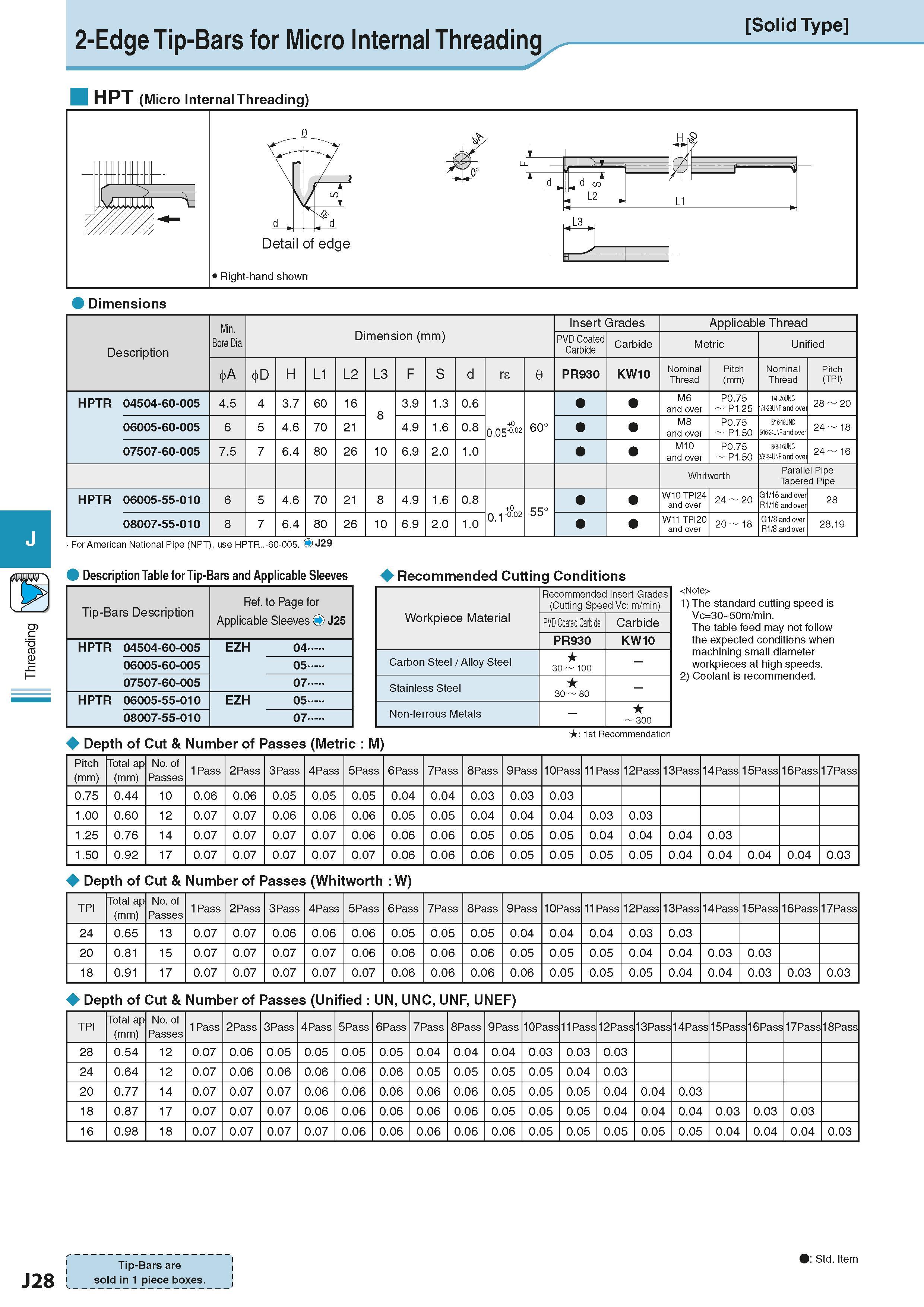

522 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.J28

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. J28 0522 Lab2u

Threading 2-Edge Tip-Bars for Micro Internal Threading Solid Type HPT (Micro Internal Threading) Dimensions Description Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Insert Grades Applicable Thread PVD Coated Carbide Carbide Metric Unified < A < D H L1 L2 L3 F S d re 0 PR930 KW10 Nominal Thread Pitch (mm) Nominal Thread Pitch (TPI) HPTR 04504-60-005 4.5 4 3.7 60 16 8 3.9 1.3 0.6 +0 0.05-002 60° M6 and over P0.75 P1.25 1/4-20UNC I/4-28UNF and ove 28 20 06005-60-005 6 5 4.6 70 21 4.9 1.6 0.8 M8 and over P0.75 P1.50 5/16-18UNC 5/16-24UNF and over 24 18 07507-60-005 7.5 7 6.4 80 26 10 6.9 2.0 1.0 M10 and over P0.75 P1.50 3/8-16UNC 1/8-24UNF and ove 24 16 Whitworth Parallel Pipe Tapered Pipe HPTR 06005-55-010 6 5 4.6 70 21 8 4.9 1.6 0.8 +0 0.1-002 55° W10 TPI24 and over 24 20 G1/16 and over R1/16 and over 28 08007-55-010 8 7 6.4 80 26 10 6.9 2.0 1.0 W11 TPI20 and over 20 18 G1/8 and over R1/8 and over 28,19 For American National Pipe (NPT), use HPTR..-60-005. < ) J29 Description Table for Tip-Bars and Applicable Sleeves Tip-Bars Description Ref. to Page for Applicable Sleeves 4 J25 HPTR 04504-60-005 EZH 04 06005-60-005 05 07507-60-005 07 HPTR 06005-55-010 EZH 05 08007-55-010 07 Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) Workpiece Material PVD Coated Carbide Carbide PR930 KW10 Carbon Steel / Alloy Steel 30 100 - Stainless Steel 3 O o - Non-ferrous Metals - 300 1) The standard cutting speed is Vc=30 50m/min. The table feed may not follow the expected conditions when machining small diameter workpieces at high speeds. 2) Coolant is recommended. Depth of Cut & Number of Passes (Metric M : 1st Recommendation Pitch (mm) Total ap (mm) No. of Passes 1 Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11 Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 0.75 0.44 10 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 0.03 1.00 0.60 12 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.04 0.04 0.04 0.03 0.03 1.25 0.76 14 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 1.50 0.92 17 0.07 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.04 0.03 Depth of Cut & Number of Passes (Whitworth W) TPI Total ap (mm) No. of Passes 1 Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11 Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 24 0.65 13 0.07 0.07 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 20 0.81 15 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 18 0.91 17 0.07 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 0.03 0.03 Depth of Cut & Number of Passes (Unified UN, UNC, UNF, UNEF) TPI Total ap (mm) No. of Passes 1 Pass 2Pass 3Pass 4Pass 5Pass 6Pass 7Pass 8Pass 9Pass 10Pass 11 Pass 12Pass 13Pass 14Pass 15Pass 16Pass 17Pass 18Pass 28 0.54 12 0.07 0.06 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 0.03 24 0.64 12 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.04 0.03 20 0.77 14 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.03 18 0.87 17 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0.03 0.03 16 0.98 18 0.07 0.07 0.07 0.07 0.06 0.06 0.06 0.06 0.06 0.05 0.05 0.05 0.05 0.05 0.04 0.04 0.04 0.03 0 i Std. Item Tip-Bars are J28 l sold in 1 piece boxes.
