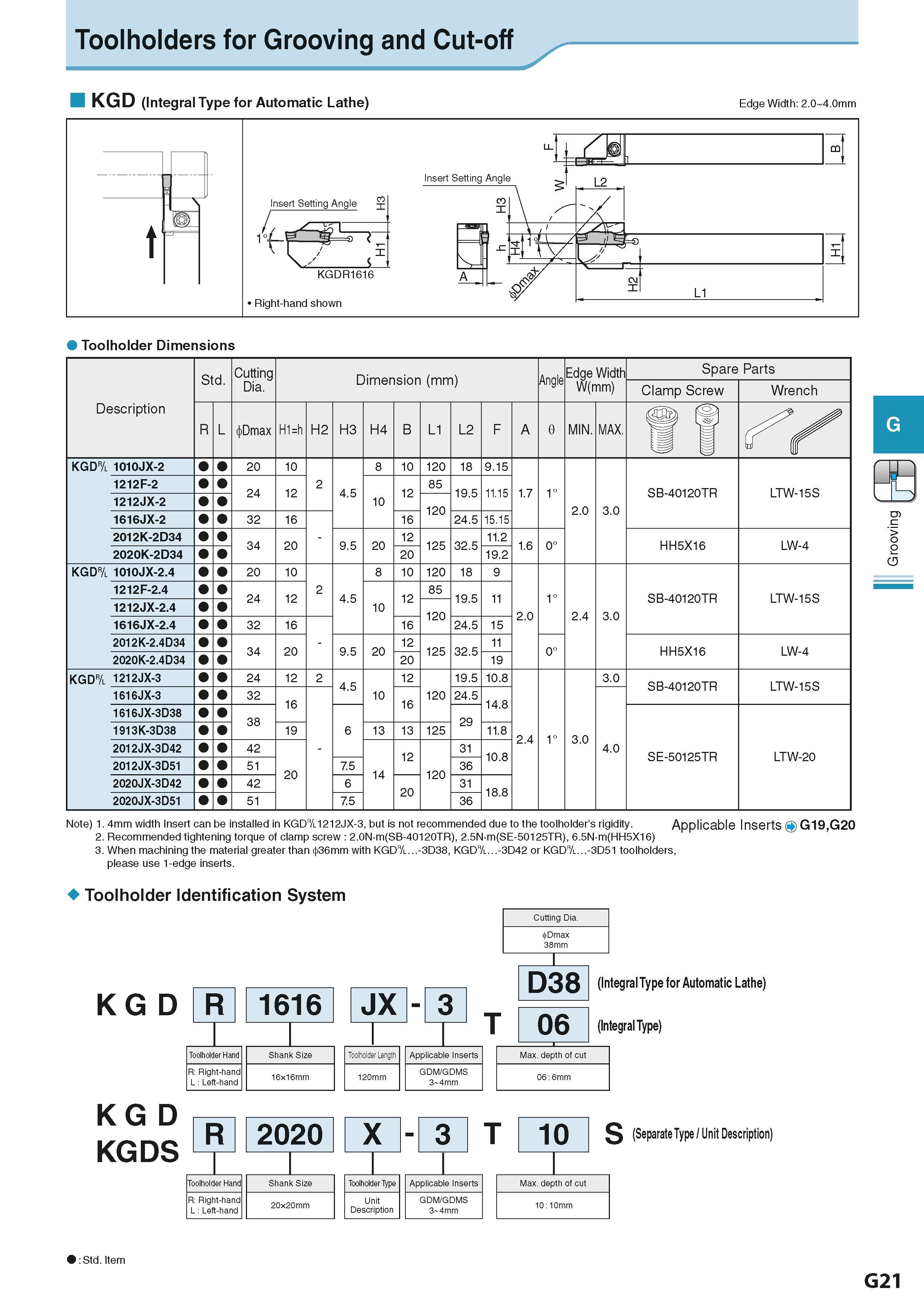

Toolholders for Grooving and Cut-off KGD (Integral Type for Automatic Lathe) Edge Width: 2.0 4.0mm Toolholder Dimensions > CD Note) 1. 4mm width Insert can be installed in KGD&1212JX-3, but is not recommended due to the toolholder's rigidity. Applicable Inserts G19,G20 2. Recommended tightening torque of clamp screw 2.0N-m(SB-40120TR), 2.5N-m(SE-50125TR), 6.5N-m(HH5X16) 3. When machining the material greater than ct>36mm with KGDh/l...-3D38, KGDh/l...-3D42 or KGDh/l...-3D51 toolholders, please use 1-edge inserts. Toolholder Identification System KGD R 1616 Toolholder Hand Shank Size R: Right-hand L Left-hand 16x16mm KGD KGDS R 2020 X - 3 T 10 S (Separate Type / Unit Descript on) Toolholder Hand Shank Size R: Right-hand L Left-hand 20x20mm Toolholder Type Applicable Inserts Unit Description GDM/GDMS 3 4mm Max. depth of cut 10:10mm :Std. Item G21
