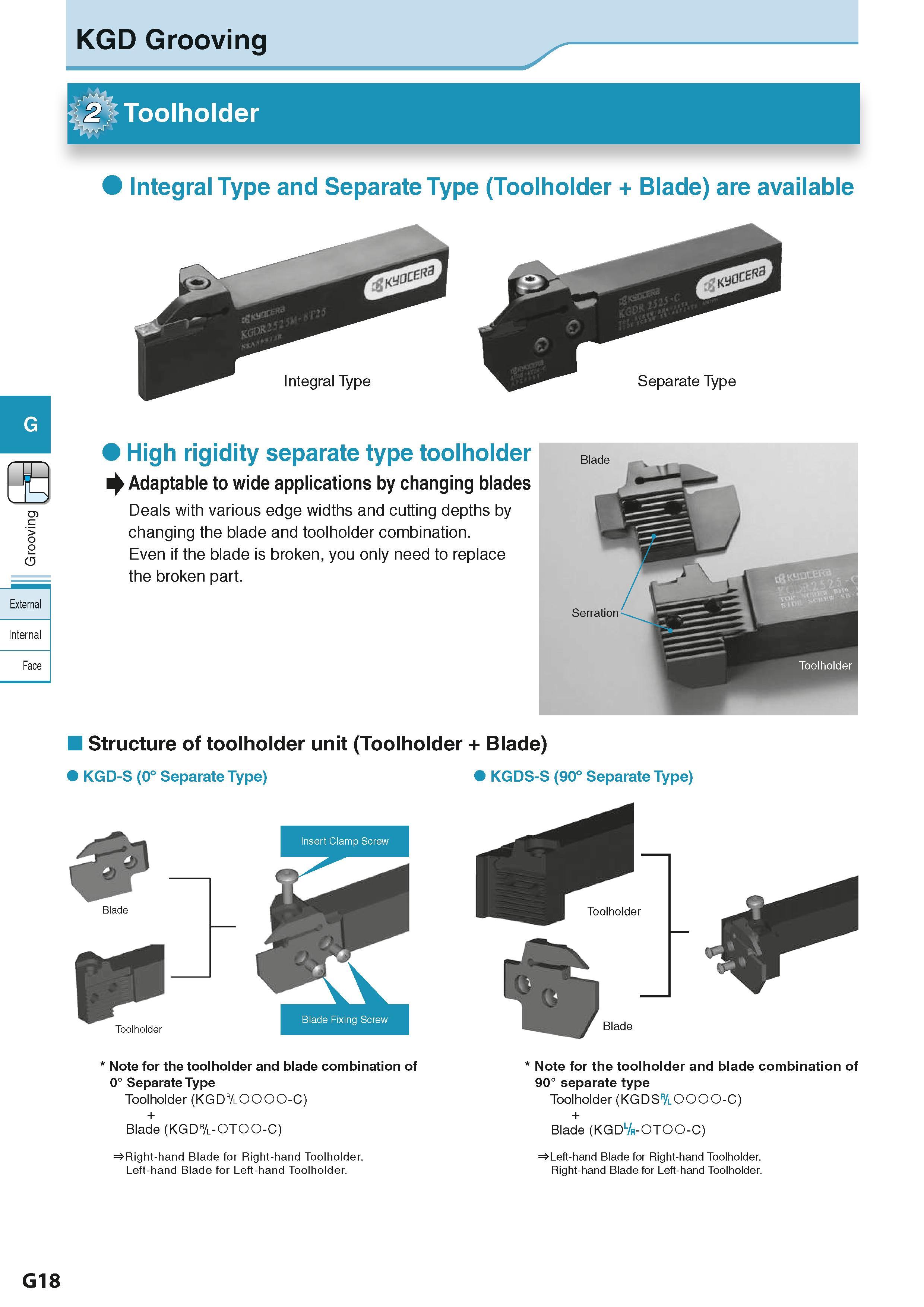

KGD Grooving 2 Toolholder v Integral Type and Separate Type (Toolholder + Blade) are available R > o (3 CD External Internal Face Separate Type High rigidity separate type toolholder Adaptable to wide applications by changing blades Deals with various edge widths and cutting depths by changing the blade and toolholder combination. Even if the blade is broken, you only need to replace the broken part. Structure of toolholder unit (Toolholder + Blade) KGD-S (0° Separate Type) KGDS-S (90° Separate Type) Insert Clamp Screw Toolholder Toolholder Blade Fixing Screw Note for the toolholder and blade combination of 0° Separate Type Toolholder (KGD&OOOO-C) + Blade (KGD&-OTOO-C) Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. Note for the toolholder and blade combination of 90° separate type Toolholder (KGDS&OOOO-C) + Blade (KGDl/r-OTOO-C) Left-hand Blade for Right-hand Toolholder, Right-hand Blade for Left-hand Toolholder. G18
