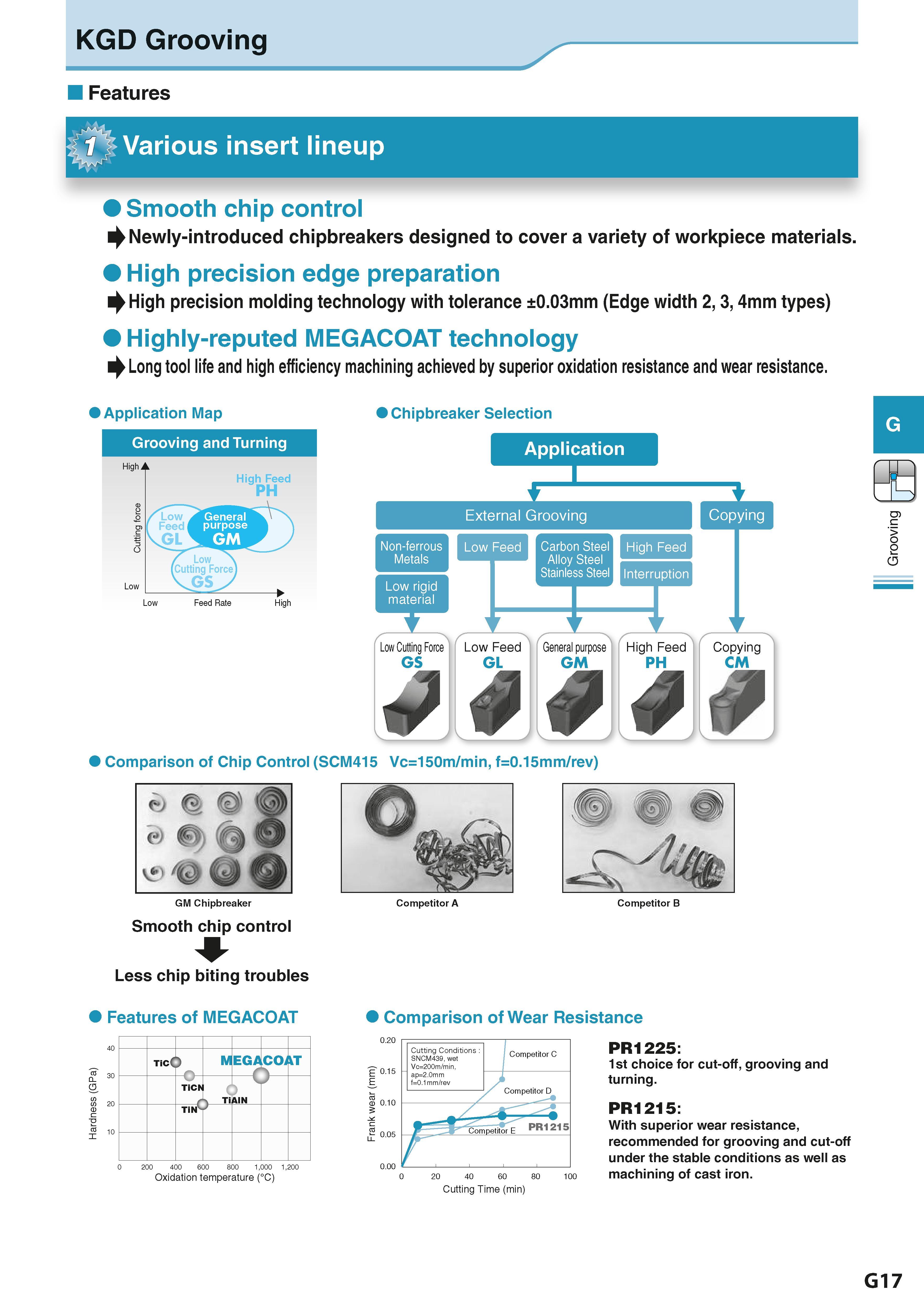

KGD Grooving Features Various insert lineup Smooth chip control Newly-introduced chipbreakers designed to cover a variety of workpiece materials. High precision edge preparation High precision molding technology with tolerance ±0.03mm (Edge width 2, 3, 4mm types) Highly-reputed MEGACOAT technology Long tool life and high efficiency machining achieved by superior oxidation resistance and wear resistance. Application Map Grooving and Turning Chipbreaker Selection High High Feed PH Application I General purpose GM f Low N (Cutting Force) \Lgs 7 External Grooving Copying High Comparison of Chip Control (SCM415 Vc=150m/min, f=0.15mm/rev) GM Chipbreaker Smooth chip control Competitor A Competitor B Less chip biting troubles Features of MEGACOAT o 20 TiC M EGACOA XT V TiCN T AlN TiN J 0 200 400 600 800 1,000 1,200 Oxidation temperature (°C) Comparison of Wear Resistance jz 0.15 E CD 0.10 3 Cutting Conditions SNCM439, wet Vc=200m/min, ap=2.0mm 1 f=0.1mm/rev A Competitor C Competitor D PR1215 0 20 40 60 80 Cutting Time (min) PR1225: 1st choice for cut-off, grooving and turning. PR1215: With superior wear resistance, recommended for grooving and cut-off under the stable conditions as well as machining of cast iron. Low Low Feed Rate 0.20 40 30 10 100 G17 Grooving
