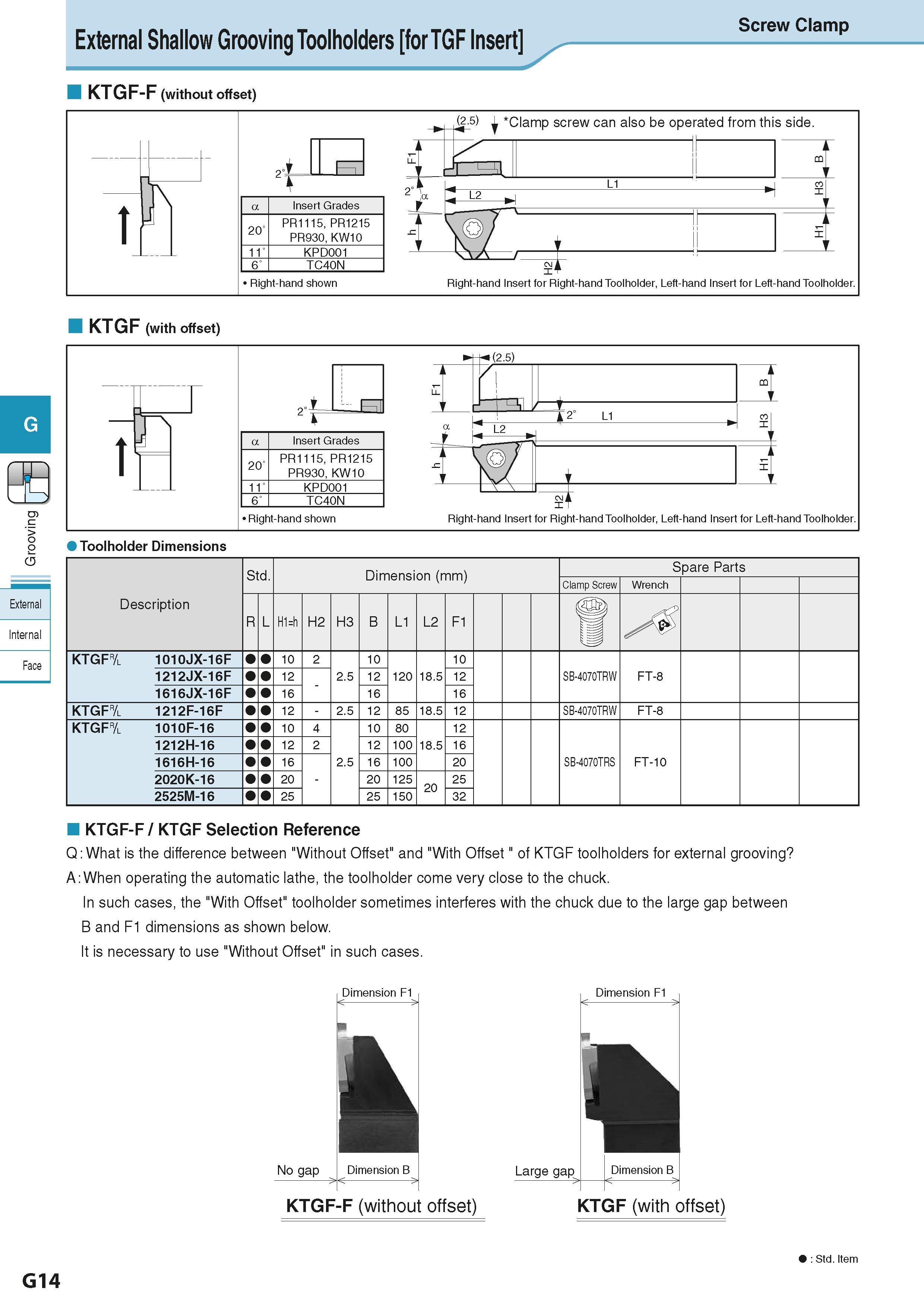

External Shallow Grooving Toolholders for TGF Insert Screw Clamp KTGF-F (without offset) KTGF (with offset) KTGF-F / KTGF Selection Reference Q: What is the difference between "Without Offset" and "With Offset of KTGF toolholders for external grooving A:When operating the automatic lathe, the toolholder come very close to the chuck. In such cases, the "With Offset" toolholder sometimes interferes with the chuck due to the large gap between B and F1 dimensions as shown below. It is necessary to use "Without Offset" in such cases. No gap Dimension F1 Dimension B < -> Dimension F1 KTGF-F (without offset) KTGF (with offset) Std. Item G14
