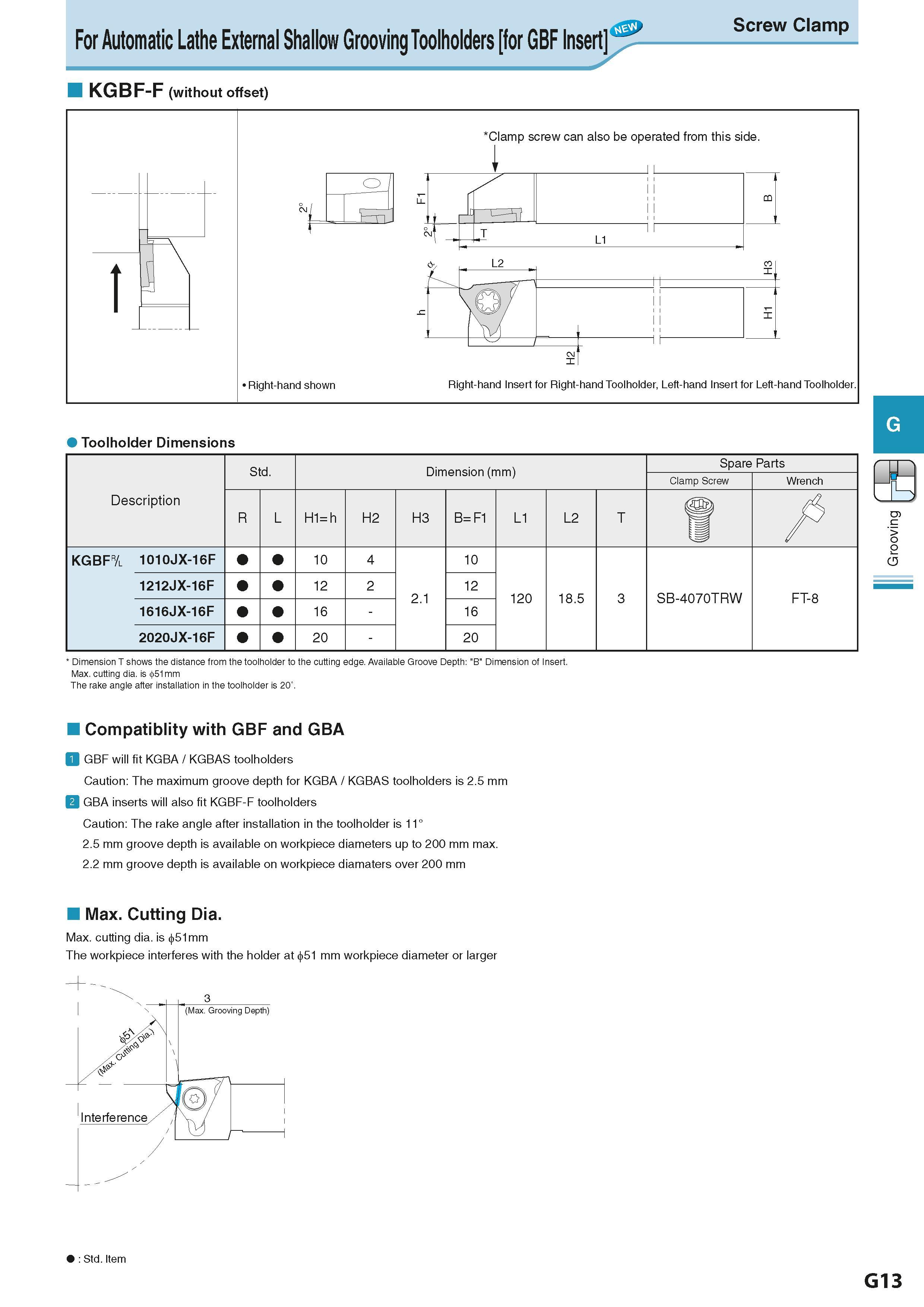

For Automatic Lathe External Shallow Grooving Toolholders for GBF Insert Screw Clamp KGBF-F (without offset) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Clamp Screw Wrench R L H1=h H2 H3 B= F1 L1 L2 T u / KGBF& 1010JX-16F 10 4 2.1 10 120 18.5 3 SB-4070TRW FT-8 1212JX-16F 12 2 12 1616JX-16F 16 - 16 2020JX-16F 20 - 20 > 5 Dimension T shows the distance from the toolholder to the cutting edge. Available Groove Depth: "B" Dimension of Insert. Max. cutting dia. is 51mm The rake angle after installation in the toolholder is 20°. Compatiblity with GBF and GBA 1 GBF will fit KGBA / KGBAS toolholders Caution: The maximum groove depth for KGBA / KGBAS toolholders is 2.5 mm B GBA inserts will also fit KGBF-F toolholders Caution: The rake angle after installation in the toolholder is 11° 2.5 mm groove depth is available on workpiece diameters up to 200 mm max. 2.2 mm groove depth is available on workpiece diamaters over 200 mm Max. Cutting Dia. Max. cutting dia. is 51mm The workpiece interferes with the holder at 51 mm workpiece diameter or larger Std. Item G13
