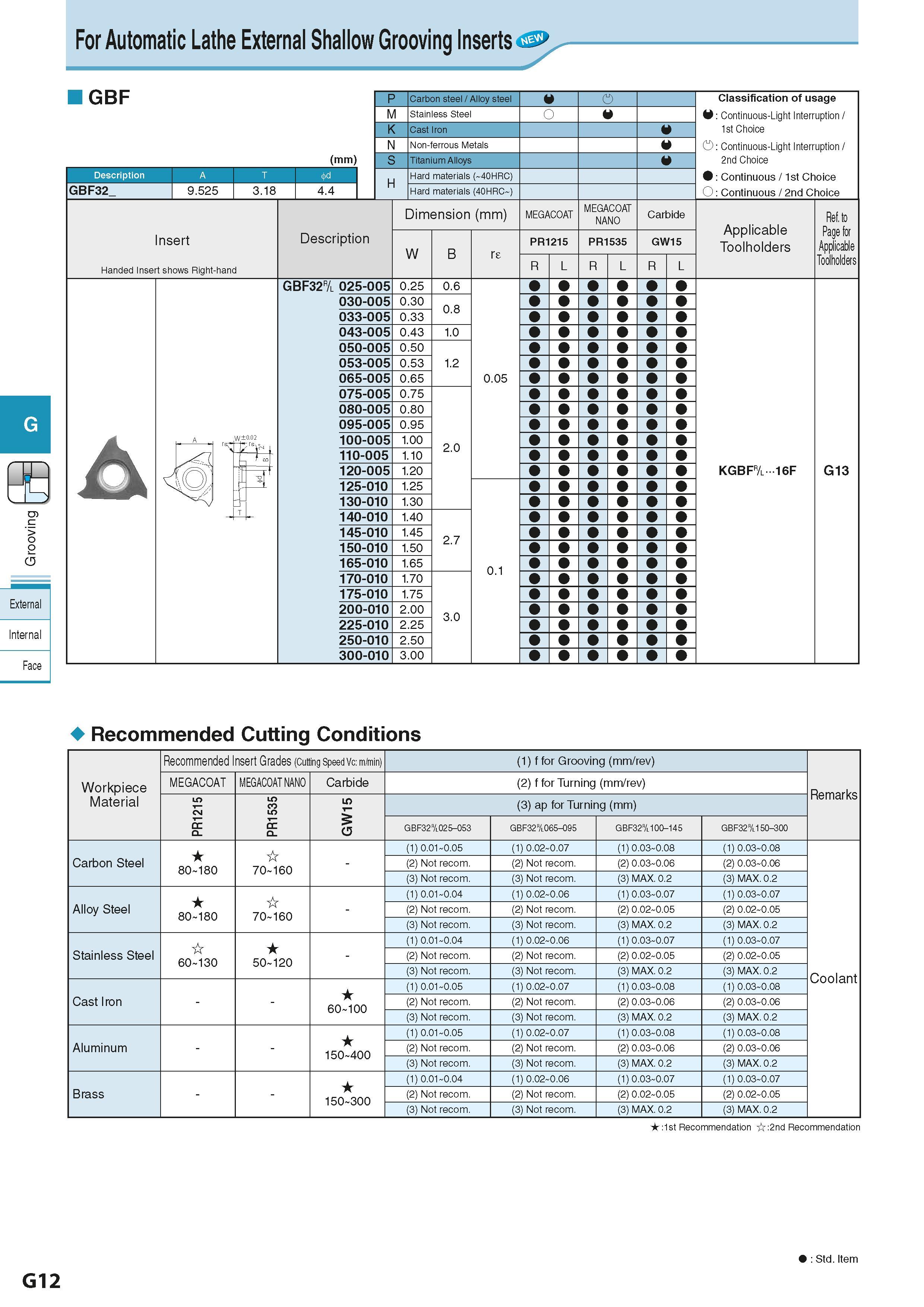

For Automatic Lathe External Shallow Grooving Inserts GBF Description A T d GBF32 9.525 3.18 1 4.4 P Carbon steel / Alloy steel M Stainless Steel Non-ferrous Metals Titanium Alloys Hard materials ( 40HRC) Hard materials (40HRC ) Q C Classification of usage Q Continuous-Light Interruption / 1st Choice Continuous-Light Interruption / 2nd Choice Continuous / 1st Choice C Continuous / 2nd Choice Insert i Insert shows Right-hand Description Dimension (mm) Размеры инструмента указаны в мм MEGACOAT MEGACOAT NANO Carbide W PR1215 PR1535 GW15 re Applicable Toolholders R L R L Page for Applicable Toolholders A External Internal Face GBF32& 025-005 0.25 0.6 030-005 0.30 033-005 0.33 0.8 043-005 0.43 1.0 050-005 0.50 053-005 0.53 1.2 065-005 0.65 0.05 075-005 0.75 080-005 0.80 095-005 0.95 100-005 1.00 110-005 1.10 2.0 120-005 1.20 125-010 1.25 130-010 1.30 140-010 1.40 145-010 1.45 150-010 1.50 2.7 165-010 1.65 170-010 1.70 0.1 175-010 1.75 200-010 2.00 225-010 2.25 3.0 250-010 2.50 300-010 3.00 KGBF&-16F G13 K N S H R L Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) (1) f for Grooving (mm/rev) Workpiece MEGACOAT MEGACOAT NANO Carbide (2) f for Turning (mm/rev) Remarks Material PR1215 PR1535 GW15 (3) ap for Turning (mm) GBF32&025-053 GBF32&065-095 GBF32& 100-145 GBF32&150-300 80 180 70 160 (1) 0.01 0.05 (1) 0.02 0.07 (1) 0.03 0.08 (1) 0.03 0.08 Carbon Steel (2) Not recom. (2) Not recom. (2) 0.03 0.06 (2) 0.03 0.06 (3) Not recom. (3) Not recom. (3) MAX. 0.2 (3) MAX. 0.2 80 180 70 160 (1) 0.01 0.04 (1) 0.02 0.06 (1) 0.03 0.07 (1) 0.03 0.07 Alloy Steel (2) Not recom. (2) Not recom. (2) 0.02 0.05 (2) 0.02 0.05 (3) Not recom. (3) Not recom. (3) MAX. 0.2 (3) MAX. 0.2 60 130 50 120 (1) 0.01 0.04 (1) 0.02 0.06 (1) 0.03 0.07 (1) 0.03 0.07 Stainless Steel (2) Not recom. (2) Not recom. (2) 0.02 0.05 (2) 0.02 0.05 (3) Not recom. (3) Not recom. (3) MAX. 0.2 (3) MAX. 0.2 Coolant 60 100 (1) 0.01 0.05 (1) 0.02 0.07 (1) 0.03 0.08 (1) 0.03 0.08 Cast Iron (2) Not recom. (2) Not recom. (2) 0.03 0.06 (2) 0.03 0.06 (3) Not recom. (3) Not recom. (3) MAX. 0.2 (3) MAX. 0.2 150 400 (1) 0.01 0.05 (1) 0.02 0.07 (1) 0.03 0.08 (1) 0.03 0.08 Aluminum (2) Not recom. (2) Not recom. (2) 0.03 0.06 (2) 0.03 0.06 (3) Not recom. (3) Not recom. (3) MAX. 0.2 (3) MAX. 0.2 150 300 (1) 0.01 0.04 (1) 0.02 0.06 (1) 0.03 0.07 (1) 0.03 0.07 Brass (2) Not recom. (2) Not recom. (2) 0.02 0.05 (2) 0.02 0.05 (3) Not recom. (3) Not recom. (3) MAX. 0.2 (3) MAX. 0.2 :1st Recommendation :2nd Recommendation G12 Std. Item
