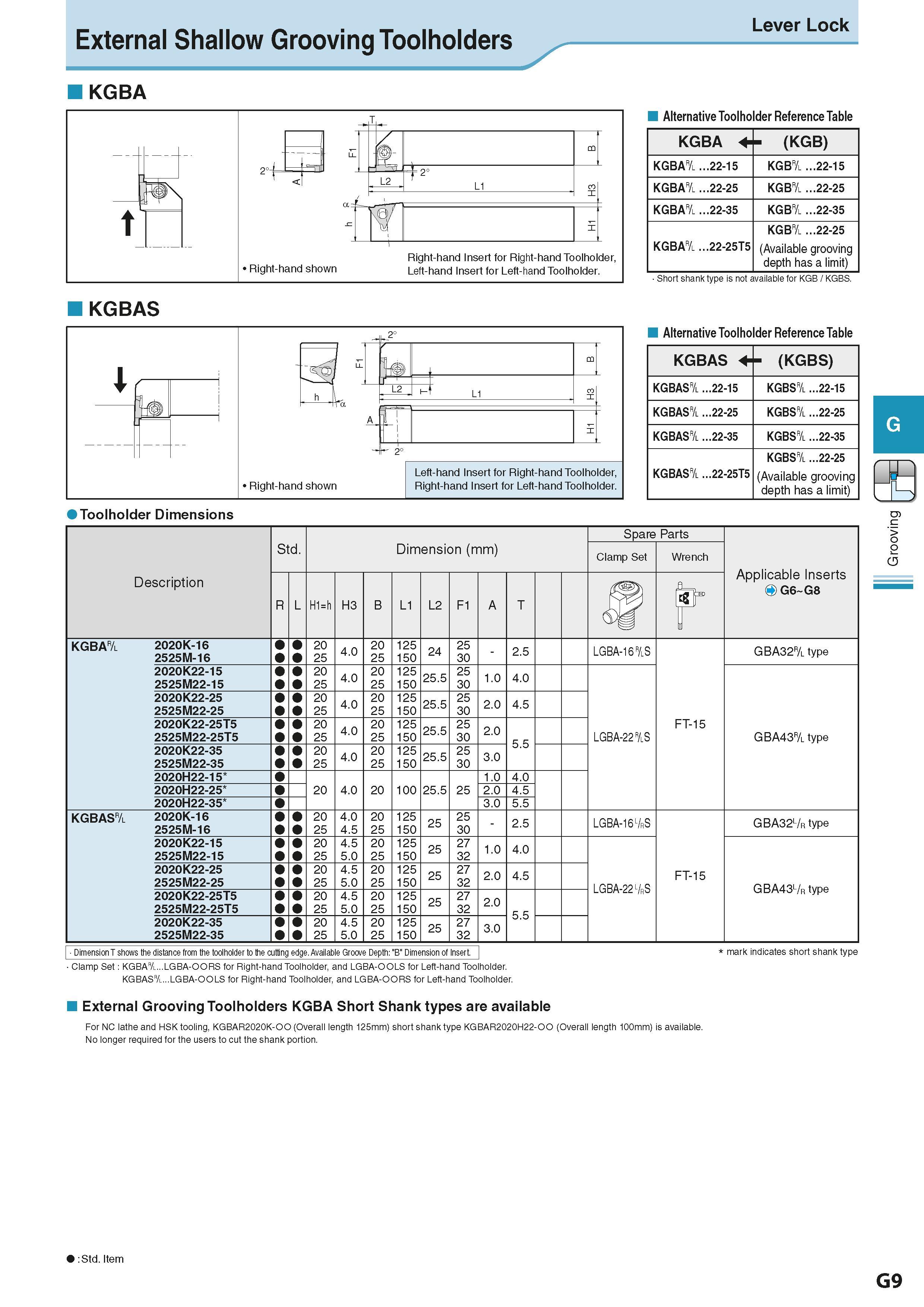

External Shallow Grooving Toolholders Lever Lock KGBA Alternative Toolholder Reference Table KGBA (KGB) KGBA& 22-15 KGB& 22-15 KGBA& 22-25 KGB& 22-25 KGBA& 22-35 KGB& 22-35 KGBA& 22-25T5 KGB& 22-25 (Available grooving depth has a limit) KGBAS Short shank type is not available for KGB / KGBS. Alternative Toolholder Reference Table KGBAS (KGBS) KGBAS & 22-15 KGBS& 22-15 KGBAS & 22-25 KGBS& 22-25 KGBAS & 22-35 KGBS& 22-35 KGBAS & 22-25T5 KGBS& 22-25 (Available grooving depth has a limit) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Applicable Inserts O G6 G8 Clamp Set Wrench R L H1=h H3 B L1 L2 F1 A T If ( J“ KGBA& 2020K-16 2525M-16 20 25 4.0 20 25 125 150 24 25 30 - 2.5 LGBA-16&S FT-15 GBA32& type 2020K22-15 2525M22-15 20 25 4.0 20 25 125 150 25.5 25 30 1.0 4.0 LGBA-22&S GBA43& type 2020K22-25 2525M22-25 20 25 4.0 20 25 125 150 25.5 25 30 2.0 4.5 2020K22-25T5 2525M22-25T5 20 25 4.0 20 25 125 150 25.5 25 30 2.0 5.5 2020K22-35 2525M22-35 20 25 4.0 20 25 125 150 25.5 25 30 3.0 2020H22-15 20 4.0 20 100 25.5 25 1.0 4.0 2020H22-25 2.0 4.5 2020H22-35 3.0 5.5 KGBAS& 2020K-16 2525M-16 20 25 4.0 4.5 20 25 125 150 25 25 30 - 2.5 LGBA-16l/rS FT-15 GBA32l/r type 2020K22-15 2525M22-15 20 25 4.5 5.0 20 25 125 150 25 27 32 1.0 4.0 LGBA-22l/rS GBA43l/r type 2020K22-25 2525M22-25 20 25 4.5 5.0 20 25 125 150 25 27 32 2.0 4.5 2020K22-25T5 2525M22-25T5 20 25 4.5 5.0 20 25 125 150 25 27 32 2.0 5.5 2020K22-35 2525M22-35 20 25 4.5 5.0 20 25 125 150 25 27 32 3.0 > 5 Dimension T shows the distance from the toolholder to the cutting edge. Available Groove Depth: "B" Dimension of Insert. mark indicates short shank type Clamp Set KGBA&...LGBA-OORS for Right-hand Toolholder, and LGBA-OOLS for Left-hand Toolholder. KGBAS&...LGBA-OOLS for Right-hand Toolholder, and LGBA-OORS for Left-hand Toolholder. External Grooving Toolholders KGBA Short Shank types are available For NC lathe and HSK tooling, KGBAR2020K-OO (Overall length 125mm) short shank type KGBAR2020H22-OO (Overall length 100mm) is available. No longer required for the users to cut the shank portion. :Std. Item G9
