380 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.G24

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. G24 0380 Lab2u

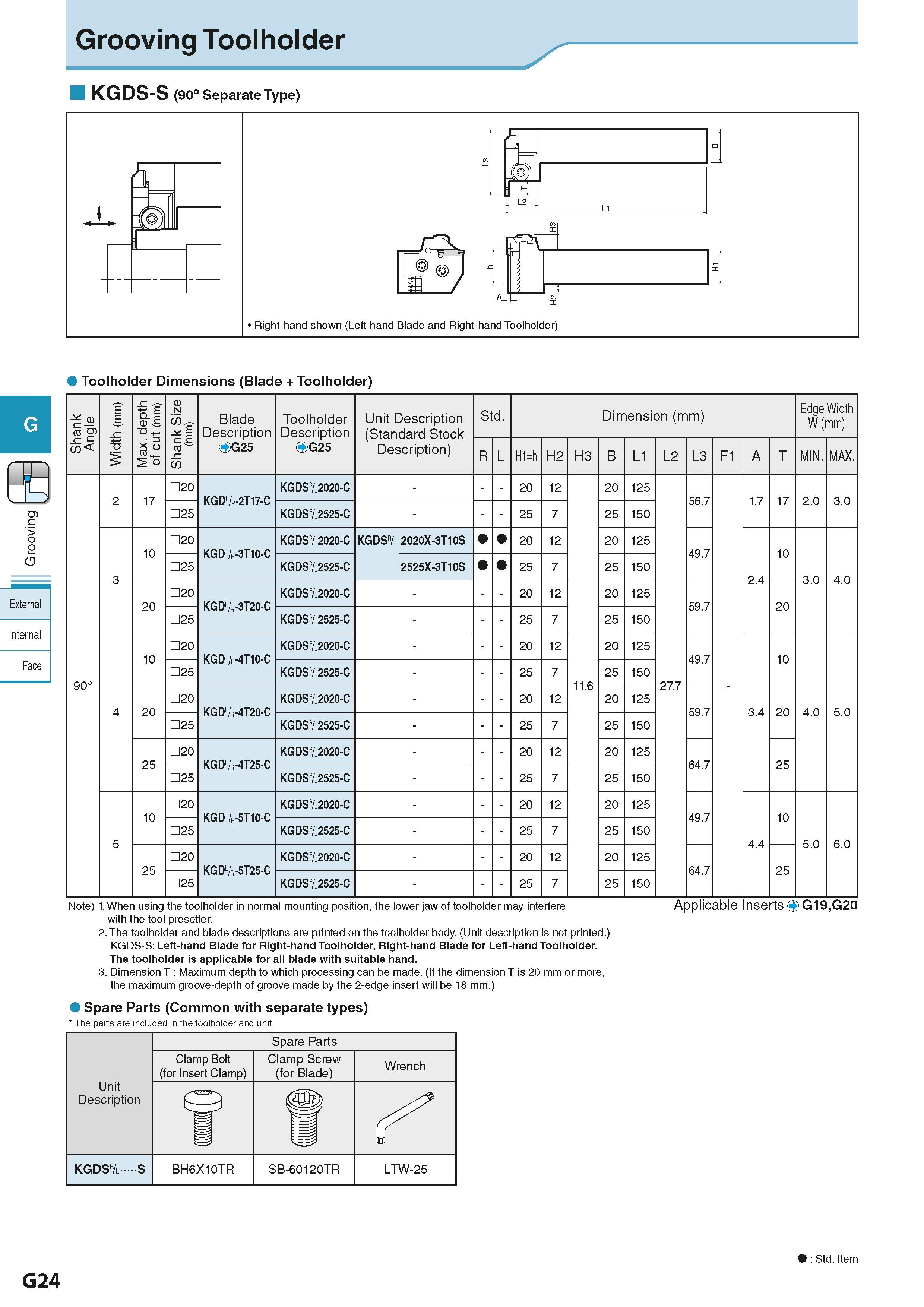

Grooving Toolholder KGDS-S (90° Separate Type) Toolholder Dimensions (Blade + Toolholder) Shank Angle Width (mm) Max. depth of cut (mm) Shank Size (mm) Blade Description OG25 Toolholder Description OG25 Unit Description (Standard Stock Description) Std. Dimension (mm) Размеры инструмента указаны в мм Edge Width W (mm) R L H1=h H2 H3 B L1 L2 L3 F1 A T MIN. MAX. 2 17 20 KGD/r-2T17-C KGDS&2020-C - 20 12 20 125 56.7 1.7 17 2.0 3.0 25 KGDS&2525-C - 25 7 25 150 10 20 KGD/r-3T10-C KGDS&2020-C KGDS& 2020X-3T10S 20 12 20 125 49.7 10 3 25 KGDS&2525-C 2525X-3T10S 25 7 25 150 2.4 3.0 4.0 20 20 KGD/r-3T20-C KGDS&2020-C - 20 12 20 125 59.7 20 25 KGDS&2525-C - 25 7 25 150 10 20 KGD/r-4T10-C KGDS&2020-C - 20 12 20 125 49.7 10 9 O 0 25 KGDS&2525-C - 25 7 11.6 25 150 277 4 20 20 KGD/r-4T20-C KGDS&2020-C - 20 12 20 125 59.7 3.4 20 4.0 5.0 25 KGDS&2525-C - 25 7 25 150 25 20 KGD/r-4T25-C KGDS&2020-C - 20 12 20 125 64.7 25 25 KGDS&2525-C - 25 7 25 150 10 20 KGD/r-5T10-C KGDS&2020-C - 20 12 20 125 49.7 10 5 25 KGDS&2525-C - 25 7 25 150 4.4 5.0 6.0 25 20 KGD/r-5T25-C KGDS&2020-C - 20 12 20 125 64.7 25 25 KGDS&2525-C - 25 7 25 150 External Internal Face Note) 1. When using the toolholder in normal mounting position, the lower jaw of toolholder may interfere Applicable Inserts O G19,G20 with the tool presetter. 2. The toolholder and blade descriptions are printed on the toolholder body. (Unit description is not printed.) KGDS-S: Left-hand Blade for Right-hand Toolholder, Right-hand Blade for Left-hand Toolholder. The toolholder is applicable for all blade with suitable hand. 3. Dimension T Maximum depth to which processing can be made. (If the dimension T is 20 mm or more, the maximum groove-depth of groove made by the 2-edge insert will be 18 mm.) Spare Parts (Common with separate types) The parts are included in the toolholder and unit. Unit Description Spare Parts Clamp Bolt (for Insert Clamp) Clamp Screw (for Blade) Wrench f u KGDS& S BH6X10TR SB-60120TR LTW-25 G24 Std. Item
