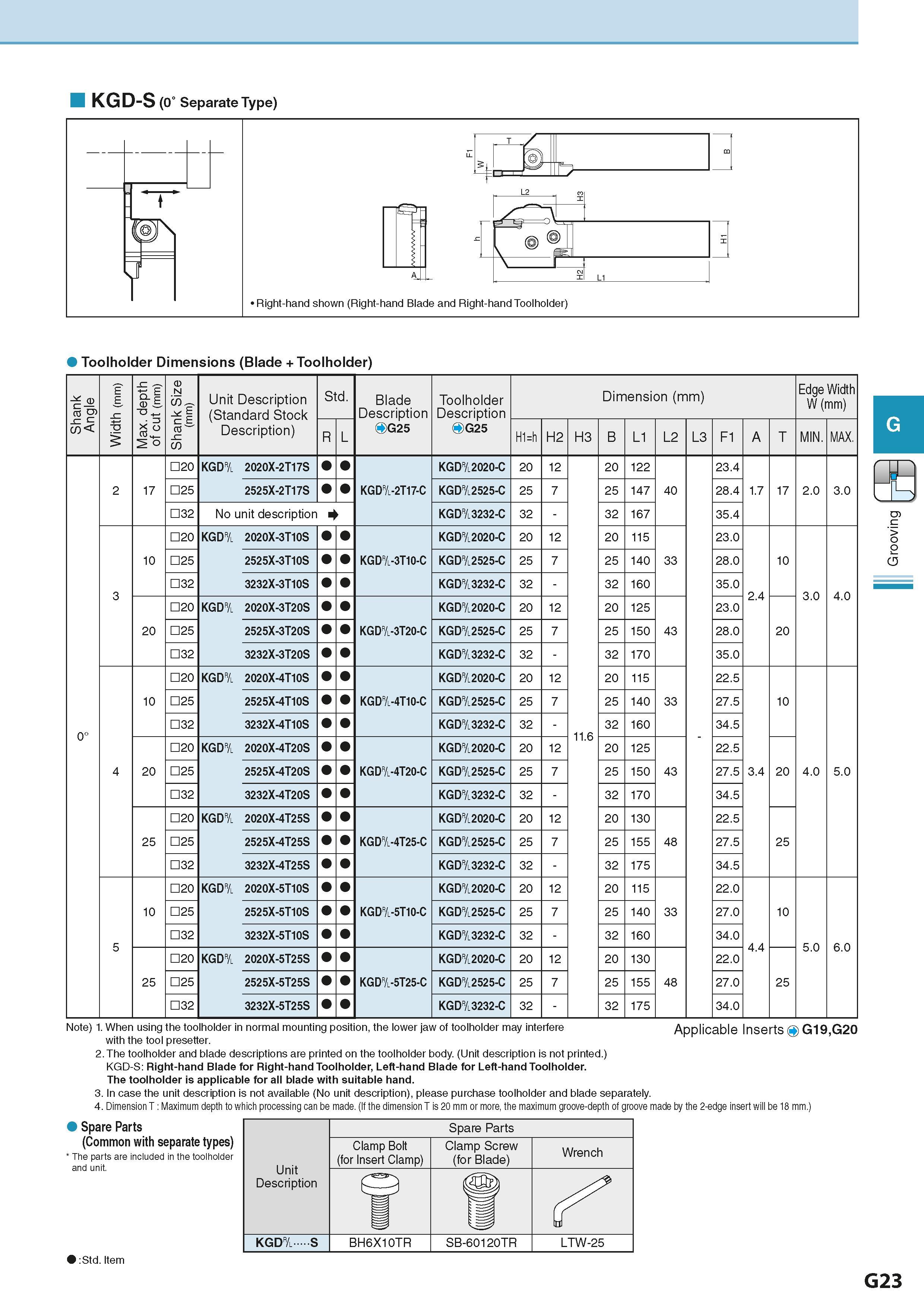

KGD-S (0° Separate Type) Toolholder Dimensions (Blade + Toolholder) Shank Angle Width (mm) Max. depth of cut (mm) Shank Size (mm) Unit Description (Standard Stock Description) Std. Blade Description OG25 Toolholder Description OG25 Dimension (mm) Размеры инструмента указаны в мм Edge Width W (mm) R L H1=h H2 H3 B L1 L2 L3 F1 A T MIN. MAX. 20 KGD& 2020X-2T17S KGD&2020-C 20 12 20 122 23.4 2 17 25 2525X-2T17S KGD&-2T17-C KGD&2525-C 25 7 25 147 40 28.4 1.7 17 2.0 3.0 32 No unit description 4 KGD&3232-C 32 - 32 167 35.4 20 KGD& 2020X-3T10S KGD&2020-C 20 12 20 115 23.0 10 25 2525X-3T10S KGD&-3T10-C KGD&2525-C 25 7 25 140 33 28.0 10 3 32 3232X-3T10S KGD&3232-C 32 - 32 160 35.0 2.4 3.0 4.0 20 KGD& 2020X-3T20S KGD&2020-C 20 12 20 125 23.0 20 25 2525X-3T20S KGD&-3T20-C KGD&2525-C 25 7 25 150 43 28.0 20 32 3232X-3T20S KGD&3232-C 32 - 32 170 35.0 20 KGD& 2020X-4T10S KGD&2020-C 20 12 20 115 22.5 10 25 2525X-4T10S KGD&-4T10-C KGD&2525-C 25 7 25 140 33 27.5 10 0° 32 3232X-4T10S KGD&3232-C 32 - 11.6 32 160 34.5 20 KGD& 2020X-4T20S KGD&2020-C 20 12 20 125 22.5 4 20 25 2525X-4T20S KGD&-4T20-C KGD&2525-C 25 7 25 150 43 27.5 3.4 20 4.0 5.0 32 3232X-4T20S KGD&3232-C 32 - 32 170 34.5 20 KGD& 2020X-4T25S KGD&2020-C 20 12 20 130 22.5 25 25 2525X-4T25S KGD&-4T25-C KGD&2525-C 25 7 25 155 48 27.5 25 32 3232X-4T25S KGD&3232-C 32 - 32 175 34.5 20 KGD& 2020X-5T10S KGD&2020-C 20 12 20 115 22.0 10 25 2525X-5T10S KGD&-5T10-C KGD&2525-C 25 7 25 140 33 27.0 10 5 32 3232X-5T10S KGD&3232-C 32 - 32 160 34.0 4.4 5.0 6.0 20 KGD& 2020X-5T25S KGD&2020-C 20 12 20 130 22.0 25 25 2525X-5T25S KGD&-5T25-C KGD&2525-C 25 7 25 155 48 27.0 25 32 3232X-5T25S KGD&3232-C 32 - 32 175 34.0 > CD Note) 1. When using the toolholder in normal mounting position, the lower jaw of toolholder may interfere Applicable Inserts G19,G20 with the tool presetter. 2. The toolholder and blade descriptions are printed on the toolholder body. (Unit description is not printed.) KGD-S: Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. The toolholder is applicable for all blade with suitable hand. 3. In case the unit description is not available (No unit description), please purchase toolholder and blade separately. 4. Dimension T Maximum depth to which processing can be made. (If the dimension T is 20 mm or more, the maximum groove-depth of groove made by the 2-edge insert will be 18 mm.) Spare Parts (Common with separate types) The parts are included in the toolholder and unit. Unit Description Spare Parts Clamp Bolt (for Insert Clamp) Clamp Screw (for Blade) Wrench f u KGD& S BH6X10TR SB-60120TR LTW-25 :Std. Item G23
