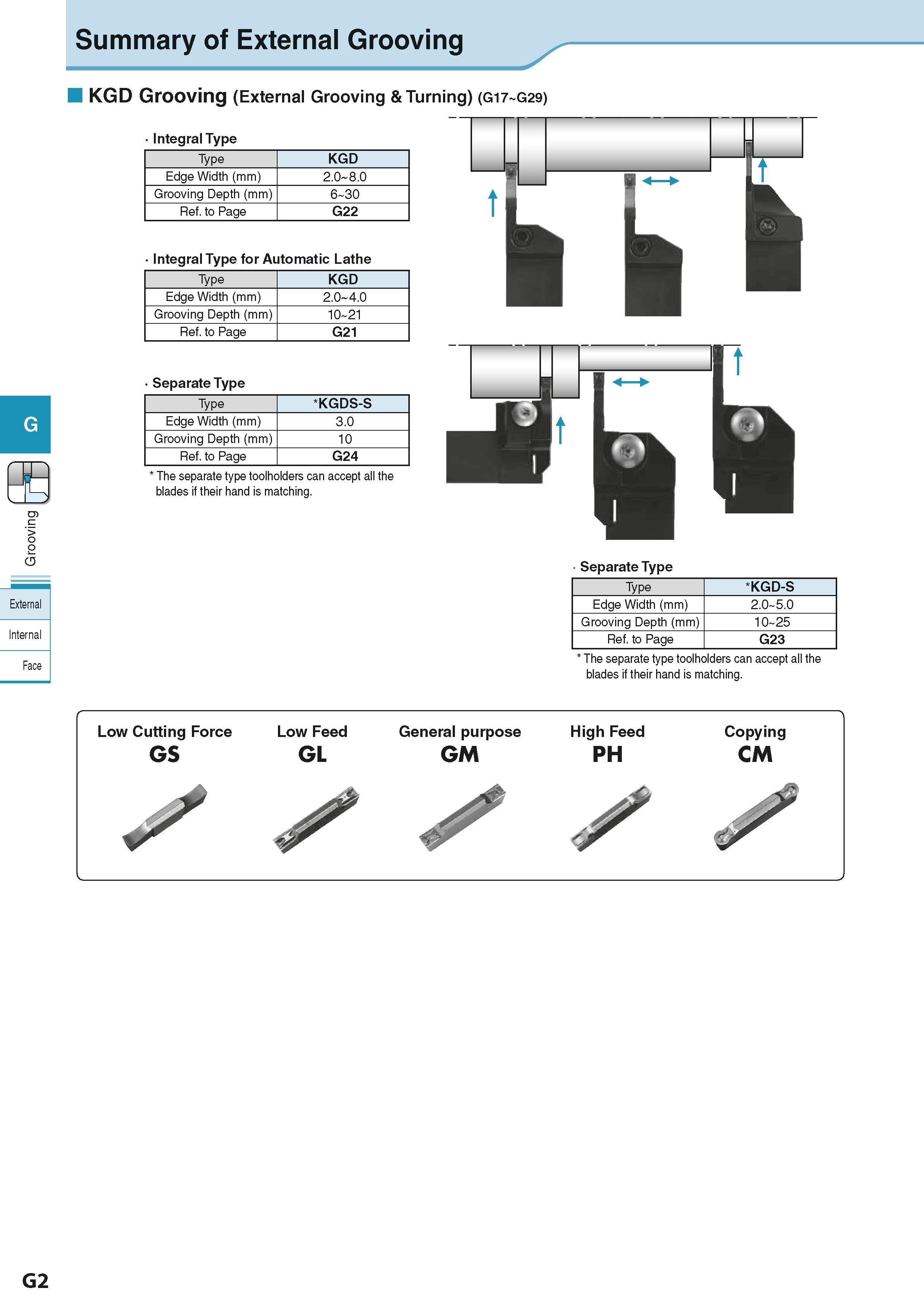

Summary of External Grooving KGD Grooving (External Grooving & Turning) (G17 G29) Integral Type Type KGD Edge Width (mm) 2.0 8.0 Grooving Depth (mm) 6 30 Ref. to Page G22 Integral Type for Automatic Lathe Separate Type Type KGD Edge Width (mm) 2.0 4.0 Grooving Depth (mm) 10 21 Ref. to Page G21 Type KGDS-S Edge Width (mm) 3.0 Grooving Depth (mm) 10 Ref. to Page G24 The separate type toolholders can accept all the blades if their hand is matching. External Internal Face Separate Type Type KGD-S Edge Width (mm) 2.0 5.0 Grooving Depth (mm) 10 25 Ref. to Page G23 The separate type toolholders can accept all the blades if their hand is matching. G Low Cutting Force Low Feed General purpose High Feed Copying GS GL GM PH CM G2
