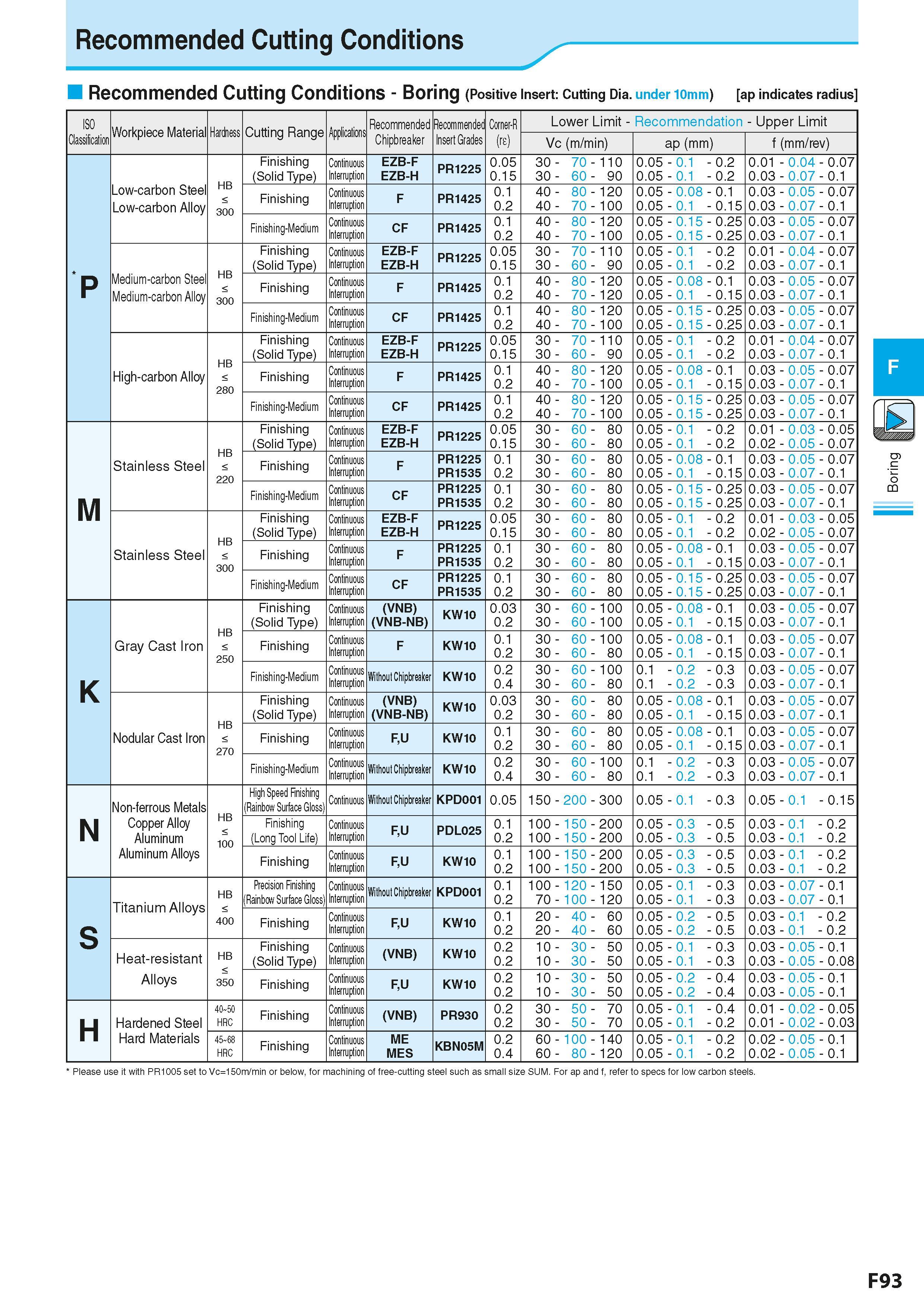

Recommended Cutting Conditions Recommended Cutting Conditions - Boring (Positive Insert: Cutting Dia. under 10mm) ap indicates radius ISO Classification Workpiece Material Hardness Cutting Range Applications Recommended Chipbreaker Recommendet Insert Grades Corner-R (re) Lower Limit - Recommendation - Upper Limit Vc (m/min) ap (mm) f (mm/rev) P Low-carbon Steel Low-carbon Alloy HB < 300 Finishing (Solid Type) Continuous Interruption EZB-F EZB-H PR1225 0.05 0.15 30 - 70 - 110 30 - 60 - 90 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 0.01 - 0.04 - 0.07 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F PR1425 0.1 0.2 40 - 80 - 120 40 - 70 - 100 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption CF PR1425 0.1 0.2 40 - 80 - 120 40 - 70 - 100 0.05 - 0.15 - 0.25 0.05 - 0.15 - 0.25 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Medium-carbon Steel Medium-carbon Alloy HB < 300 Finishing (Solid Type) Continuous Interruption EZB-F EZB-H PR1225 0.05 0.15 30 - 70 - 110 30 - 60 - 90 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 0.01 - 0.04 - 0.07 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F PR1425 0.1 0.2 40 - 80 - 120 40 - 70 - 120 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption CF PR1425 0.1 0.2 40 - 80 - 120 40 - 70 - 100 0.05 - 0.15 - 0.25 0.05 - 0.15 - 0.25 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 High-carbon Alloy HB < 280 Finishing (Solid Type) Continuous Interruption EZB-F EZB-H PR1225 0.05 0.15 30 - 70 - 110 30 - 60 - 90 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 0.01 - 0.04 - 0.07 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F PR1425 0.1 0.2 40 - 80 - 120 40 - 70 - 100 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption CF PR1425 0.1 0.2 40 - 80 - 120 40 - 70 - 100 0.05 - 0.15 - 0.25 0.05 - 0.15 - 0.25 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 M Stainless Steel HB < 220 Finishing (Solid Type) Continuous Interruption EZB-F EZB-H PR1225 0.05 0.15 30 - 60 - 80 30 - 60 - 80 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 0.01 - 0.03 - 0.05 0.02 - 0.05 - 0.07 Finishing Continuous Interruption F PR1225 PR1535 0.1 0.2 30 - 60 - 80 30 - 60 - 80 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption CF PR1225 PR1535 0.1 0.2 30 - 60 - 80 30 - 60 - 80 0.05 - 0.15 - 0.25 0.05 - 0.15 - 0.25 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Stainless Steel HB < 300 Finishing (Solid Type) Continuous Interruption EZB-F EZB-H PR1225 0.05 0.15 30 - 60 - 80 30 - 60 - 80 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 0.01 - 0.03 - 0.05 0.02 - 0.05 - 0.07 Finishing Continuous Interruption F PR1225 PR1535 0.1 0.2 30 - 60 - 80 30 - 60 - 80 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption CF PR1225 PR1535 0.1 0.2 30 - 60 - 80 30 - 60 - 80 0.05 - 0.15 - 0.25 0.05 - 0.15 - 0.25 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 K Gray Cast Iron HB < 250 Finishing (Solid Type) Continuous Interruption (VNB) (VNB-NB) KW10 0.03 0.2 30 - 60 - 100 30 - 60 - 100 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F KW10 0.1 0.2 30 - 60 - 100 30 - 60 - 80 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption Without Chipbreaker KW10 0.2 0.4 30 - 60 - 100 30 - 60 - 80 0.1 - 0.2 - 0.3 0.1 - 0.2 - 0.3 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Nodular Cast Iron HB < 270 Finishing (Solid Type) Continuous Interruption (VNB) (VNB-NB) KW10 0.03 0.2 30 - 60 - 80 30 - 60 - 80 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F,U KW10 0.1 0.2 30 - 60 - 80 30 - 60 - 80 0.05 - 0.08 - 0.1 0.05 - 0.1 - 0.15 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 Finishing-Medium Continuous Interruption Without Chipbreaker KW10 0.2 0.4 30 - 60 - 100 30 - 60 - 80 0.1 - 0.2 - 0.3 0.1 - 0.2 - 0.3 0.03 - 0.05 - 0.07 0.03 - 0.07 - 0.1 N Non-ferrous Metals Copper Alloy Aluminum Aluminum Alloys HB < 100 High Speed finishing (Rainbow Surface Gloss) Continuous Without Chipbreaker KPD001 0.05 150 - 200 - 300 0.05 - 0.1 - 0.3 0.05 - 0.1 - 0.15 Finishing (Long Tool Life) Continuous Interruption F,U PDL025 0.1 0.2 100 - 150 - 200 100 - 150 - 200 0.05 - 0.3 - 0.5 0.05 - 0.3 - 0.5 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 Finishing Continuous Interruption F,U KW10 0.1 0.2 100 - 150 - 200 100 - 150 - 200 0.05 - 0.3 - 0.5 0.05 - 0.3 - 0.5 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 S Titanium Alloys HB < 400 Precision Finishing (Rainbow Surface Gloss) Continuous Interruption Without Chipbreaker KPD001 0.1 0.2 100 - 120 - 150 70 - 100 - 120 0.05 - 0.1 - 0.3 0.05 - 0.1 - 0.3 0.03 - 0.07 - 0.1 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F,U KW10 0.1 0.2 20 - 40 - 60 20 - 40 - 60 0.05 - 0.2 - 0.5 0.05 - 0.2 - 0.5 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 Heat-resistant Alloys HB < 350 Finishing (Solid Type) Continuous Interruption (VNB) KW10 0.2 0.2 10 - 30 - 50 10 - 30 - 50 0.05 - 0.1 - 0.3 0.05 - 0.1 - 0.3 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.08 Finishing Continuous Interruption F,U KW10 0.2 0.2 10 - 30 - 50 10 - 30 - 50 0.05 - 0.2 - 0.4 0.05 - 0.2 - 0.4 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 H Hardened Steel Hard Materials 40 50 HRC Finishing Continuous Interruption (VNB) PR930 0.2 0.2 30 - 50 - 70 30 - 50 - 70 0.05 - 0.1 - 0.4 0.05 - 0.1 - 0.2 0.01 - 0.02 - 0.05 0.01 - 0.02 - 0.03 45 68 HRC Finishing Continuous Interruption ME MES KBN05M 0.2 0.4 60 - 100 - 140 60 - 80 - 120 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 0.02 - 0.05 - 0.1 0.02 - 0.05 - 0.1 Please use it with PR1005 set to Vc=150m/min or below, for machining of free-cutting steel such as small size SUM. For ap and f, refer to specs for low carbon steels. F93 Boring
