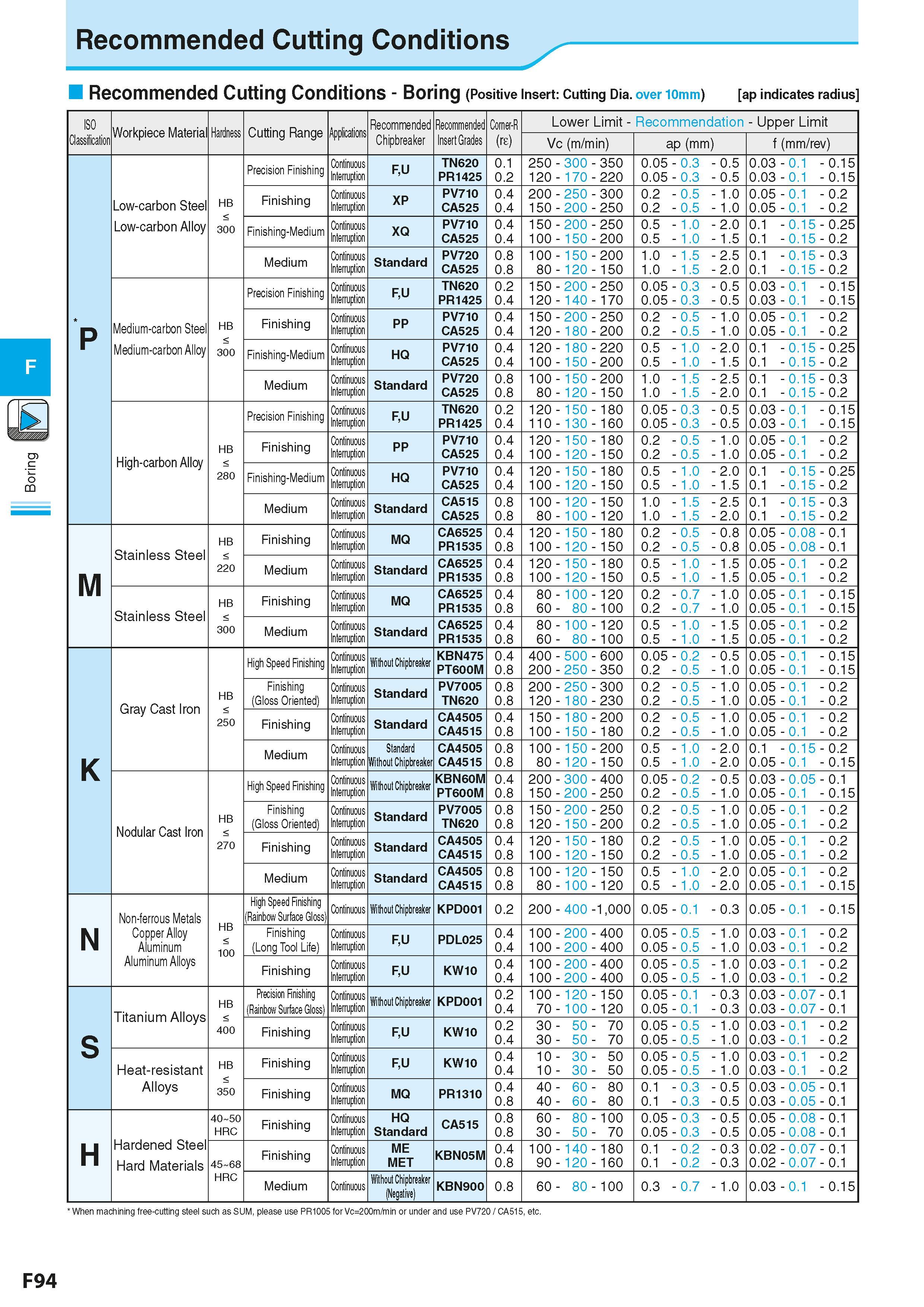

Boring Recommended Cutting Conditions I Recommended Cutting Conditions - Boring (Positive Insert: Cutting Dia. over 10mm) ap indicates radius ISO Classification Workpiece Material Hardness Cutting Range Applications Recommended Chipbreaker Recommended Insert Grades Corner-R (re) Lower Limit - Recommendation - Upper Limit Vc (m/min) ap (mm) f (mm/rev) P Low-carbon Steel Low-carbon Alloy HB < 300 Precision Finishing Continuous Interruption F,U TN620 PR1425 0.1 0.2 250 - 300 - 350 120 - 170 - 220 0.05 - 0.3 - 0.5 0.05 - 0.3 - 0.5 0.03 - 0.1 - 0.15 0.03 - 0.1 - 0.15 Finishing Continuous Interruption XP PV710 CA525 0.4 0.4 200 - 250 - 300 150 - 200 - 250 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing-Medium Continuous Interruption XQ PV710 CA525 0.4 0.4 150 - 200 - 250 100 - 150 - 200 0.5 - 1.0 - 2.0 0.5 - 1.0 - 1.5 0.1 - 0.15 - 0.25 0.1 - 0.15 - 0.2 Medium Continuous Interruption Standard PV720 CA525 0.8 0.8 100 - 150 - 200 80 - 120 - 150 1.0 - 1.5 - 2.5 1.0 - 1.5 - 2.0 0.1 - 0.15 - 0.3 0.1 - 0.15 - 0.2 Medium-carbon Steel Medium-carbon Alloy HB < 300 Precision Finishing Continuous Interruption F,U TN620 PR1425 0.2 0.4 150 - 200 - 250 120 - 140 - 170 0.05 - 0.3 - 0.5 0.05 - 0.3 - 0.5 0.03 - 0.1 - 0.15 0.03 - 0.1 - 0.15 Finishing Continuous Interruption PP PV710 CA525 0.4 0.4 150 - 200 - 250 120 - 180 - 200 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing-Medium Continuous Interruption HQ PV710 CA525 0.4 0.4 120 - 180 - 220 100 - 150 - 200 0.5 - 1.0 - 2.0 0.5 - 1.0 - 1.5 0.1 - 0.15 - 0.25 0.1 - 0.15 - 0.2 Medium Continuous Interruption Standard PV720 CA525 0.8 0.8 100 - 150 - 200 80 - 120 - 150 1.0 - 1.5 - 2.5 1.0 - 1.5 - 2.0 0.1 - 0.15 - 0.3 0.1 - 0.15 - 0.2 High-carbon Alloy HB < 280 Precision Finishing Continuous Interruption F,U TN620 PR1425 0.2 0.4 120 - 150 - 180 110 - 130 - 160 0.05 - 0.3 - 0.5 0.05 - 0.3 - 0.5 0.03 - 0.1 - 0.15 0.03 - 0.1 - 0.15 Finishing Continuous Interruption PP PV710 CA525 0.4 0.4 120 - 150 - 180 100 - 120 - 150 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing-Medium Continuous Interruption HQ PV710 CA525 0.4 0.4 120 - 150 - 180 100 - 120 - 150 0.5 - 1.0 - 2.0 0.5 - 1.0 - 1.5 0.1 - 0.15 - 0.25 0.1 - 0.15 - 0.2 Medium Continuous Interruption Standard CA515 CA525 0.8 0.8 100 - 120 - 150 80 - 100 - 120 1.0 - 1.5 - 2.5 1.0 - 1.5 - 2.0 0.1 - 0.15 - 0.3 0.1 - 0.15 - 0.2 M Stainless Steel HB < 220 Finishing Continuous Interruption MQ CA6525 PR1535 0.4 0.8 120 - 150 - 180 100 - 120 - 150 0.2 - 0.5 - 0.8 0.2 - 0.5 - 0.8 0.05 - 0.08 - 0.1 0.05 - 0.08 - 0.1 Medium Continuous Interruption Standard CA6525 PR1535 0.4 0.8 120 - 150 - 180 100 - 120 - 150 0.5 - 1.0 - 1.5 0.5 - 1.0 - 1.5 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Stainless Steel HB < 300 Finishing Continuous Interruption MQ CA6525 PR1535 0.4 0.8 80 - 100 - 120 60 - 80 - 100 0.2 - 0.7 - 1.0 0.2 - 0.7 - 1.0 0.05 - 0.1 - 0.15 0.05 - 0.1 - 0.15 Medium Continuous Interruption Standard CA6525 PR1535 0.4 0.8 80 - 100 - 120 60 - 80 - 100 0.5 - 1.0 - 1.5 0.5 - 1.0 - 1.5 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 K Gray Cast Iron HB < 250 High Speed Finishing Continuous Interruption Without Chipbreaker KBN475 PT600M 0.4 0.8 24 0 O 25 01 O 0 O 3 6 01 0 0 0 0.05 - 0.2 - 0.5 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.15 0.05 - 0.1 - 0.15 Finishing (Gloss Oriented) Continuous Interruption Standard PV7005 TN620 0.8 0.8 200 - 250 - 300 120 - 180 - 230 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing Continuous Interruption Standard CA4505 CA4515 0.4 0.8 150 - 180 - 200 100 - 150 - 180 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Medium Continuous Interruption Standard Without Chipbreaker CA4505 CA4515 0.8 0.8 100 - 150 - 200 80 - 120 - 150 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.1 - 0.15 - 0.2 0.05 - 0.1 - 0.15 Nodular Cast Iron HB < 270 High Speed Finishing Continuous Interruption Without Chipbreaker KBN60M PT600M 0.4 0.8 200 - 300 - 400 150 - 200 - 250 0.05 - 0.2 - 0.5 0.2 - 0.5 - 1.0 0.03 - 0.05 - 0.1 0.05 - 0.1 - 0.15 Finishing (Gloss Oriented) Continuous Interruption Standard PV7005 TN620 0.8 0.8 150 - 200 - 250 120 - 150 - 200 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing Continuous Interruption Standard CA4505 CA4515 0.4 0.8 120 - 150 - 180 100 - 120 - 150 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Medium Continuous Interruption Standard CA4505 CA4515 0.8 0.8 100 - 120 - 150 80 - 100 - 120 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.15 N Non-ferrous Metals Copper Alloy Aluminum Aluminum Alloys HB < 100 High Speed Finishing (Rainbow Surface Gloss) Continuous Without Chipbreaker KPD001 0.2 200 - 400 -1,000 0.05 - 0.1 - 0.3 0.05 - 0.1 - 0.15 Finishing (Long Tool Life) Continuous Interruption F,U PDL025 0.4 0.4 100 - 200 - 400 100 - 200 - 400 0.05 - 0.5 - 1.0 0.05 - 0.5 - 1.0 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 Finishing Continuous Interruption F,U KW10 0.4 0.4 100 - 200 - 400 100 - 200 - 400 0.05 - 0.5 - 1.0 0.05 - 0.5 - 1.0 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 S Titanium Alloys HB < 400 Precision finishing (Rainbow Surface Gloss) Continuous Interruption Without Chipbreaker KPD001 0.2 0.4 100 - 120 - 150 70 - 100 - 120 0.05 - 0.1 - 0.3 0.05 - 0.1 - 0.3 0.03 - 0.07 - 0.1 0.03 - 0.07 - 0.1 Finishing Continuous Interruption F,U KW10 0.2 0.4 30 - 50 - 70 30 - 50 - 70 0.05 - 0.5 - 1.0 0.05 - 0.5 - 1.0 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 Heat-resistant Alloys HB < 350 Finishing Continuous Interruption F,U KW10 0.4 0.4 10 - 30 - 50 10 - 30 - 50 0.05 - 0.5 - 1.0 0.05 - 0.5 - 1.0 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 Finishing Continuous Interruption MQ PR1310 0.4 0.8 40 - 60 - 80 40 - 60 - 80 0.1 - 0.3 - 0.5 0.1 - 0.3 - 0.5 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 H Hardened Steel Hard Materials 40 50 HRC Finishing Continuous Interruption HQ Standard CA515 0.8 0.8 60 - 80 - 100 30 - 50 - 70 0.05 - 0.3 - 0.5 0.05 - 0.3 - 0.5 0.05 - 0.08 - 0.1 0.05 - 0.08 - 0.1 45 68 HRC Finishing Continuous Interruption ME MET KBN05M 0.4 0.8 100 - 140 - 180 90 - 120 - 160 0.1 - 0.2 - 0.3 0.1 - 0.2 - 0.3 0.02 - 0.07 - 0.1 0.02 - 0.07 - 0.1 Medium Continuous Without Chipbreaker (Negative) KBN900 0.8 60 - 80 - 100 0.3 - 0.7 - 1.0 0.03 - 0.1 - 0.15 When machining free-cutting steel such as SUM, please use PR1005 for Vc=200m/min or under and use PV720 / CA515, etc. F94
