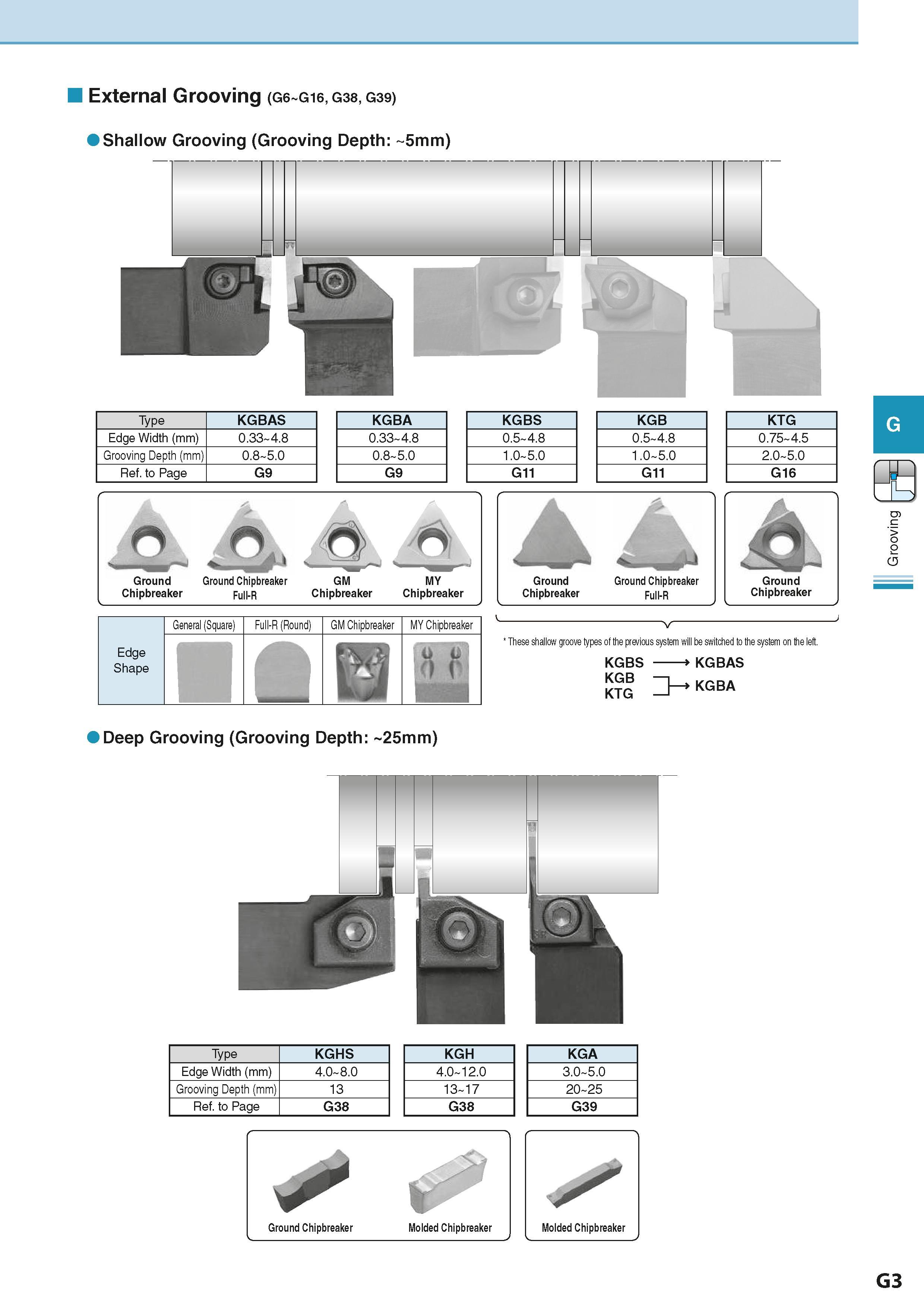

External Grooving (G6 G16, G38, G39) Shallow Grooving (Grooving Depth: 5mm) Type KGBAS Edge Width (mm) 0.33 4.8 Grooving Depth (mm) 0.8 5.0 Ref. to Page G9 Ground Chipbreaker Ground Chipbreaker Full-R GM Chipbreaker MY Chipbreaker Ground Chipbreaker Ground Chipbreaker Full-R General (Square) Full-R (Round) GM Chipbreaker MY Chipbreaker KTG 0.75 4.5 2.0 5.0 G16 Ground Chipbreaker These shallow groove types of the previous system will be switched to the system on the left. KGBS KGB KTG > <5 Deep Grooving (Grooving Depth: 25mm) Type KGHS Edge Width (mm) 4.0 8.0 Grooving Depth (mm) 13 Ref. to Page G38 KGH 4.0 12.0 13 17 G38 KGA 3.0 5.0 20 25 G39 G3
