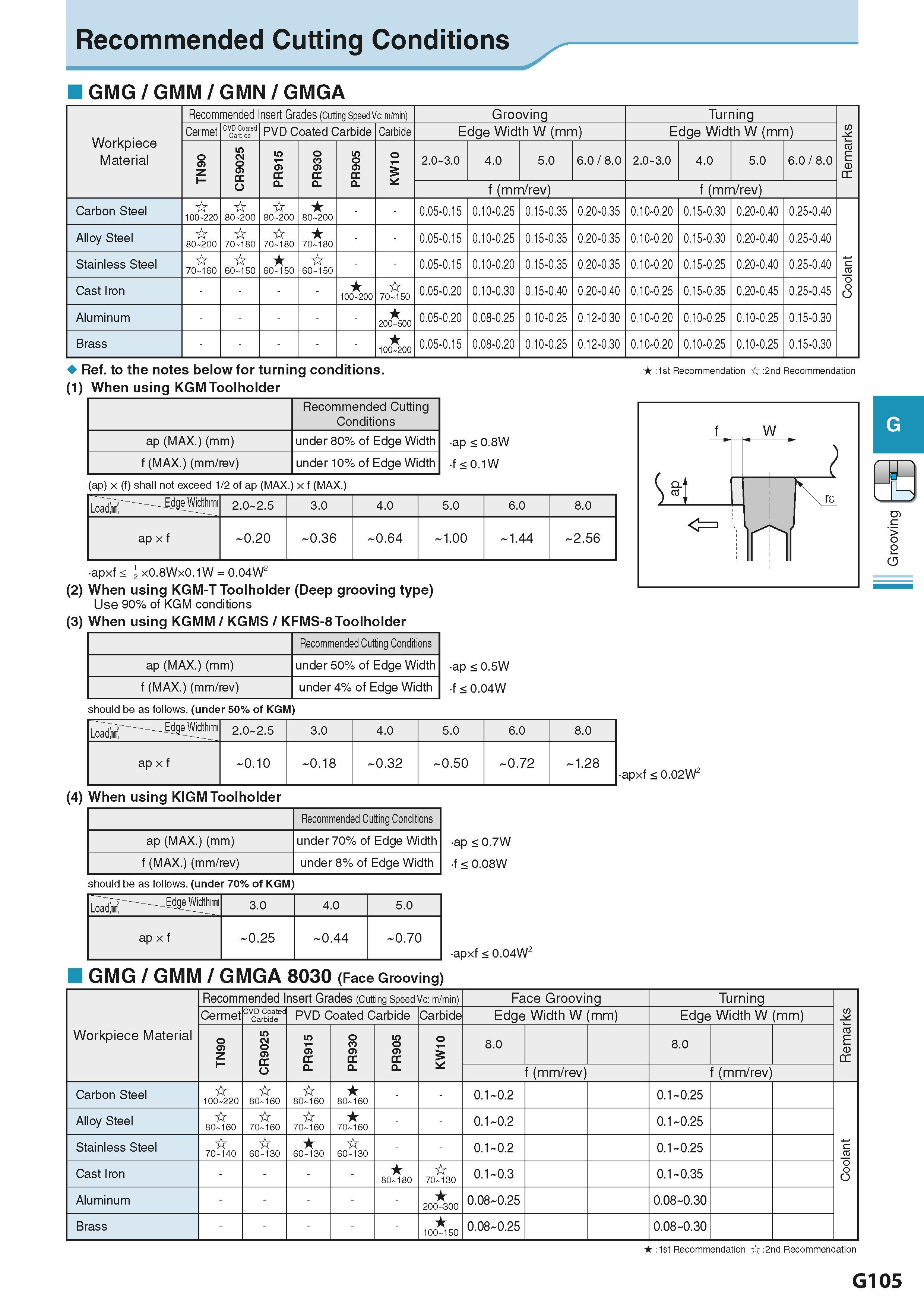

Recommended Cutting Conditions GMG/GMM/GMN/GMGA Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) Grooving Turning Remarks Cermet CVD Coated Carbide PVD Coated Carbide Carbide Edge Width W (mm) Edge Width W (mm) TN90 CR9025 PR915 PR930 PR905 KW10 2.0-3.0 4.0 5.0 6.0 / 8.0 2.0-3.0 4.0 5.0 6.0 / 8.0 f (mm/rev) f (mm/rev) Carbon Steel 100-220 80-200 80-200 80-200 0.05-0.15 0.10-0.25 0.15-0.35 0.20-0.35 0.10-0.20 0.15-0.30 0.20-0.40 0.25-0.40 Coolant Alloy Steel 80-200 70-180 70-180 70-180 0.05-0.15 0.10-0.25 0.15-0.35 0.20-0.35 0.10-0.20 0.15-0.30 0.20-0.40 0.25-0.40 Stainless Steel 70-160 60-150 60-150 60-150 0.05-0.15 0.10-0.20 0.15-0.35 0.20-0.35 0.10-0.20 0.15-0.25 0.20-0.40 0.25-0.40 Cast Iron 100-200 70-150 0.05-0.20 0.10-0.30 0.15-0.40 0.20-0.40 0.10-0.25 0.15-0.35 0.20-0.45 0.25-0.45 Aluminum 200-500 0.05-0.20 0.08-0.25 0.10-0.25 0.12-0.30 0.10-0.20 0.10-0.25 0.10-0.25 0.15-0.30 Brass 100-200 0.05-0.15 0.08-0.20 0.10-0.25 0.12-0.30 0.10-0.20 0.10-0.25 0.10-0.25 0.15-0.30 Ref. to the notes below for turning conditions. (1) When using KGM Toolholder :1st Recommendation :2nd Recommendation Recommended Cutting Conditions ap (MAX.) (mm) under 80% of Edge Width f (MAX.) (mm/rev) under 10% of Edge Width ap < 0.8W f < 0.1W (ap) x (f) shall not exceed 1/2 of ap (MAX.) x f (MAX.) apxf < nrx0.8Wx0.1W = 0.04W2 (2) When using KGM-T Toolholder (Deep grooving type) Use 90% of KGM conditions (3) When using KGMM / KGMS / KFMS-8 Toolholder LoadM EdgeWdhli) 2.0-2.5 3.0 4.0 5.0 6.0 8.0 ap x f -0.20 -0.36 -0.64 -1.00 -1.44 -2.56 f W 1 <£ Irh V\ rs > <5 Recommended Cutting Conditions ap (MAX.) (mm) under 50% of Edge Width f (MAX.) (mm/rev) under 4% of Edge Width should be as follows. (under 50% of KGM) LoadM EdSeWidth i) 2.0-2.5 3.0 4.0 5.0 6.0 8.0 ap x f -0.10 -0.18 -0.32 -0.50 -0.72 -1.28 (4) When using KIGM Toolholder Recommended Cutting Conditions ap (MAX.) (mm) under 70% of Edge Width f (MAX.) (mm/rev) under 8% of Edge Width ap < 0.7W f < 0.08W should be as follows. (under 70% of KGM) apxf < 0.02W2 LoadbT Edae Wdth mm'1 3.0 4.0 5.0 ap x f -0.25 -0.44 -0.70 apxf < 0.04W2 GMG / GMM / GMGA 8030 (Face Grooving) Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) Face Grooving Turning Remarks Cermet CVD Coatee Carbide PVD Coated Carbide Carbide Edge Width W (mm) Edge Width W (mm) TN90 CR9025 PR915 PR930 PR905 KW10 8.0 8.0 f (mm/rev) f (mm/rev) Carbon Steel 100-220 80-160 80-160 80-160 0. - 2 0.1-0.25 Coolant Alloy Steel 80-160 70-160 70-160 70-160 0. - 2 0.1-0.25 Stainless Steel 70-140 60-130 60-130 60-130 0. - 2 0.1-0.25 Cast Iron 80-180 70-130 0. - . 3 0.1-0.35 Aluminum 200-300 0.08-0.25 0.08-0.30 Brass 100-150 0.08-0.25 0.08-0.30 :1st Recommendation :2nd Recommendation G105
