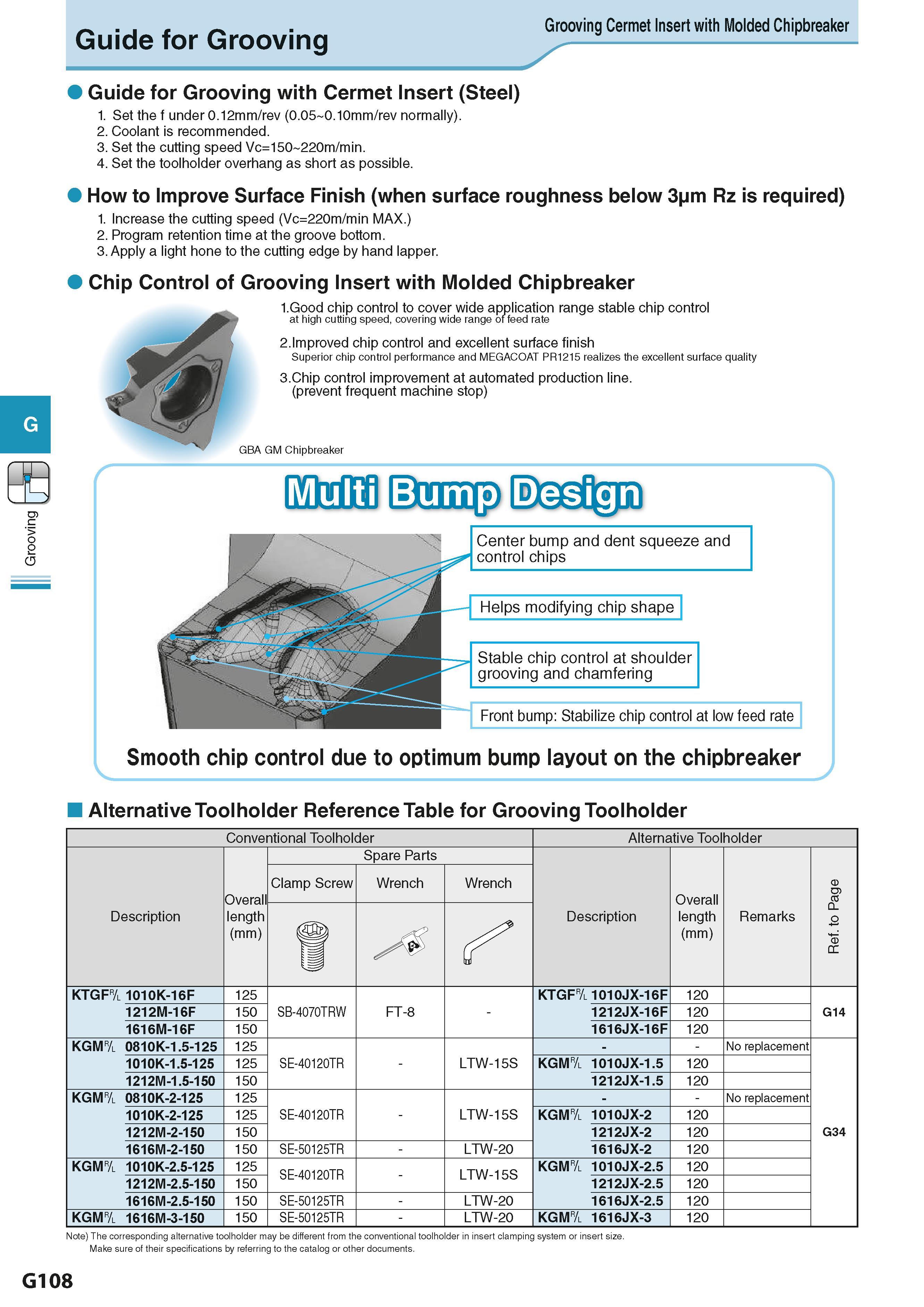

Grooving Guide for Grooving Grooving Cermet Insert with Molded Chipbreaker Guide for Grooving with Cermet Insert (Steel) 1. Set the f under 0.12mm/rev (0.05 0.10mm/rev normally). 2. Coolant is recommended. 3. Set the cutting speed Vc=150 220m/min. 4. Set the toolholder overhang as short as possible. How to Improve Surface Finish (when surface roughness below 3pm Rz is required) 1. Increase the cutting speed (Vc=220m/min MAX.) 2. Program retention time at the groove bottom. 3. Apply a light hone to the cutting edge by hand lapper. Chip Control of Grooving Insert with Molded Chipbreaker "I.Good chip control to cover wide application range stable chip control at high cutting speed, covering wide range of feed rate 2.Improved chip control and excellent surface finish Superior chip control performance and MEGACOAT PR1215 realizes the excellent surface quality 3.Chip control improvement at automated production line. (prevent frequent machine stop) GBA GM Chipbreaker Smooth chip control due to optimum bump layout on the chipbreaker Alternative Toolholder Reference Table for Grooving Toolholder Conventional Toolholder Alternative Toolholder Description Overall length (mm) Spare Parts Description Overall length (mm) Remarks Ref. to Page Clamp Screw Wrench Wrench u KTGF& 1010K-16F 125 SB-4070TRW FT-8 - KTGF& 1010JX-16F 120 G14 1212M-16F 150 1212JX-16F 120 1616M-16F 150 1616JX-16F 120 KGM& LO 2 - LO - K 10 00 0 125 SE-40120TR - LTW-15S No replacement G34 1010K-1.5-125 125 KGM& 1010JX-1.5 120 1212M-1.5-150 150 1212JX-1.5 120 KGM& 0810K-2-125 125 SE-40120TR - LTW-15S No replacement 1010K-2-125 125 KGM& 1010JX-2 120 1212M-2-150 150 1212JX-2 120 1616M-2-150 150 SE-50125TR - LTW-20 1616JX-2 120 KGM& 1010K-2.5-125 125 SE-40120TR - LTW-15S KGM& 1010JX-2.5 120 1212M-2.5-150 150 1212JX-2.5 120 1616M-2.5-150 150 SE-50125TR - LTW-20 1616JX-2.5 120 KGM& 1616M-3-150 150 SE-50125TR - LTW-20 KGM& 1616JX-3 120 Note) The corresponding alternative toolholder may be different from the conventional toolholder in insert clamping system or insert size. Make sure of their specifications by referring to the catalog or other documents. G108
