466 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.H2

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. H2 0466 Lab2u

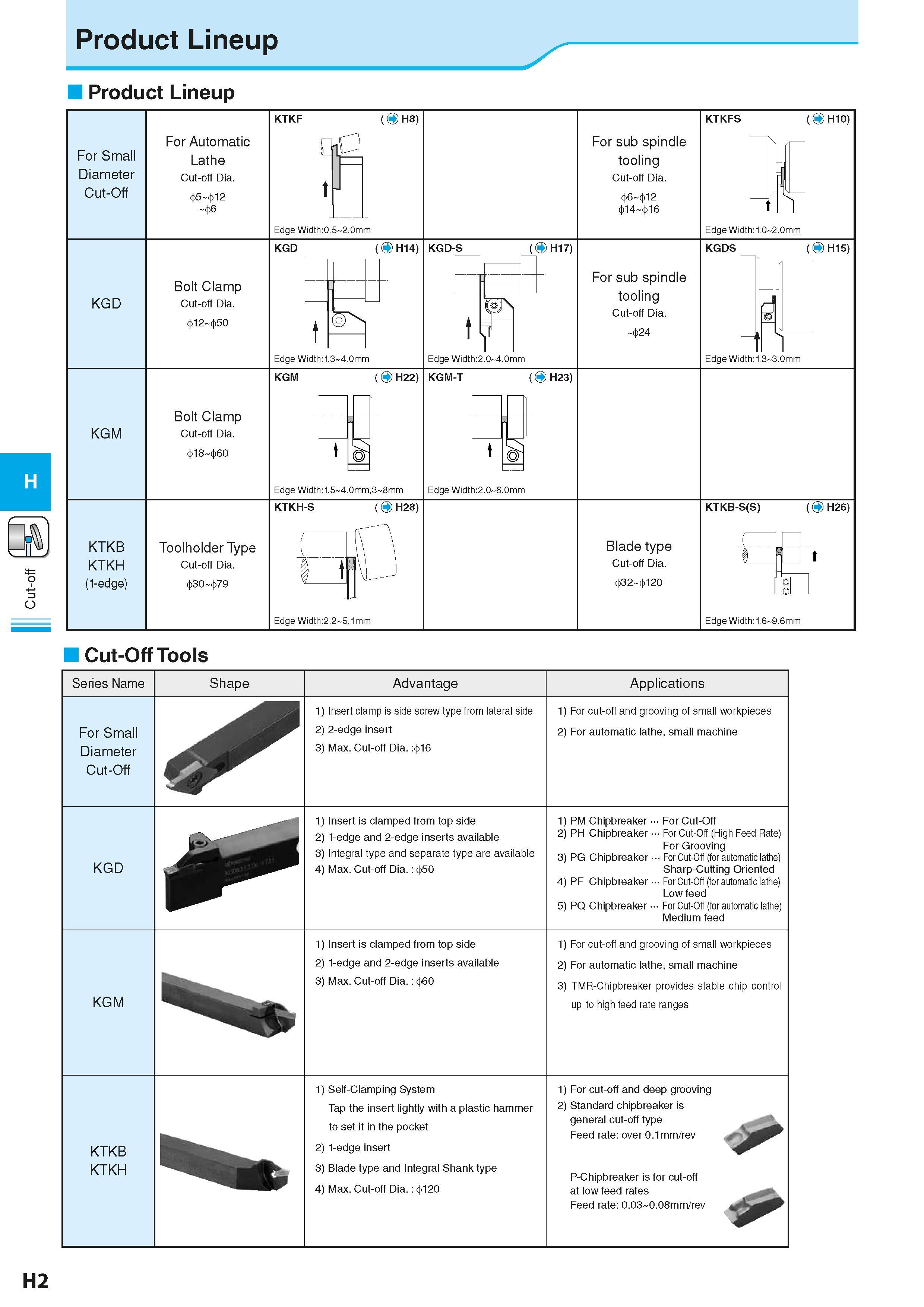

Cut-off Product Lineup Product Lineup For Small Diameter Cut-Off For Automatic Lathe Cut-off Dia. 4>5 12 4>6 KTKF (O H8) Qi t Edge Width:0.5 2.0mm For sub spindle tooling Cut-off Dia. 6 4>12 4>14 16 KTKFS (O H10) Edge Width:1.0 2.0mm KGD (C H14) KGD Bolt Clamp Cut-off Dia. 4>12 50 KGDS (O H15) For sub spindle tooling Cut-off Dia. 424 Edge Width:1.3 4.0mm Edge Width:2.0 4.0mm Edge Width:1.3 3.0mm KGM (C H22) KGM-T (C H23) KGM Bolt Clamp Cut-off Dia. 4>18 60 a a Edge Width:1.5 4.0mm,3 8mm Edge Width:2.0-6.0mm KTKH-S (O H28) KTKB-S(S) (4 H26) KTKB KTKH (1-edge) Toolholder Type Cut-off Dia. 4>30 4)79 Blade type Cut-off Dia. 4>32 4>120 Edge Width:1.6 9.6mm Cut-Off Tools Series Name Shape Advantage Applications For Small Diameter Cut-Off 1) Insert clamp is side screw type from lateral side 2) 2-edge insert 3) Max. Cut-off Dia. :i)>16 1) For cut-off and grooving of small workpieces 2) For automatic lathe, small machine KGD 1) Insert is clamped from top side 2) 1-edge and 2-edge inserts available 3) Integral type and separate type are available 4) Max. Cut-off Dia. 50 1) PM Chipbreaker For Cut-Off 2) PH Chipbreaker For Cut-Off (High Feed Rate) For Grooving 3) PG Chipbreaker For Cut-Off (for automatic lathe) Sharp-Cutting Oriented 4) PF Chipbreaker For Cut-Off (for automatic lathe) Low feed 5) PQ Chipbreaker For Cut-Off (for automatic lathe) Medium feed KGM 1) Insert is clamped from top side 2) 1-edge and 2-edge inserts available 3) Max. Cut-off Dia. 60 1) For cut-off and grooving of small workpieces 2) For automatic lathe, small machine 3) TMR-Chipbreaker provides stable chip control up to high feed rate ranges KTKB KTKH 1) Self-Clamping System Tap the insert lightly with a plastic hammer to set it in the pocket 2) 1-edge insert 3) Blade type and Integral Shank type 4) Max. Cut-off Dia. i)>120 1) For cut-off and deep grooving 2) Standard chipbreaker is general cut-off type Feed rate: over 0.1 mm/rev P-Chipbreaker is for cut-off at low feed rates Feed rate: 0.03 0.08mm/rev H2
