458 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.G102

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. G102 0458 Lab2u

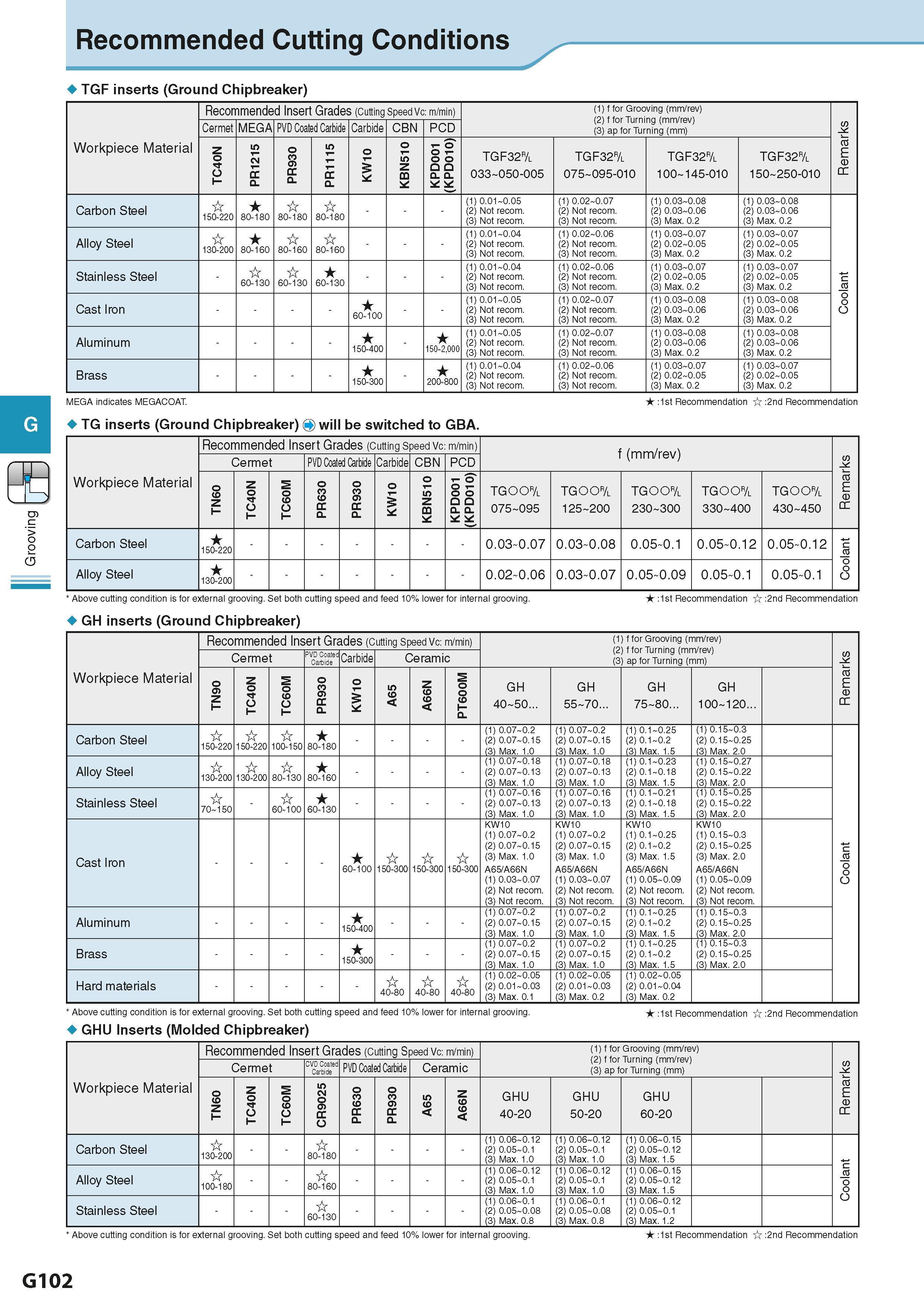

Grooving Recommended Cutting Conditions TGF inserts (Ground Chipbreaker) Recommended Insert Grades (Cutting Speed Vc: m/min) (1) f for Grooving (mm/rev) (2) f for Turning (mm/rev) (3) ap for Turning (mm) Cermet MEGA PVD Coated Carbide Carbide CBN PCD J2 ar m 0 oc Workpiece Material z 1- in CC CL o Q CC CL U) CC CL o o LO z CD i- o O i- CL CL TGF32& TGF32& TGF32& TGF32& 033-050-005 075-095-010 100-145-010 150-250-010 Carbon Steel 150-220 80-180 80-180 80-180 (1) 0.01-0.05 (2) Not recom. (3) Not recom. (1) 0.02-0.07 (2) Not recom. (3) Not recom. (1) 0.03-0.08 (2) 0.03-0.06 (3) Max. 0.2 (1) 0.03-0.08 (2) 0.03-0.06 (3) Max. 0.2 Alloy Steel 130-200 80-160 80-160 80-160 (1) 0.01-0.04 (2) Not recom. (3) Not recom. (1) 0.02-0.06 (2) Not recom. (3) Not recom. (1) 0.03-0.07 (2) 0.02-0.05 (3) Max. 0.2 (1) 0.03-0.07 (2) 0.02-0.05 (3) Max. 0.2 Stainless Steel 60-130 60-130 60-130 (1) 0.01-0.04 (2) Not recom. (3) Not recom. (1) 0.02-0.06 (2) Not recom. (3) Not recom. (1) 0.03-0.07 (2) 0.02-0.05 (3) Max. 0.2 (1) 0.03-0.07 (2) 0.02-0.05 (3) Max. 0.2 c la ol o O Cast Iron 60-100 (1) 0.01-0.05 (2) Not recom. (3) Not recom. (1) 0.02-0.07 (2) Not recom. (3) Not recom. (1) 0.03-0.08 (2) 0.03-0.06 (3) Max. 0.2 (1) 0.03-0.08 (2) 0.03-0.06 (3) Max. 0.2 Aluminum 150-400 150-2,000 (1) 0.01-0.05 (2) Not recom. (3) Not recom. (1) 0.02-0.07 (2) Not recom. (3) Not recom. (1) 0.03-0.08 (2) 0.03-0.06 (3) Max. 0.2 (1) 0.03-0.08 (2) 0.03-0.06 (3) Max. 0.2 Brass 150-300 200-800 (1) 0.01-0.04 (2) Not recom. (3) Not recom. (1) 0.02-0.06 (2) Not recom. (3) Not recom. (1) 0.03-0.07 (2) 0.02-0.05 (3) Max. 0.2 (1) 0.03-0.07 (2) 0.02-0.05 (3) Max. 0.2 MEGA indicates MEGACOAT :1st Recommendation :2nd Recommendation TG inserts (Ground Chipbreaker) 4 will be switched to GBA. Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) f (mm/rev) Remarks Cermet PVD Coated Carbide Carbide CBN PCD TN60 TC40N TC60M PR630 PR930 KW10 KBN510 KPD001 (KPD010) TGOO& 075-095 TGOO& 125-200 TGOO& 230-300 TGOO& 330-400 TGOO& 430-450 Carbon Steel 150-220 0.03-0.07 0.03-0.08 0.05-0.1 0.05-0.12 0.05-0.12 Coolant Alloy Steel 130-200 0.02-0.06 0.03-0.07 0.05-0.09 0.05-0.1 0.05-0.1 Above cutting condition is for external grooving. Set both cutting speed and feed 10% lower for internal grooving. GH inserts (Ground Chipbreaker) :1st Recommendation :2nd Recommendation Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) (1) f for Grooving (mm/rev) (2) f for Turning (mm/rev) (3) ap for Turning (mm) Remarks Cermet PVD Coatee Carbide Carbide Ceramic 0 at z T N 0 C T M 0 <0 C T 0 3 Q CC P 0 1 £ K 5 <0 < N <0 <0 < S 0 O <0 T P GH 40-50... GH 55-70... GH 75-80... GH 100-120... Carbon Steel 150-220 150-220 100-150 80-180 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 (1) 0.1-0.25 (2) 0.1-0.2 (3) Max. 1.5 (1) 0.15-0.3 (2) 0.15-0.25 (3) Max. 2.0 nt la O o C Alloy Steel 130-200 130-200 80-130 80-160 (1) 0.07-0.18 (2) 0.07-0.13 (3) Max. 1.0 (1) 0.07-0.18 (2) 0.07-0.13 (3) Max. 1.0 (1) 0.1-0.23 (2) 0.1-0.18 (3) Max. 1.5 (1) 0.15-0.27 (2) 0.15-0.22 (3) Max. 2.0 Stainless Steel 70-150 60-100 60-130 (1) 0.07-0.16 (2) 0.07-0.13 (3) Max. 1.0 (1) 0.07-0.16 (2) 0.07-0.13 (3) Max. 1.0 (1) 0.1-0.21 (2) 0.1-0.18 (3) Max. 1.5 (1) 0.15-0.25 (2) 0.15-0.22 (3) Max. 2.0 Cast Iron 60-100 150-300 150-300 150-300 KW10 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 A65/A66N (1) 0.03-0.07 (2) Not recom. (3) Not recom. KW10 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 A65/A66N (1) 0.03-0.07 (2) Not recom. (3) Not recom. KW10 (1) 0.1-0.25 (2) 0.1-0.2 (3) Max. 1.5 A65/A66N (1) 0.05-0.09 (2) Not recom. (3) Not recom. KW10 (1) 0.15-0.3 (2) 0.15-0.25 (3) Max. 2.0 A65/A66N (1) 0.05-0.09 (2) Not recom. (3) Not recom. Aluminum 150-400 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 (1) 0.1-0.25 (2) 0.1-0.2 (3) Max. 1.5 (1) 0.15-0.3 (2) 0.15-0.25 (3) Max. 2.0 Brass 150-300 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 (1) 0.07-0.2 (2) 0.07-0.15 (3) Max. 1.0 (1) 0.1-0.25 (2) 0.1-0.2 (3) Max. 1.5 (1) 0.15-0.3 (2) 0.15-0.25 (3) Max. 2.0 Hard materials 40-80 40-80 40-80 (1) 0.02-0.05 (2) 0.01-0.03 (3) Max. 0.1 (1) 0.02-0.05 (2) 0.01-0.03 (3) Max. 0.2 (1) 0.02-0.05 (2) 0.01-0.04 (3) Max. 0.2 Above cutting condition is for external grooving. Set both cutting speed and feed 10% lower for internal grooving. GHU Inserts (Molded Chipbreaker) :1st Recommendation :2nd Recommendation Workpiece Material Recommended Insert Grades (Cutting Speed Vc: m/min) (1) f for Grooving (mm/rev) (2) f for Turning (mm/rev) (3) ap for Turning (mm) Remarks Cermet CVD Coatee Carbide PVD Coated Carbide Ceramic 0 6 z T N 0 C T M 0 <0 C T 5 CJ 0 Q CC C 0 3 <0 CC P 0 3 Q CC P 5 <0 < z <0 <0 < GHU 40-20 GHU 50-20 GHU 60-20 Carbon Steel 130-200 80-180 (1) 0.06-0.12 (2) 0.05-0.1 (3) Max. 1.0 (1) 0.06-0.12 (2) 0.05-0.1 (3) Max. 1.0 (1) 0.06-0.15 (2) 0.05-0.12 (3) Max. 1.5 nt la O o C Alloy Steel 100-180 80-160 (1) 0.06-0.12 (2) 0.05-0.1 (3) Max. 1.0 (1) 0.06-0.12 (2) 0.05-0.1 (3) Max. 1.0 (1) 0.06-0.15 (2) 0.05-0.12 (3) Max. 1.5 Stainless Steel 60-130 (1) 0.06-0.1 (2) 0.05-0.08 (3) Max. 0.8 (1) 0.06-0.1 (2) 0.05-0.08 (3) Max. 0.8 (1) 0.06-0.12 (2) 0.05-0.1 (3) Max. 1.2 Above cutting condition is for external grooving. Set both cutting speed and feed 10% lower for internal grooving. :1st Recommendation :2nd Recommendation G102
